Agilent Technologies Infiniium 80000 Series User Manual

Chapter 6: Replacing Assemblies
To remove and replace the hard disk drive
127

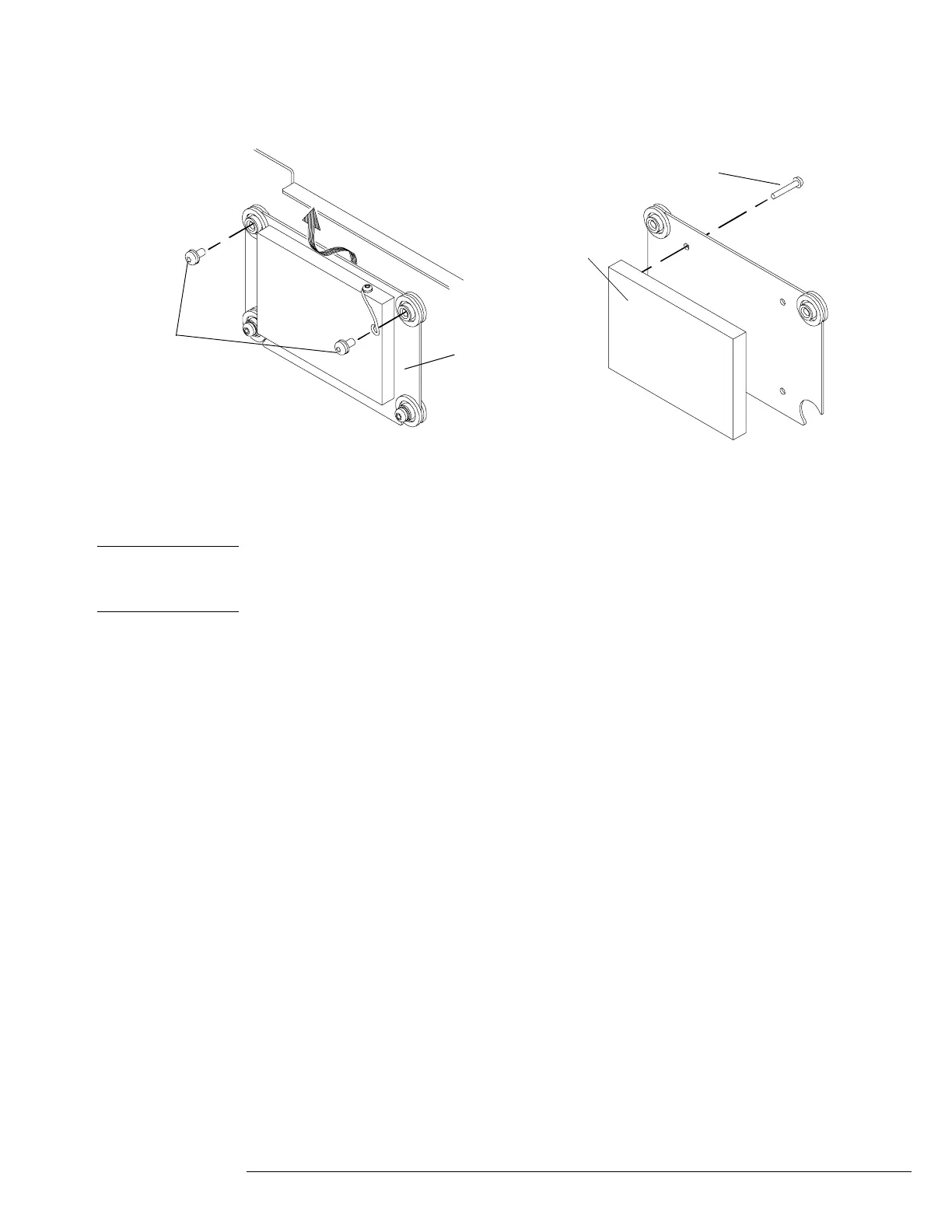

Figure 6-25
Removing the hard disk drive
6 To replace the hard disk drive, reverse the above procedure.
Be sure to reconnect the hard drive ground cable to the upper-right shock mount screw.
CAUTION DO NOT OVER TIGHTEN THE SCREWS!
Do not overtighten the Torx T10 screws that secure the Hard Disk Drive to the bracket. Torque
to 3 in-lb.
T20
screws
Hard disk drive
Shock
mount
plate
T10 screw
