存放
Storage

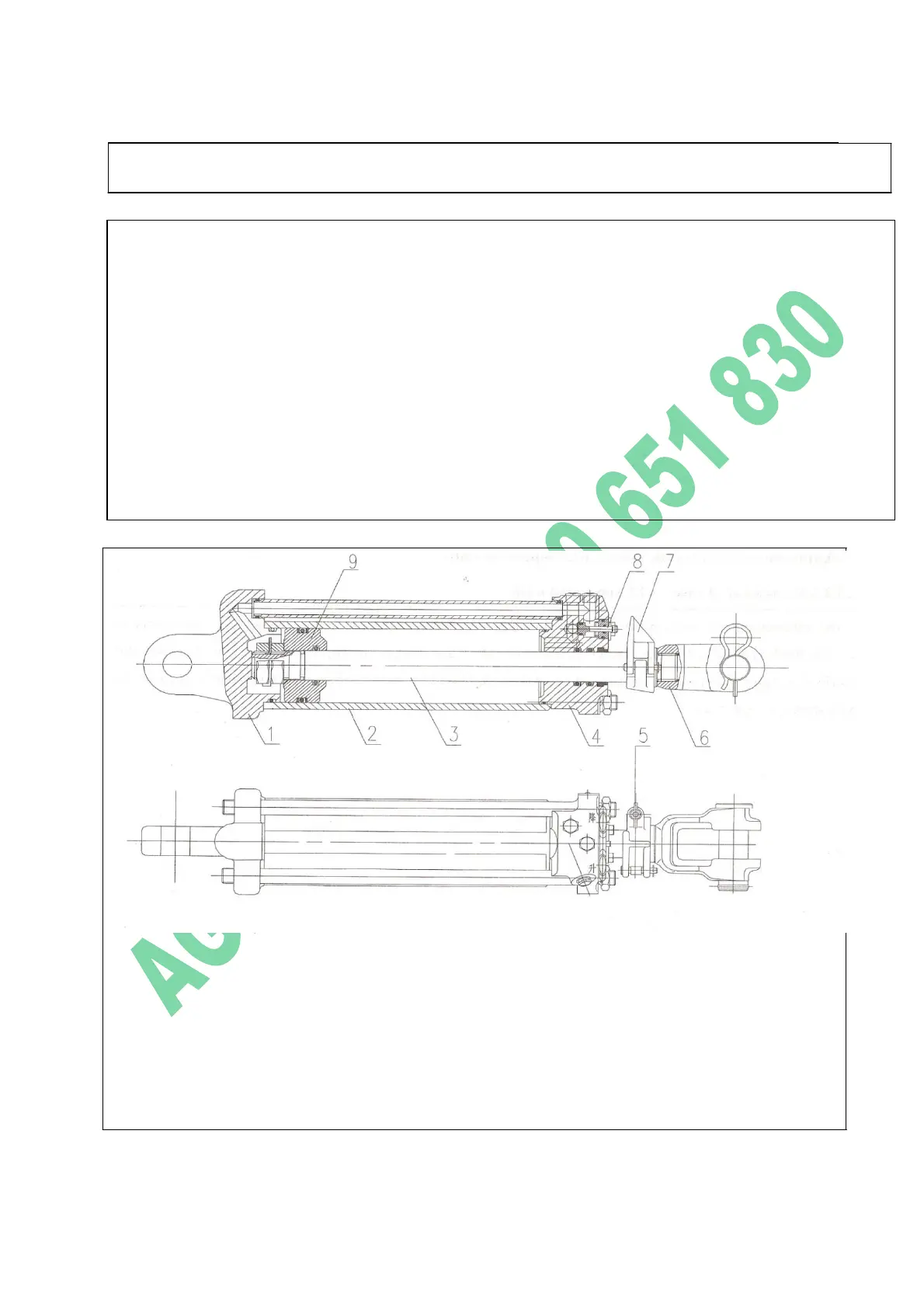

Fig 6-20 双作用油缸
Fig.6-20Double-acting cylinder
1.下盖 2.缸体 3.活塞杆 4.上盖 5.蝶形螺母 6.活塞杆连接叉 7.定位卡箍 8.定位阀 9.活塞
1. Lower cover; 2.Cylinder body; 3. Pistion rod; 4. Upper cover;
6. Piston rod link fork; 7.Position clam
rin
; 8. Position valve;
5.Wing nut;
9. Pistion
6.4.3.2 强压油缸使用调整方法：
Forced cylinder use and adjustment method:
（1）强压油缸简图：
Forced cylinder diagram:
（2）调整方法：
Adjustment
转运状态的调整：为保证农具在运输时安全可靠，当农具上升至最高点应调节定位卡箍把定位调节阀 8
压到底，通过定位阀，闭塞油缸下腔的油路，使之不能再下降。
Transshipment state adjustment: To ensure safe and reliable tools in the transport, up to the highest point when the
tools should be adjusted to locate positioning clamp pressure regulating valve 8 in the end, by positioning the valve,
blocking the oil cylinder lower chamber, so they can not be dropped .
4, 调整完毕，紧各处紧固件。
The adjustment is completed, tighten fasteners throughout.
