THE X:LINK PROTOCOL
The X:LINK protocol is a proprietary Allen and Heath protocol for connection between X:LINK
enabled products.
XONE:K2 X:LINK
In the case of the XONE:K2, X:LINK provides power and MIDI data transfer between two units.
NOTE: X:LINK does not include the transfer of audio.

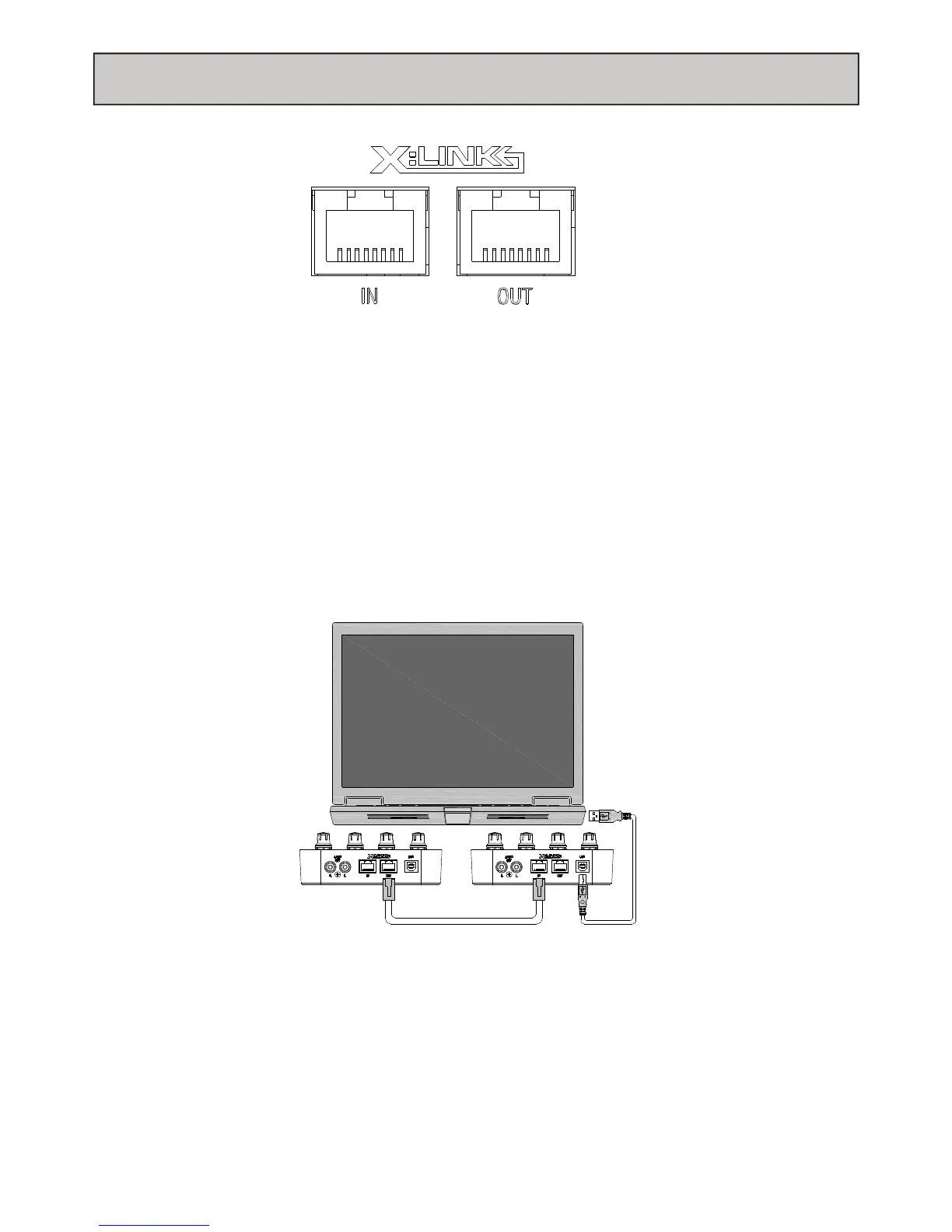

Use the provided RJ45 cable to link the OUT connection on one unit to the IN connection of the
other. The unit wired to the IN connection should be the unit that is connected to the PC/Mac (see
below).
In order for the units to work independently of each other, the MIDI channel numbers must be dif-
ferent. For information on setting the MIDI channel number please see Page 11.

ALLEN & HEATH Xone:K2 Specifications

General

Sample rate	48 kHz
Channels quantity	4 channels
Digital sound processing	- bit
Headphone connectivity	6.3 mm
USB 2.0 ports quantity	1
DJ mixer	Yes
Product color	Black
Video capability	No

Weight and Dimensions

Depth	358 mm
Width	135 mm
Height	30 mm
Weight	1000 g
