ALLEN & HEATH Xone:K2 User Manual

Allen & Heath 9 XONE:K2 User Guide

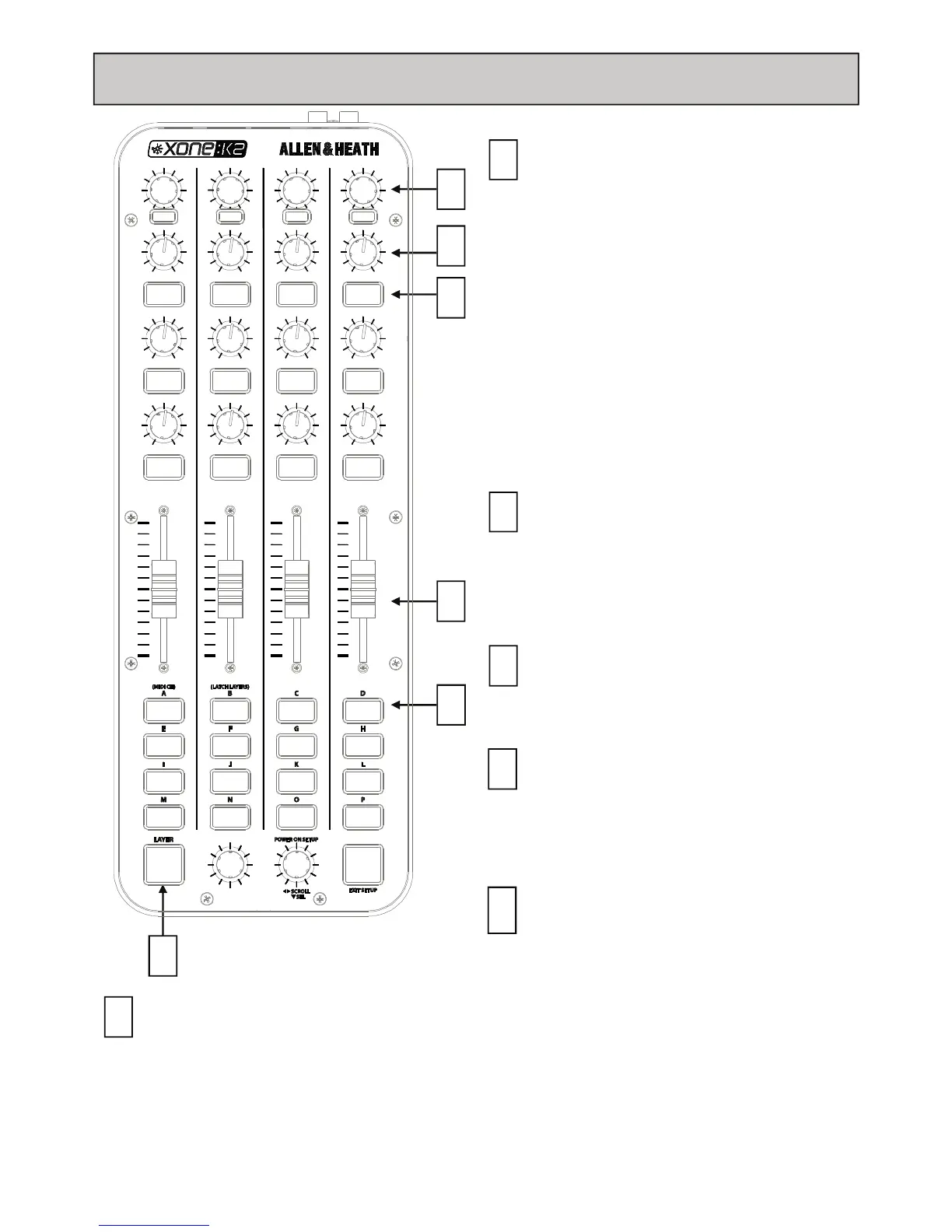

MIDI CONTROLS
1
3
Rotary Encoders
Turning an encoder produces MIDI CC
(continuous controller) messages with a
unique controller number in two’s
compliment binary encoding
These encoders feature a built in
momentary push switch. Pressing down
on the encoder knob activates the switch
and sends a “Note On” MIDI message,
releasing the switch sends a corresponding
“Note Off” message.
The window below the top row of
encoders can be used to display the state
of the encoder switch in the same manner
as the other switches. For more
information please refer to page 16.
1
Switch Matrix
The switch matrix consists of 16 back-lit
tri-colour switches.
5
Pot Switches
Each rotary potentiometer has a switch
with tri-colour illumination below it.
3
2
4
5
6
Linear Faders
Moving a linear fader will send a MIDI
message with a unique CC number and a
control value from 0 (bottom) to 127
(top).
4
Layer Button
The Layer button is completely user assignable but can also function as an embedded layer
button. For more information please refer to page 12.
6
Rotary Potentiometers
These controls are standard
potentiometers with end stops. Turning a
pot from left to right will send MIDI
messages with a unique CC number and a
control value from 0 to 127.
2

ALLEN & HEATH Xone:K2 Specifications

General

Sample rate	48 kHz
Channels quantity	4 channels
Digital sound processing	- bit
Headphone connectivity	6.3 mm
USB 2.0 ports quantity	1
DJ mixer	Yes
Product color	Black
Video capability	No

Weight and Dimensions

Depth	358 mm
Width	135 mm
Height	30 mm
Weight	1000 g
