ALLEN & HEATH Xone:K2 User Manual

Allen & Heath 23 XONE:K2 User Guide
APPLICATION EXAMPLES

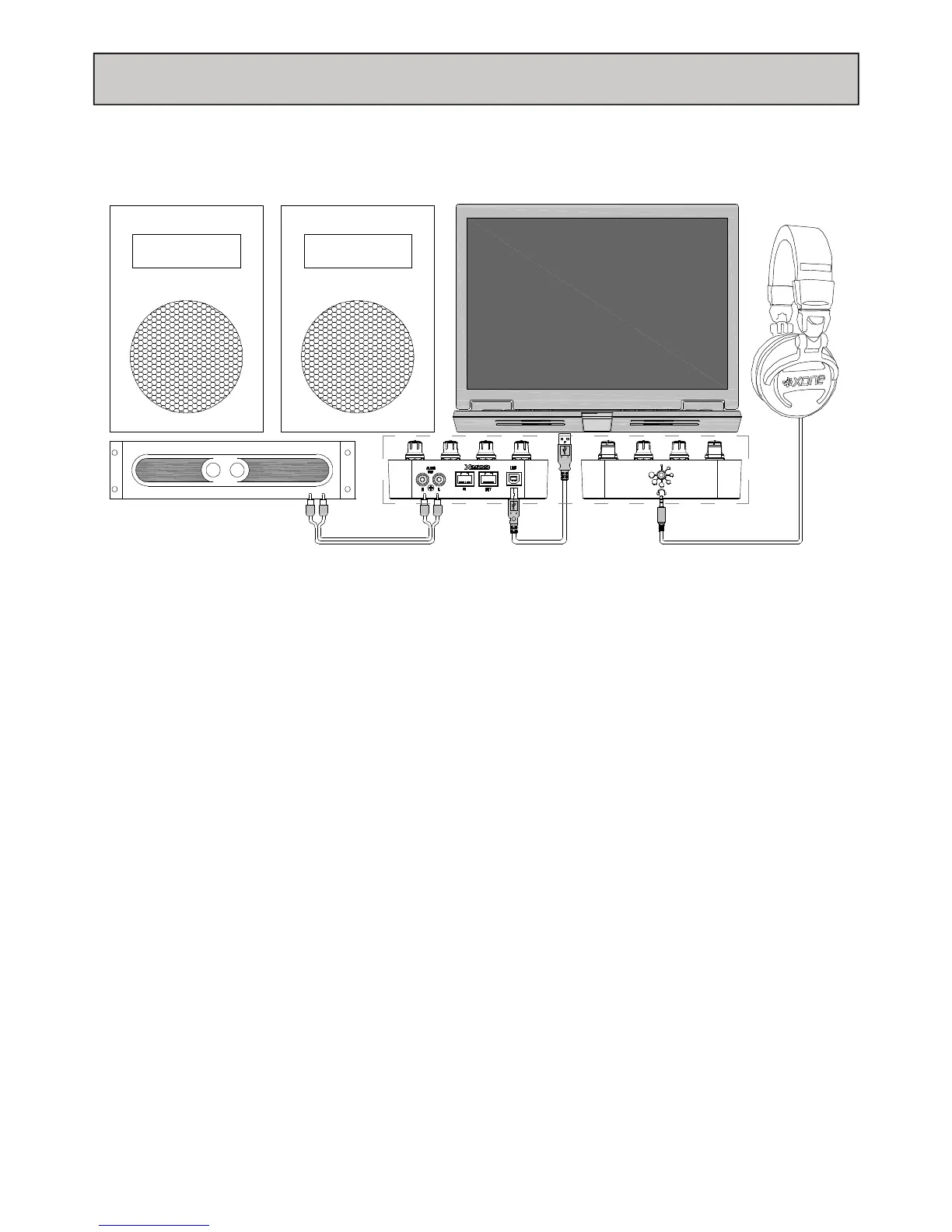

The above diagram shows a basic setup using one Xone:K2 (front and rear panels are both shown).
In this application, the XONE:K2 Master output is wired to a speaker system.
PC DRIVER TYPE
In this particular application, as the Master Output and the headphones are in use, the ASIO driver
must be employed.
MAC
The XONE:K2 is Class Compliant and does not need a specific driver.
SOUNDCARD MAPPING
PC ASIO: In DAW application, set Monitor (or Cue) Output to Soundcard Output 1-2 and
Master (Mix) Output to Soundcard Output 3-4
MAC: In DAW application, set Monitor (or Cue) Output to Soundcard Output 1-2 and
Master
SINGLE SETUP (PHONES AND MIX)

ALLEN & HEATH Xone:K2 Specifications

General

Sample rate	48 kHz
Channels quantity	4 channels
Digital sound processing	- bit
Headphone connectivity	6.3 mm
USB 2.0 ports quantity	1
DJ mixer	Yes
Product color	Black
Video capability	No

Weight and Dimensions

Depth	358 mm
Width	135 mm
Height	30 mm
Weight	1000 g
