88 Rockwell Automation Publication 842E-UM001C-EN-P - September 2016
Appendix B RSLogix 5000® Sample Code
3. In the Configuration tab select:
Message type: CIP generic
Service type: Get attribute single
Service Code: (automatically populated)
Source element: Preset_Value_Read (browse to this tag).
Instance: 1
Class: 23*
Attribute: 13*
* hexadecimal values
4. In the Communication tab, browse to the encoder on the Ethernet
network, then click OK.

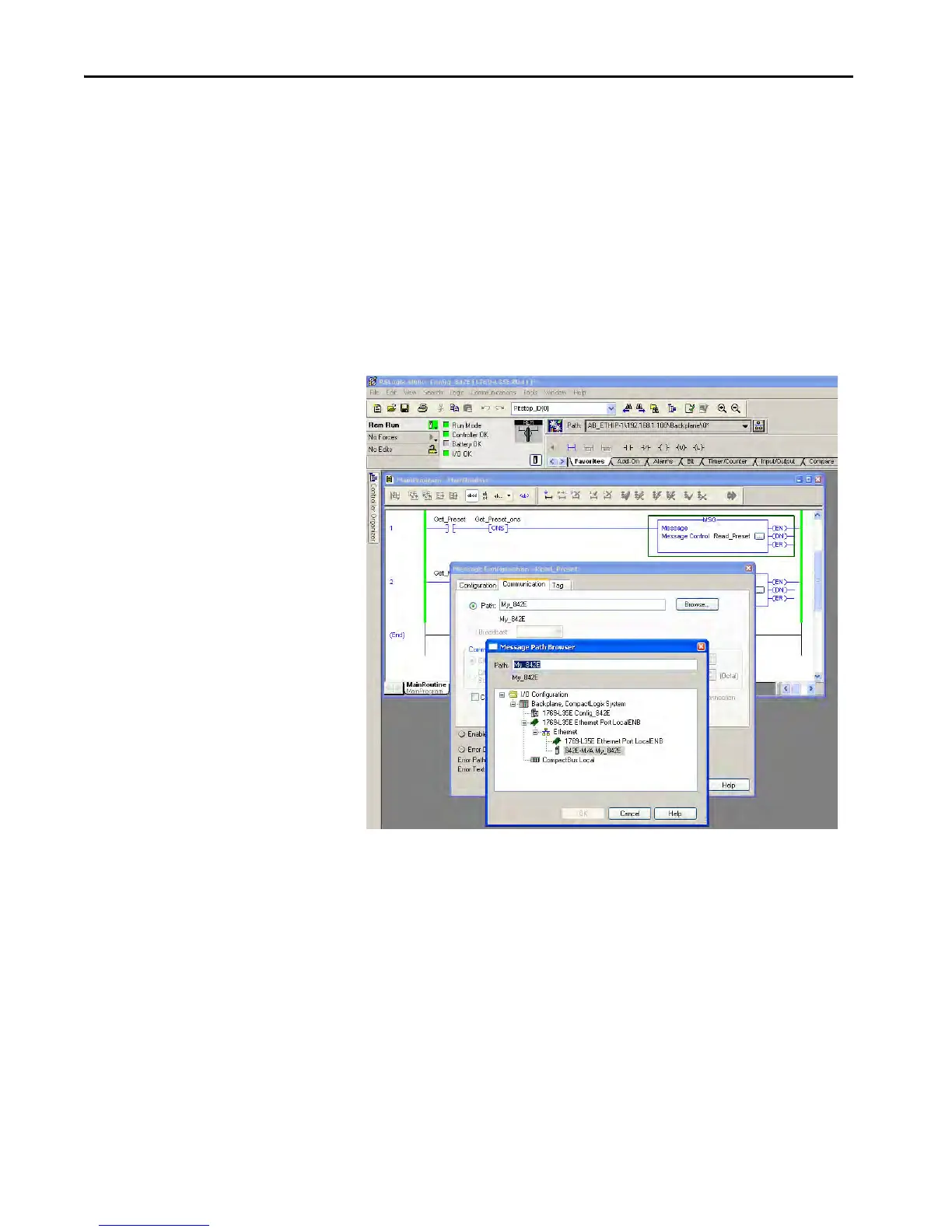

Figure 17
