Rockwell Automation Publication 750-IN001O-EN-P - October 2014 153
Power Wiring Chapter 4
Wall Mount Frames 5…7
Common DC Input Terminal
Locations

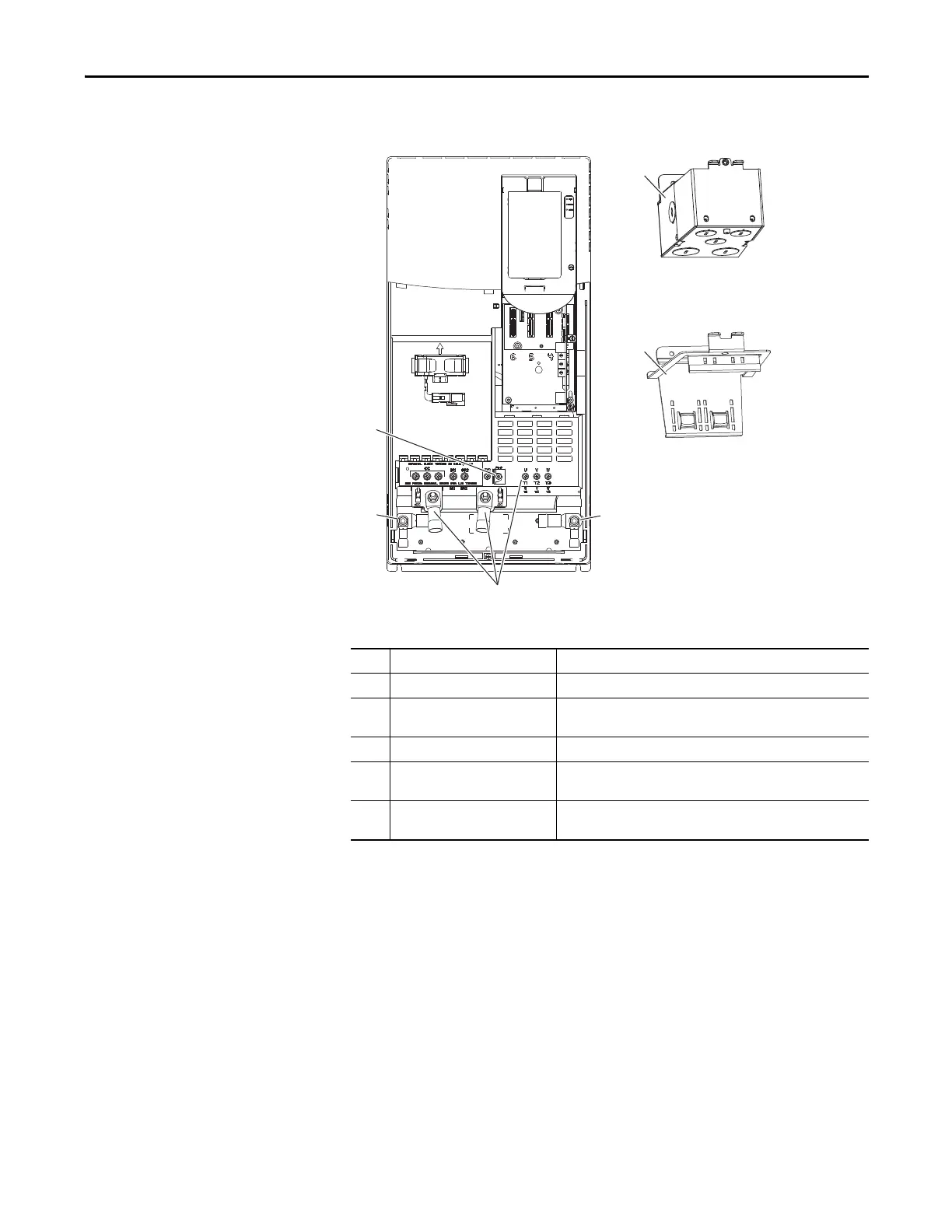

Figure 90 - Wall Mount Frame 5 Common DC Input Power Terminal and Termination Point
Locations
No. Name Description
Power Terminal Connections +DC, -DC, U/T1, V/T2, W/T3
PE Grounding Studs Terminating point to chassis ground for incoming DC line and motor
shields.
PE-B CMC Jumper Screw
Optional NEMA/UL Type 1 Conduit
Box
Terminating point to chassis ground for incoming AC line, motor
shields, and control wire shields.
Optional EMC Plate Terminating point to chassis ground for incoming AC line, motor
shields, and control wire shields.
Wall Mount Frame 5
