Rockwell Automation Publication 750-IN001O-EN-P - October 2014 37
Lift and Mount the Drive Chapter 3
Attach Lifting Hardware

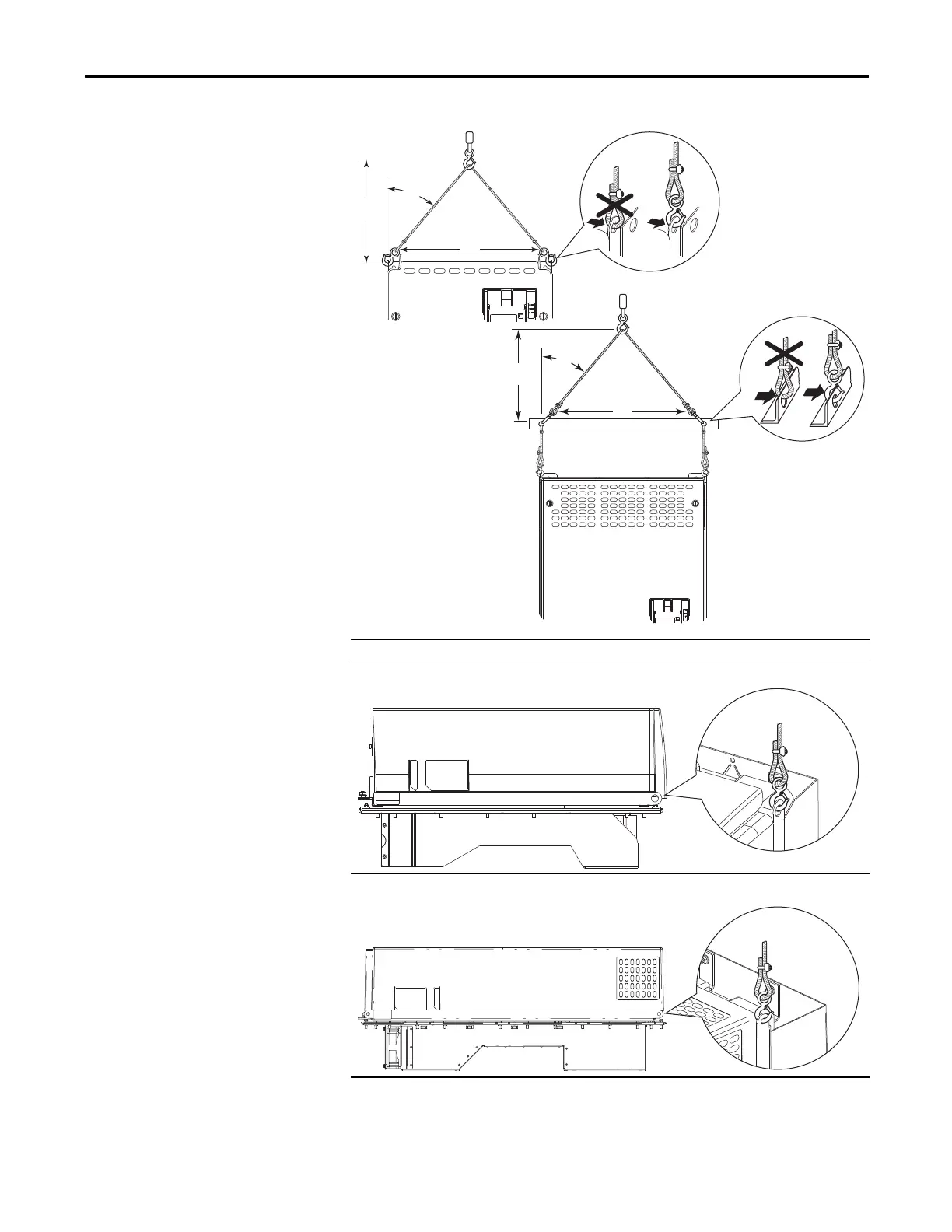

Figure 13 - Rigging Geometry
Enclosure Code F
Wall Mount Frame 6 Lifting Points – 2 Places
Wall Mount Frame 7 Lifting Points – 4 Places
>
1
/
2 A
A
<45°
>
1
/
2 A
A
<45°
