Allen-Bradley PowerFlex 20-750-ENETR User Manual

Rockwell Automation Publication 750-IN001O-EN-P - October 2014 159
Power Wiring Chapter 4
Floor Mount Cabinet Options
Bay

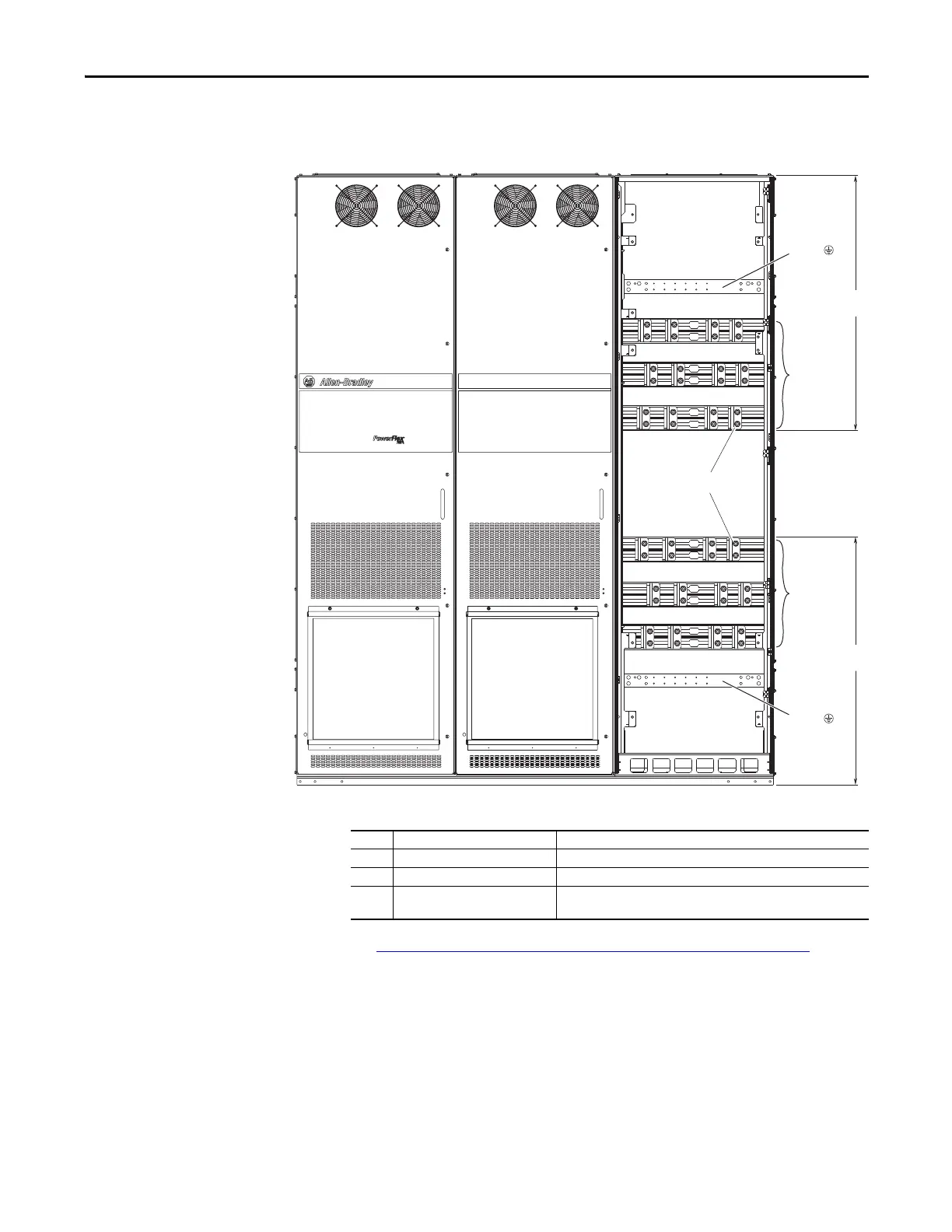

Figure 95 - Bus Bar Locations, Floor Mount Frame 9 Cabinet Options Bay (Cabinet Options
Assembly Removed)
Table 14 - Floor Mount Frame 9 Cabinet Options Bay Bus Bars
See Floor Mount Frames 8…10 Power Terminal L-Brackets on page 162 for
information on making cable connections on extruded bus bars.
➋
➊
➌
➌
R / L1
S / L2
T / L3
U / T1
V / T2
W / T3
PE
PE
964
(38.0)
936
(36.9)
L-brackets (4 per phase)
No. Name Description
➊ Power Bus R/L1, S/L2, T/L3
➋ Power Bus U/T1, V/T2, W/T3
➌ PE Grounding Bar Terminating point to chassis ground for incoming AC line and motor
shield.
