32 Rockwell Automation Publication 520-QS001A-EN-E - March 2014
PowerFlex 520-Series Adjustable Frequency AC Drive

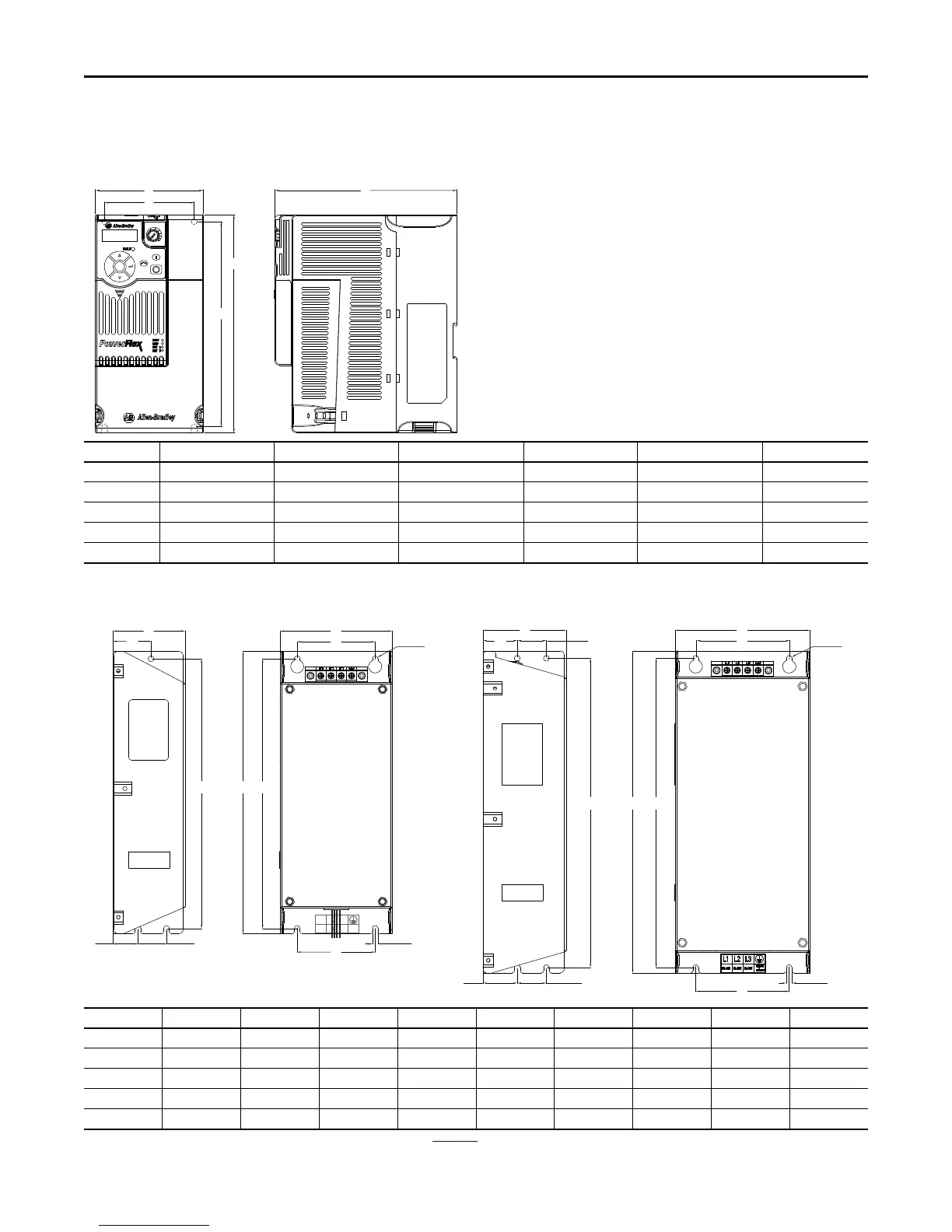

Dimensions and Weight
IP 20/Open Type – Dimensions are in mm and (in.). Weights are in kg and (lb).
EMC Line Filter – Dimensions are in mm and (in.).
Frame Size A B C D E Weight
A 72.0 (2.83) 152.0 (5.98) 172.0 (6.77) 57.5 (2.26) 140.0 (5.51) 1.1 (2.4)
B 87.0 (3.43) 180.0 (7.09) 172.0 (6.77) 72.5 (2.85) 168.0 (6.61) 1.6 (3.5)
C 109.0 (4.29) 220.0 (8.66) 184.0 (7.24) 90.5 (3.56) 207.0 (8.15) 2.3 (5.0)
D 130.0 (5.12) 260.0 (10.24) 212.0 (8.35) 116.0 (4.57) 247.0 (9.72) 3.9 (8.6)
E 185.0 (7.28) 300.0 (11.81) 279.0 (10.98) 160.0 (6.30) 280.0 (11.02) 12.9 (28.4)
Frame Size
(1)
(1) See the PowerFlex 520-Series Adjustable Frequency AC Drive User Manual, publication 520-UM001 for instructions on complying with the EMC Directive.
ABCDEFGHI
A 55.0 (2.17) 72.0 (2.83) 234.0 (9.21) 30.0 (1.18) 223.0 (8.78) 54.0 (2.13) 20.0 (0.79) 23.0 (0.91) 5.5 (0.22)
B 70.0 (2.76) 87.0 (3.43) 270.0 (10.63) 35.0 (1.38) 258.0 (10.16) 58.0 (2.28) 25.0 (0.98) 24.0 (0.94) 5.5 (0.22)
C 70.0 (2.76) 109.0 (4.29) 275.0 (10.83) 37.0 (1.46) 263.0 (10.35) 76.0 (2.99) 25.0 (0.98) 28.0 (1.10) 5.5 (0.22)
D 80.0 (3.15) 130.0 (5.12) 310.0 (12.20) 33.0 (1.30) 298.0 (11.73) 90.0 (3.54) 33.0 (1.30) 28.0 (1.10) 5.5 (0.22)
E 80.0 (3.15) 155.0 (6.10) 390.0 (15.35) 33.0 (1.30) 375.0 (14.76) 110.0 (4.33) 33.0 (1.30) 28.0 (1.10) 5.5 (0.22)
A
D
E
GH
A
D
E
GH
H
B
F
F
CE
I
ø5.5
(ø0.22)
B
CE
F
F
I
ø5.5
(ø0.22)
BLACK BLACK
L1 L2 L3
BLACK
YELLOW
&
GREEN
