Rockwell Automation Publication 520-UM001G-EN-E - September 2014 27
Installation/Wiring Chapter 1
Power and Control Module
PowerFlex 520-series drives consist of a Power Module and Control Module.

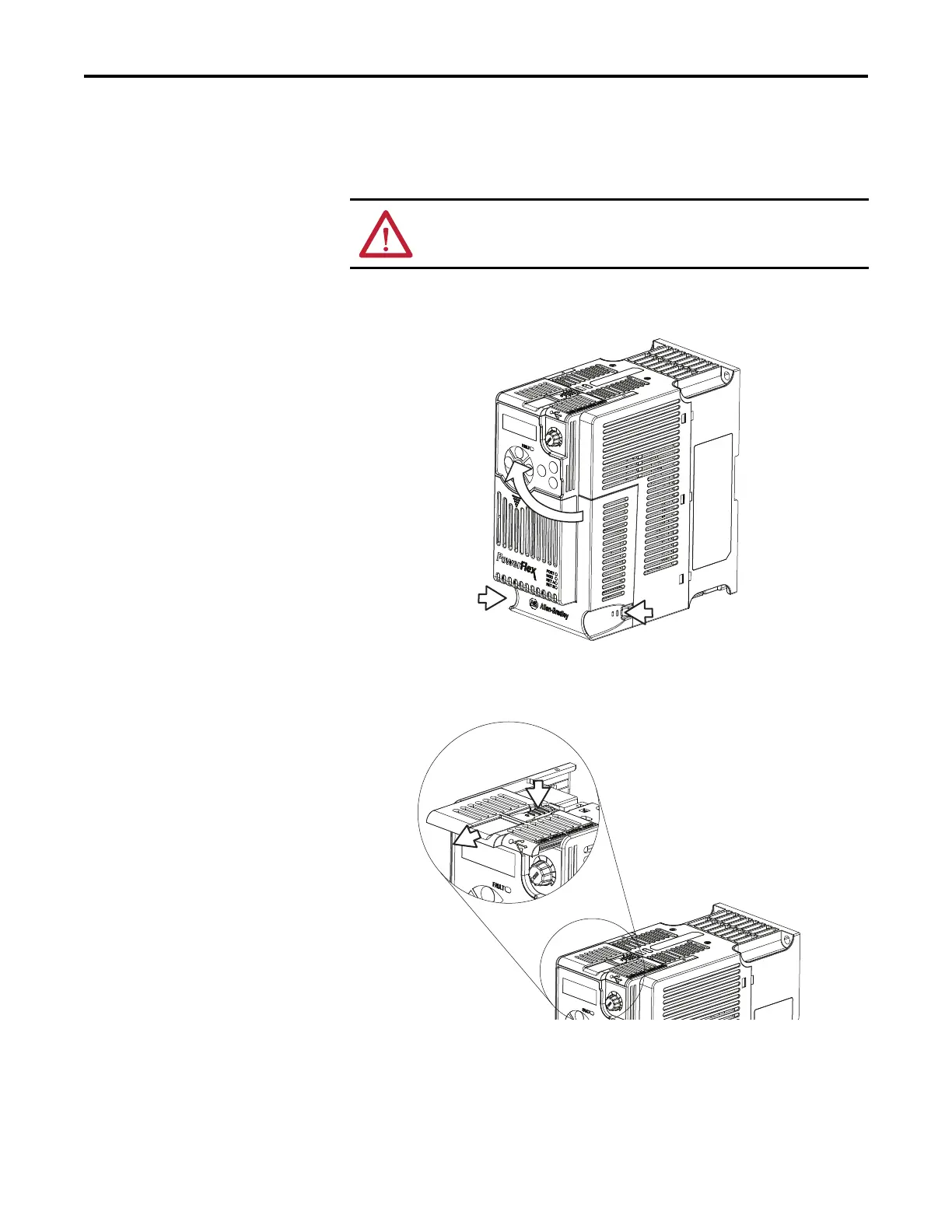

Separating the Power and Control Module
1. Press and hold down the catch on both sides of the frame cover, then pull
out and swing upwards to remove (Frames B...E only).
2. Press down and slide out the top cover of the Control Module to unlock it
from the Power Module.
ATTENTION: Perform this action only when drive is NOT powered.
