PowerFlex 700 Technical Data
8 20B-TD001F-EN-P

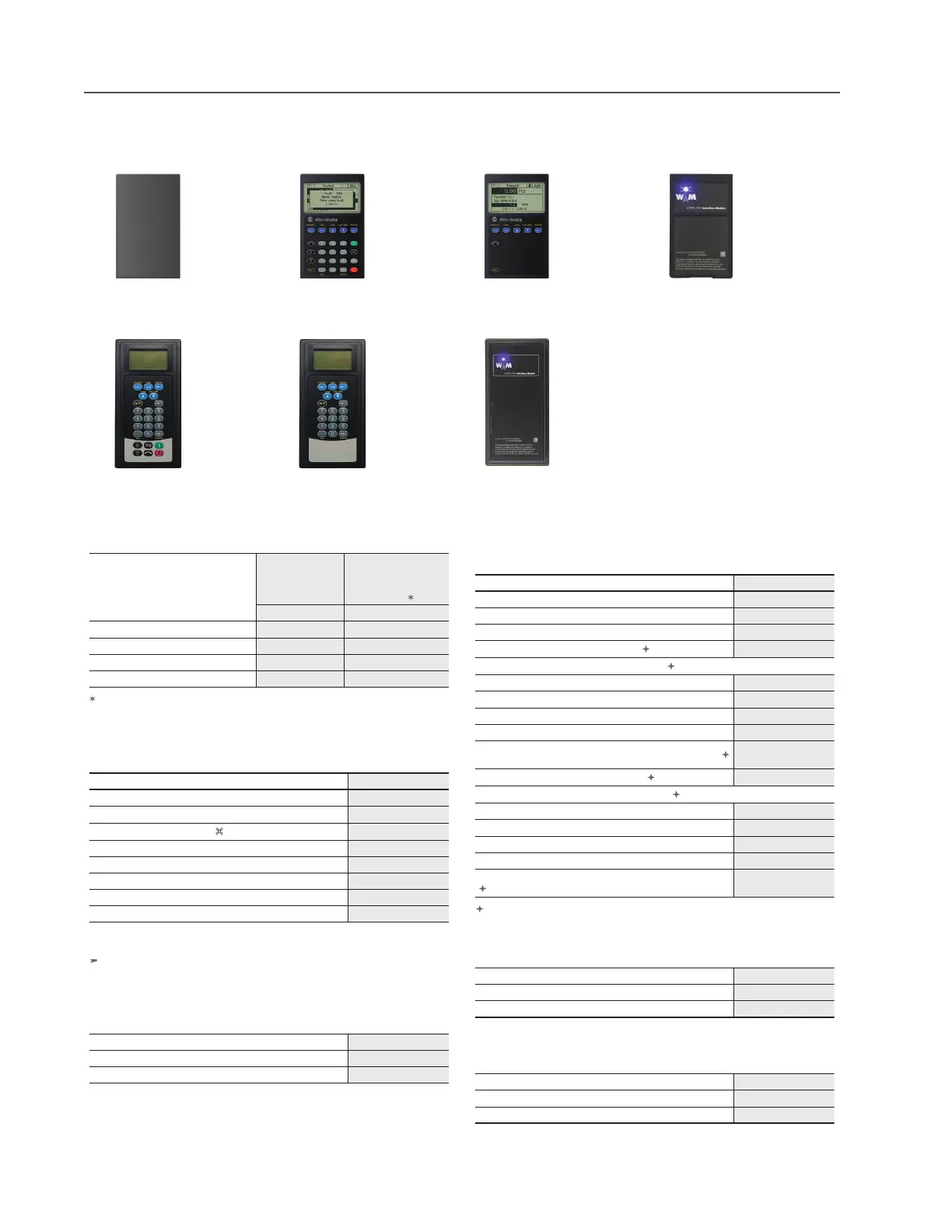

User Installed Options
Human Interface and Wireless Interface Modules
No HIM (Blank Plate)
20-HIM-A0
LCD Display, Full
Numeric Keypad
20-HIM-A3
LCD Display,
Programmer Only
20-HIM-A5
Wireless Interface
Module
20-WIM-N1
Remote (Panel Mount)
LCD Display, Full
Numeric Keypad
20-HIM-C3S
Remote (Panel Mount)
LCD Display,
Programmer Only
20-HIM-C5S
Remote (Panel Mount)
Wireless Interface
Module
20-WIM-N4S
Human Interface Module Accessories
Description Cat. No.
Bezel Kit for LCD HIMs, NEMA/UL Type 1
‡ 20-HIM-B1
PowerFlex HIM Interface Cable, 1 m (39 in)
♣
20-HIM-H10
Cable Kit (Male-Female)
ä
0.33 Meters (1.1 Feet) 1202-H03
1 Meter (3.3 Feet)
1202-H10
3 Meter (9.8 Feet)
1202-H30
9 Meter (29.5 Feet)
1202-H90
DPI/SCANport™ One to Two Port Splitter Cable
1203-S03
‡ Includes a 1202-C30 interface cable (3 meters) for connection to drive.
♣ Required only when HIM is used as handheld or remote.
Required in addition to 20-HIM-H10 for distances up to a total maximum
of 10 Meters (32.8 Feet).
Encoder Option Kit (Vector Control Only)
Description Cat. No.
12V/5V Encoder
20B-ENC-1
12V/5V Encoder with Conformal Coat
20B-ENC-1-MX3
I/O Option Kit (Standard Control Only)
Description Cat. No.
24V DC/AC 20-DA1-A0
115V AC
20-DA1-B0
Terminal Block Replacement Kit
Description Cat. No.
Removable I/O Terminal Block
SK-G9-TB1-S1
Removable Encoder Terminal Block
SK-G9-TB1-ENC1
Control Cassette Option Kits
Control with I/O Cat. No.
Standard Control (Open Loop) - No I/O
20B-STD-N
Standard Control (Open Loop) - 24V DC/AC
20B-STD-A0
Standard Control (Open Loop) - 115V AC
20B-STD-B0
Vector Control (Series B) - 24V DC
20B-VECTB-C0
Vector Control (Series B) - 24V DC with:
60 Hz Maximum 20B-VECT-C0AD
82 Hz Maximum
20B-VECTB-C0AX
Cascading Fan/Pump Control
20B-VECT-C0AE
Pump Off (for Pump Jack)
20B-VECTB-C0BA
Vector Control (Series B) - 24V DC, Conformal Coat
20B-VECTB-C0-
MX3
Vector Control (Series B) - 115V AC
20B-VECTB-D0
Vector Control (Series B) - 115V AC with:
60 Hz Maximum 20B-VECT-D0AD
82 Hz Maximum
20B-VECTB-D0AX
Cascading Fan/Pump Control
20B-VECT-D0AE
Pump Off (for Pump Jack)
20B-VECT-D0BA
Vector Control (Series B) - 115V AC, Conformal Coat
20B-VECTB-D0-
MX3
Vector Control option utilizes DPI Only.
Description
Handheld/Local
(Drive Mount)
Remote (Panel
Mount) IP66,
NEMA/UL Type
4x/12
Cat. No. Cat. No.
No HIM (Blank Plate)
20-HIM-A0 –
LCD Display, Full Numeric Keypad
20-HIM-A3 20-HIM-C3S ‡
LCD Display, Programmer Only 20-HIM-A5 20-HIM-C5S ‡
Wireless Interface Module 20-WIM-N1 20-WIM-N4S
For indoor use only.
‡ Includes a 1202-C30 interface cable (3 meters) for connection to drive.
