3-14 Access Procedures
Important: Minimum inside bend radius for fiber-optic cable is 25.4 mm (1
in.). Any bends with a shorter inside radius can permanently
damage the fiber-optic cable. Signal attenuation increases with
decreased inside bend radii.

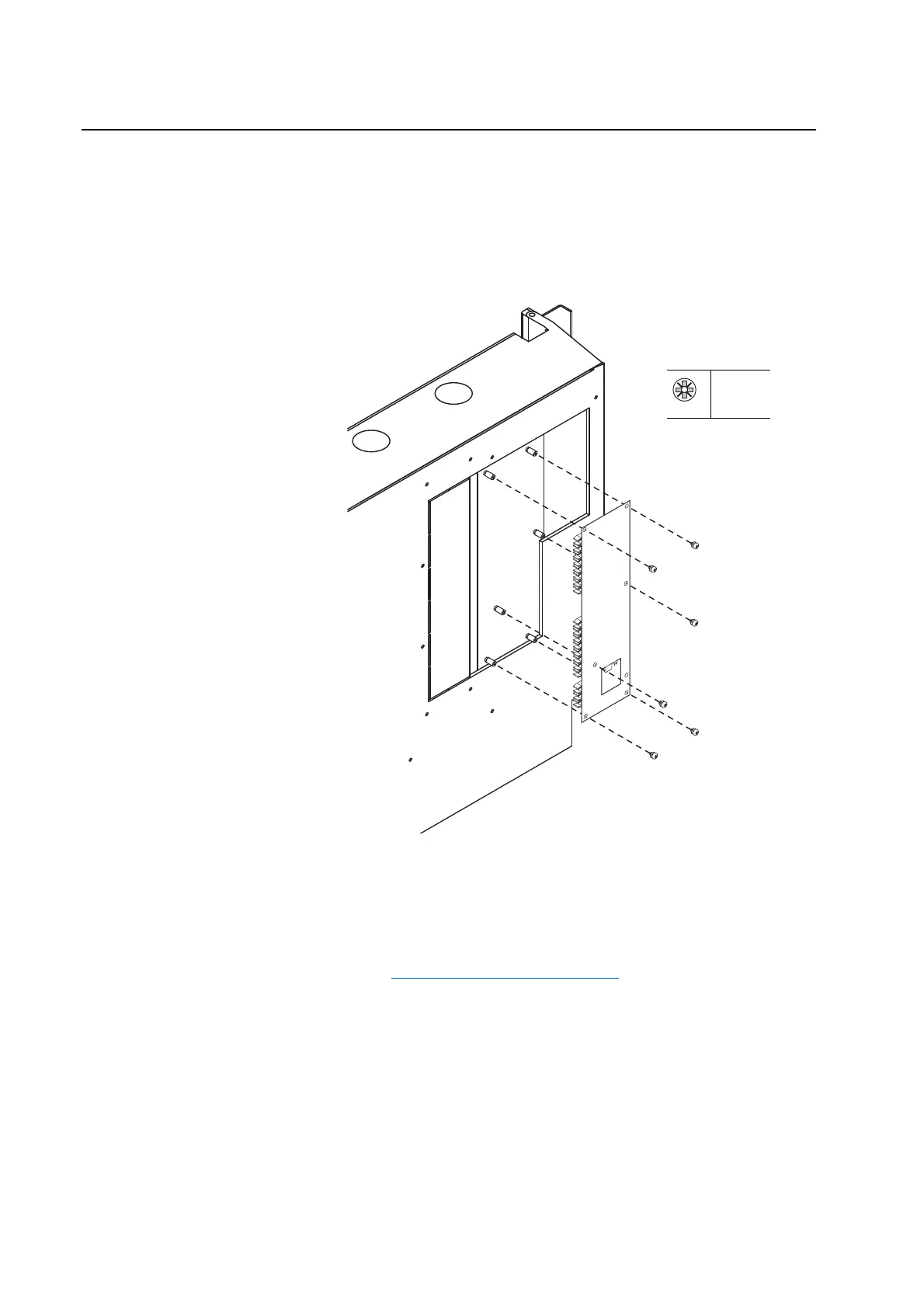

6. Remove the six screws which secure the Star Coupler Board to the
stand-offs on the back of the Control Frame.
7. Remove the Star Coupler Board from the Control Frame.
Installation
Install the 700H Star Coupler Board in reverse order of removal, while
referring to Torque Specifications on page 3-1
.
PZ2
0.9 N-m
(8 lb.-in.)
To Next Page
