3-16 Access Procedures
Removing the Airflow Plates
The drive is equipped with metal plates, at the top of both enclosures, that
manage airflow through the drive. You must remove these plates in order to
access the protective covers.
Removal
1. Remove power from the drive (Removing Power from the Drive on
page 3-3).
2. Move the Control Frame away from the power structure in the left-hand
enclosure (Removing the Covers from the Power Structures on
page 3-15).

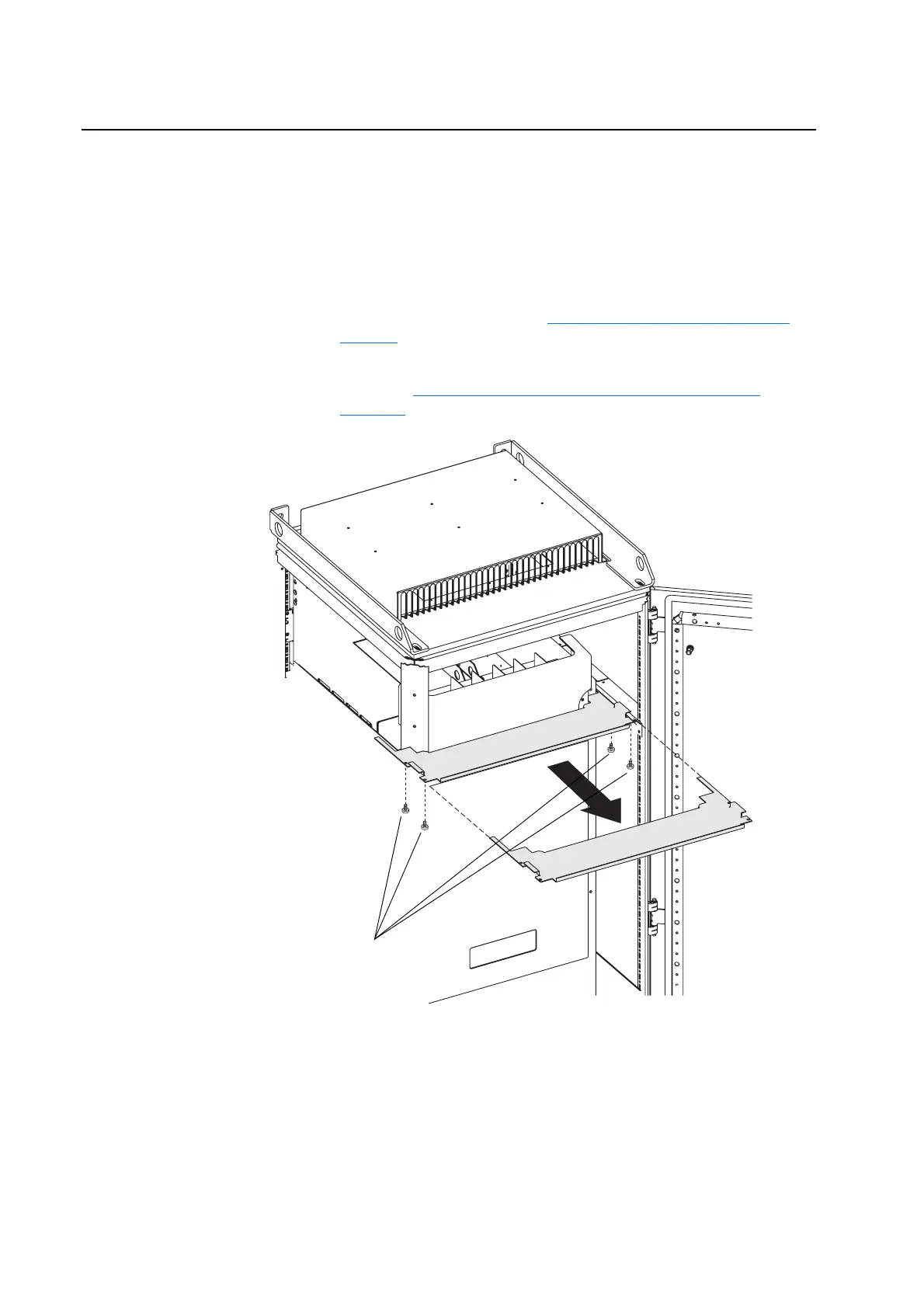

3. On Power Structure 1, remove the T8 Torx-head screws (four per plate)
that secure the airflow plate to the drive.
4. Slide the airflow plate off of the drive.
5. Repeat steps 3 and 4 to remove the airflow plate from Power Structure
2.
Screws
To Next Page
