Rockwell Automation Publication 750-IN105D-EN-P - June 2018 13
PowerFlex 750-Series Service Cart and DC Precharge Module Lift
Use the DCPC Module Lift (Optional)

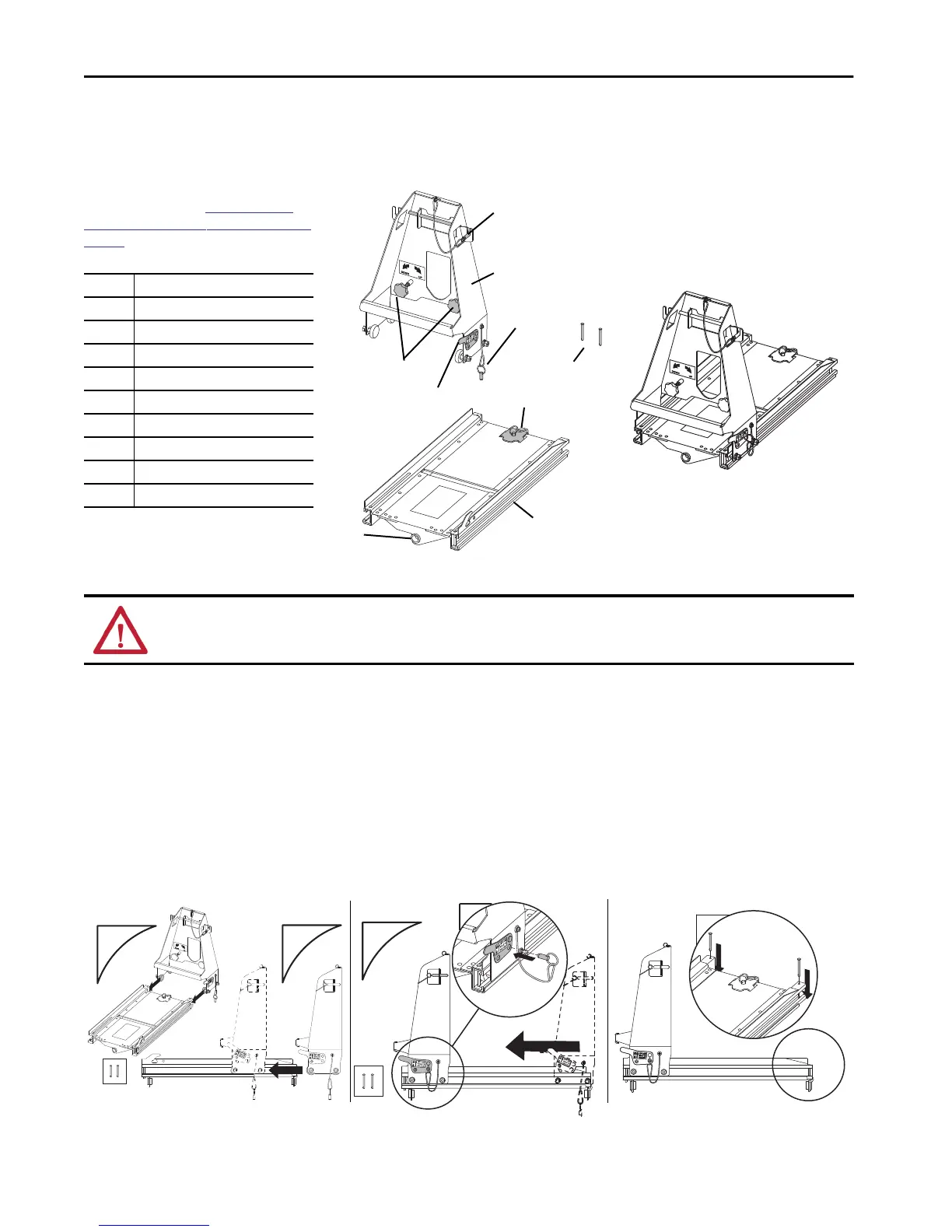

DCPC Module Lift Components
The DCPC module lift is used only with a DC
precharge module. See
Move the Power
Module and the DC Precharge Module on
page 16 if your system does not have a DC
precharge module.
Assemble the DCPC Module Lift
Follow these steps to assemble the DCPC module lift.
1. Remove all packaging and inspect the DCPC module lift for any damage.
Read all labels and familiarize yourself with possible pinch points.
2. Position the carriage slide on a workbench with the front lock plug near you as shown for step 2.
3. With the leveling knobs towards you, place carriage wheels into the carriage slide.
4. Pull the carriage toward you and allow the auto-lock to engage into position.
5. Insert the locking pin.
6. Insert an assembly pin on each side of the carriage slide.
The DCPC module lift is ready for service.
Item Description
1 Locking Bar
2 Carriage
3 Locking Pin
4 Leveling Knobs
5 Auto-Lock
6 Assembly Pins
7 Rear Lock Plug
8 Carriage Slide
9 Front Lock Plug
TIP
The DCPC module lift weighs approximately
12 kg (25 lb).
ATTENTION: Pinch point hazards exist with the DCPC module lift. To avoid personal injury, review all product labels and potential pinch point hazards before you
begin assembly.
1
7
6
3
5
4
8
2
9
As received
Assembled ISO-View
3
2
5
4
6
