PowerFlex 750-Series Service Cart and DC Precharge Module Lift
Return the Power Module and the DC Precharge Module into the Cabinet
Dock the Service Cart to the Cabinet
Review these sections before you start this
procedure:
•
Adjust the Service Cart on page 7
•
Prepare the Equipment for Service on
page 8
•
Install the DCPC Module Lift on
page 14 (Only for DCPC modules)
•
Unload or Load the DC Precharge
Module from the DCPC Module Lift
on page 18
(Only for DCPC modules)
•
Load a Power Module Into the Service
Cart on page 21
•
Move the Power Module and the DC
Precharge Module on page 16

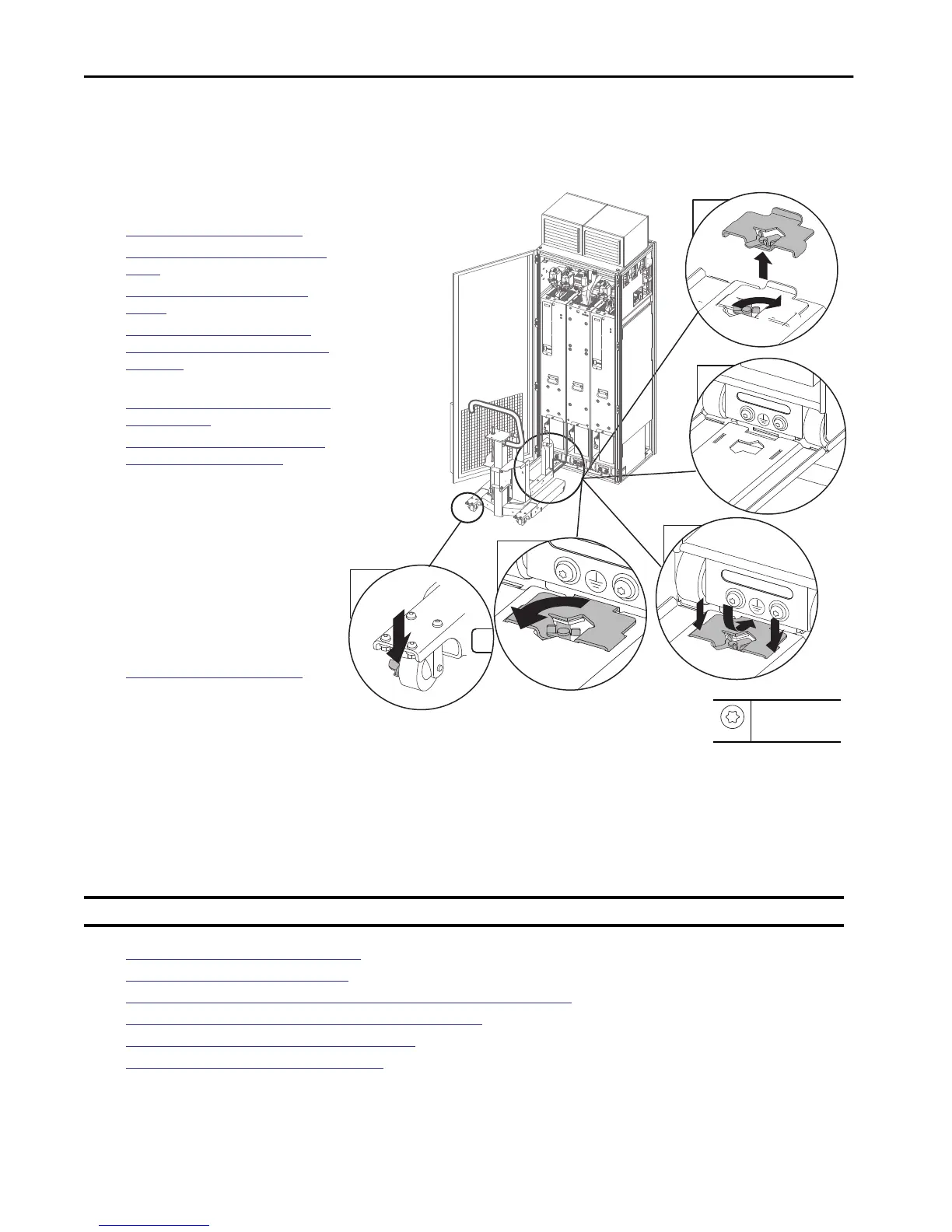

Follow these steps to dock the service cart to the
cabinet.
1. Remove the tie-in plate from the end of
the bridge span.
2. Align the cart with the cabinet.
Adjust the height of the carriage
assembly to be level and align with
cabinet floor and wheel track. See
Adjust the Service Cart on page 7 for
more information.
3. To connect the bridge span to the
cabinet floor plate, insert the tie-in
plate.
4. Lock the tie-in plate.
5. Put the caster brakes in the ON position.
Install the DC Precharge Module
This section applies only to configurations that contain a DC precharge module. Complete these procedures before you install the DC precharge
module.
•
Prepare the Equipment for Service on page 8
•
Install the DCPC Module Lift on page 14
•
Unload or Load the DC Precharge Module from the DCPC Module Lift on page 18
•
Move the Power Module and the DC Precharge Module on page 16
•
Load a Power Module Into the Service Cart on page 21
•
Dock the Service Cart to the Cabinet on page 22
Before you install the DC precharge module, all applicable safety guards, anchor bolts, and wire harnesses are disconnected or removed. The service
cart is anchored to the control cabinet with the power module, DC precharge module, and DCPC lift secured, if applicable.
IMPORTANT The LCL filter or power module can NOT be installed in the cabinet when the DC precharge module is installed.
4
5
2x
1
2
3
M10 x 20mm
T45
42.4 N•m (375 lb•in)
