Rockwell Automation Publication 750-IN105D-EN-P - June 2018 7
PowerFlex 750-Series Service Cart and DC Precharge Module Lift

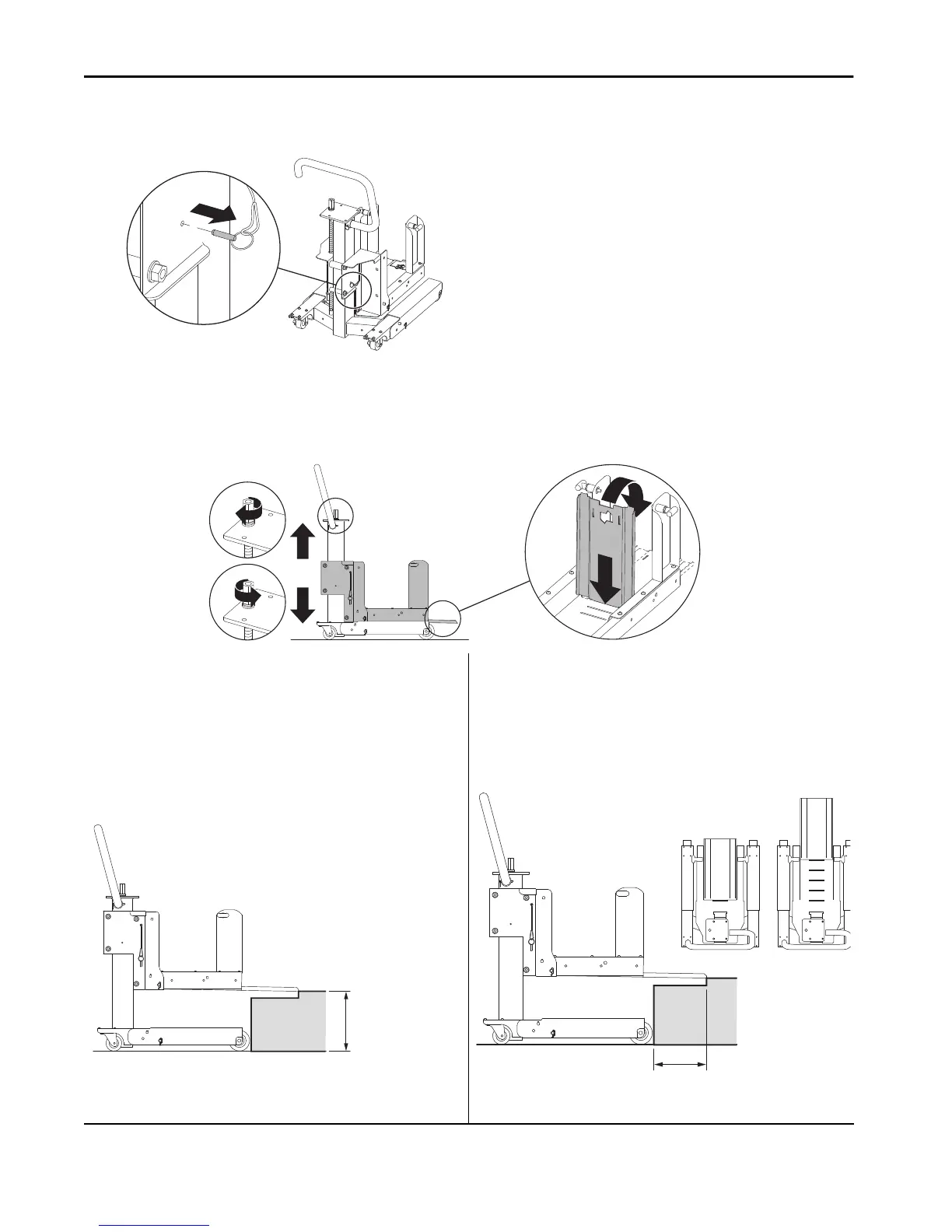

Release the Carriage Trolley
Remove the pin that locks the carriage trolley and carriage assembly. The service cart is ready to use.
Adjust the Service Cart
The height and reach of the service cart carriage assembly is adjustable.
Height
The jackscrew adjusts the height of the carriage assembly. Clockwise
rotation raises the carriage assembly and counterclockwise rotation
lowers the carriage assembly.
To make height adjustments quickly, use an electric hand drill fitted
with a 25 mm socket. An electric drill with a torque rating of 11.3 N•m
(100 lb•in) or higher is recommended.
Reach
To adjust the reach of the carriage assembly, reposition the movable
bridge span into the available slots.
The bridge span hooks into the slots in the bridge floor to secure it in
place.
0…254 mm
(0…10 in.)
0…203 mm
(0…8 in.)
ExtendedRetracted
Top View
To Next Page
