16 Rockwell Automation Publication 750-IN105D-EN-P - June 2018
PowerFlex 750-Series Service Cart and DC Precharge Module Lift

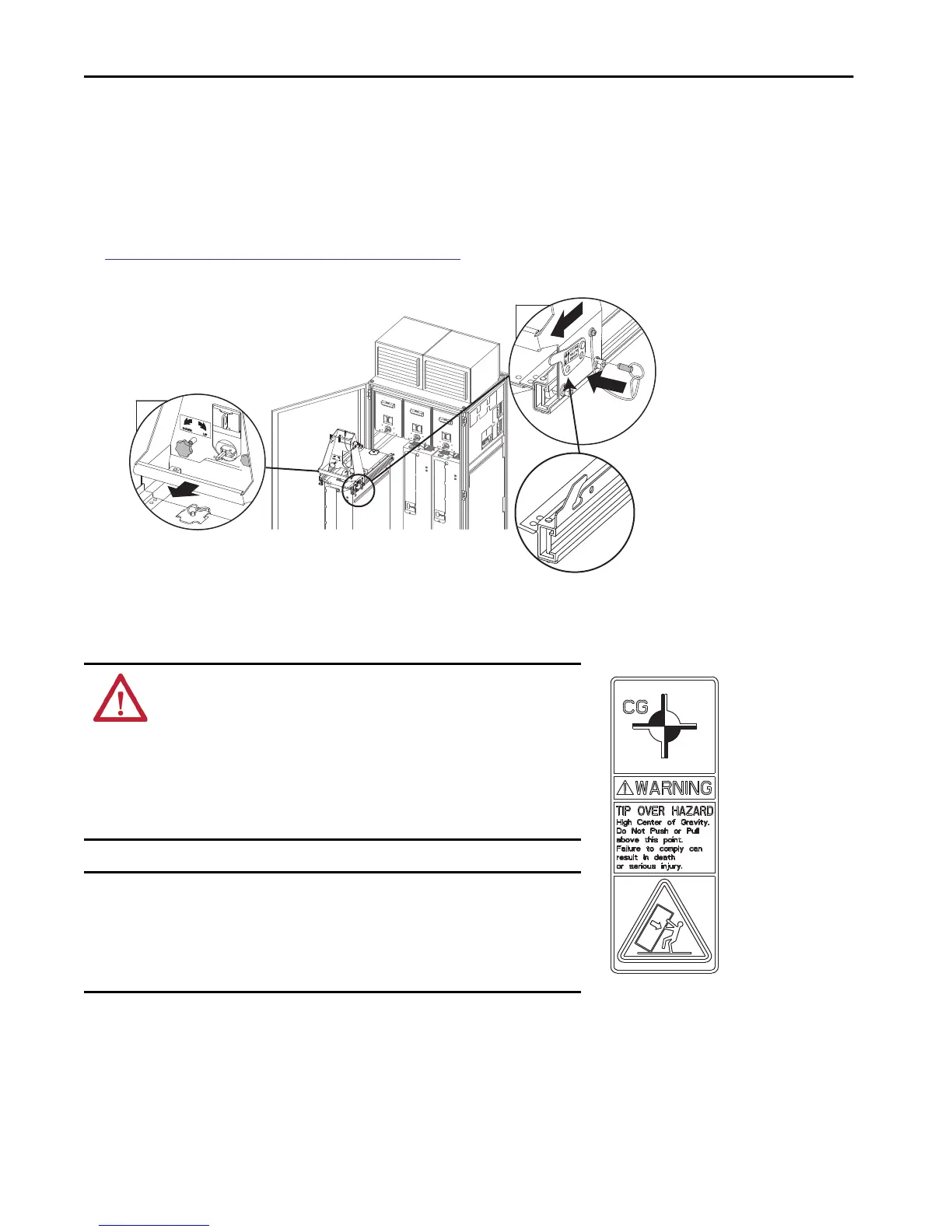

6. To pull the DC precharge module from the cabinet, use the handle on the DCPC module lift.
Adjust the leveling knobs and height of the service cart as needed.
7. Slide the carriage and DC precharge module to the auto-lock position.
a. Engage the auto-lock.
b. Insert the locking pin.
The DC precharge module is now removed.
See
Move the Power Module and the DC Precharge Module on page 16 for instructions on undocking the service cart and transportation
recommendations.
Move the Power Module and the DC Precharge Module
ATTENTION: Avoid personal injury and equipment damage. LCL filter modules and power
modules have a high center of gravity and a Tip-over Hazard exists. To guard against death,
serious personal injury, or equipment damage, do not subject the power module to high rates of
Acceleration or Deceleration while transporting. Do not push or pull above the points that are
indicated on the power module.
ATTENTION: The center of gravity is higher when a DC precharge unit is present.
ATTENTION: Avoid personal injury. Hazard of pinch point injury exists. Review all product labels
and familiarize yourself with the potential pinch point hazards before handling power modules.
Use caution when moving the power modules between the service cart and the workstation.
IMPORTANT Take precautions when using the service cart to transport a module:
• Use the service cart to move a module a short distance to gain access to the cabinet
interior or to service the module.
• Lower the center of gravity by putting the service cart at the lowest level possible.
• Use the service cart on smooth and level surfaces.
• Avoid sloped and rough surfaces.
7
b
a
6
Auto-lock
Channel Design
This label, affixed to the
module chassis, identifies
the center of gravity.
To Next Page
