Allen-Bradley PowerFlex 750 Series User Manual

Rockwell Automation Publication 750-UM003D-EN-P - March 2017 17
Installation and Wiring Chapter 2
Remove the Drive Cover for Frames 2…5

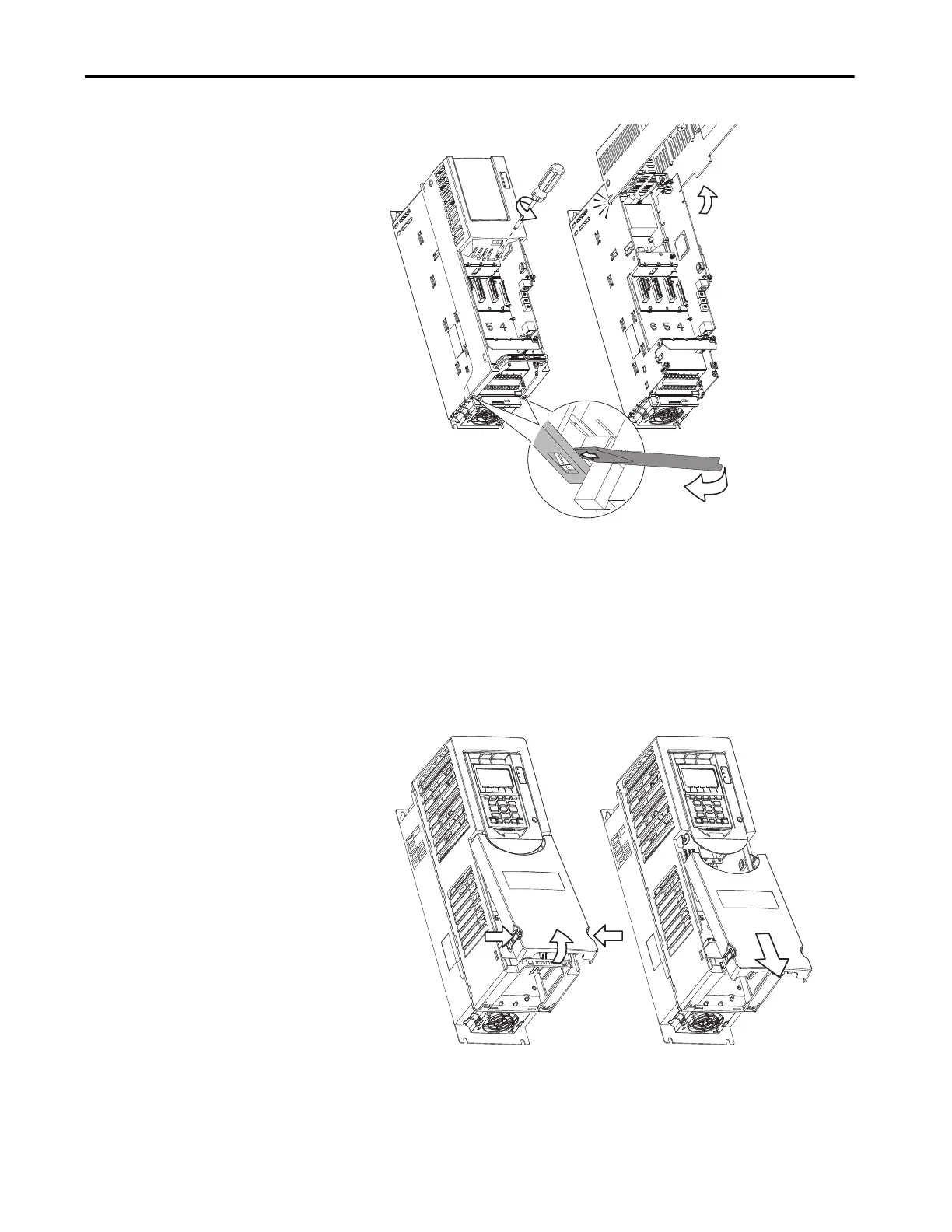

To remove the drive cover for PowerFlex 753 and 755 frame 2…5 drives, follow
these steps.
1. Squeeze the locking tabs and pull out the bottom of the cover.
2. Pull the cover down and away from the chassis.
3. Lift the human interface module (HIM) cradle.
a. Loosen the retention screw.
b. Lift the cradle until the latch engages.
