Alpine CDE-171R User Manual

30-EN
IMPORTANT

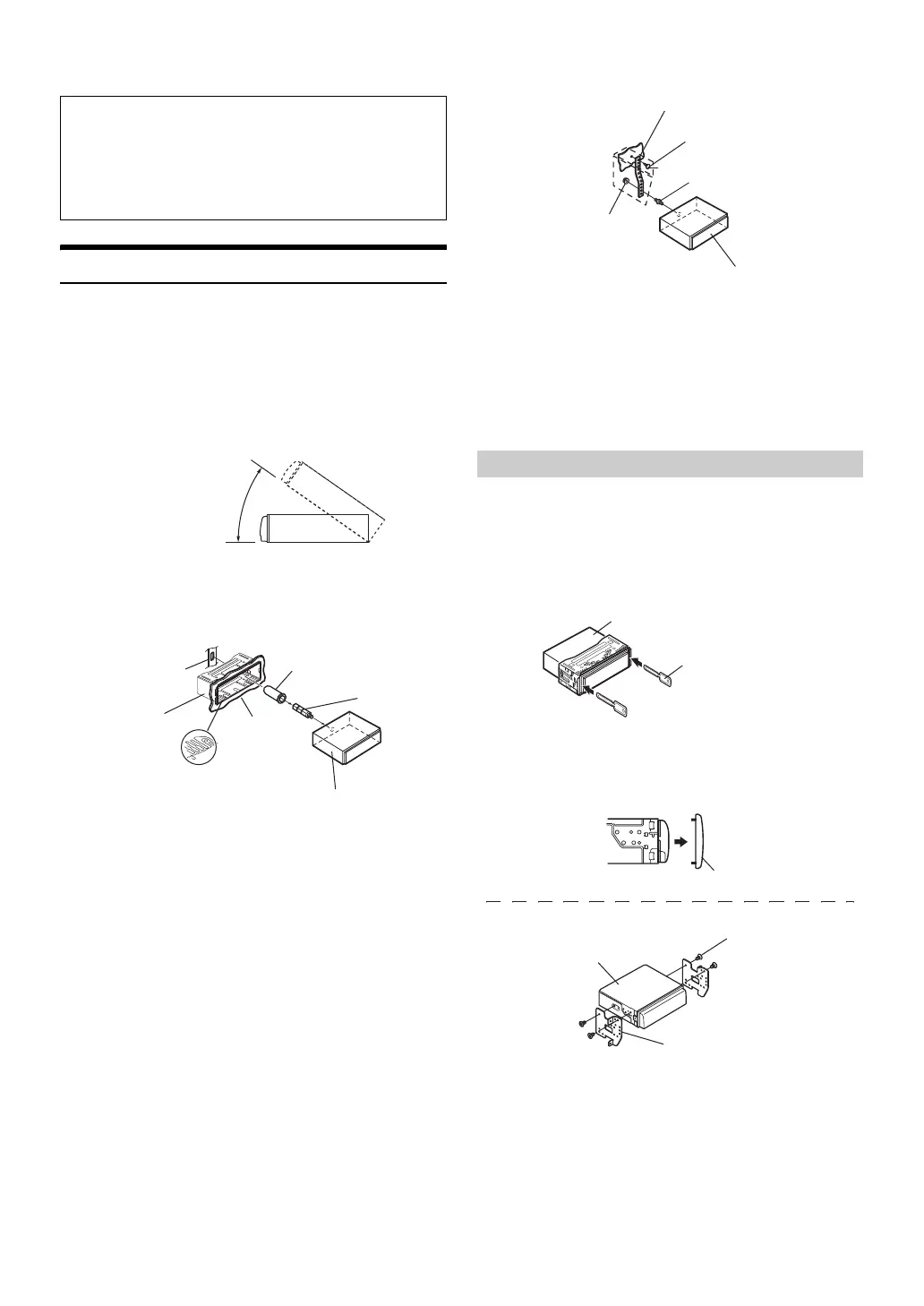

Installation
CAUTION
When you install this unit in your car, do not remove the
detachable front panel.
If the detachable front panel is removed during installation, you
might press too hard and warp the metal plate that holds it in
place.
The main unit must be mounted within 35 degrees of the
horizontal plane, back to front.
1 Remove the mounting sleeve from the main unit (Refer to
“Removal” on page 30). Slide the mounting sleeve into the
dashboard and fix it with the metal shackles.
* If the installed mounting sleeve is loose in the dashboard, the
pressure plates may be bent slightly to remedy the problem.
2 When your vehicle has the Bracket, mount the long hex
bolt onto the rear panel of the CDE-171R/CDE-171RR/
CDE-171RM/CDE-170R/CDE-170RR/CDE-170RM and put
the Rubber Cap on the hex bolt. If your vehicle does not
have the Mounting Support, reinforce the head unit with
the metal mounting strap (not supplied). Connect all the
leads of the CDE-171R/CDE-171RR/CDE-171RM/
CDE-170R/CDE-170RR/CDE-170RM according to details
described in the CONNECTIONS section.
* For the screw
*
, provide a proper screw to the chassis installing
location.
3 Slide the CDE-171R/CDE-171RR/CDE-171RM/CDE-170R/
CDE-170RR/CDE-170RM into the dashboard until it clicks.
This ensures that the unit is properly locked and will not
accidentally come out from the dashboard. Install the
detachable front panel.
1 Remove the detachable front panel.
2 Insert the bracket keys into the unit, along the guides on
either side. The unit can now be removed from the
mounting sleeve.
3 Pull the unit out, keeping it unlocked as you do so.
JAPANESE CAR
Please record the serial number of your unit in the space provided
below and keep it as a permanent record. The serial number or the
engraved serial number is located on the bottom of the unit.
SERIAL NUMBER: [ ]
INSTALLATION DATE: [ ]
INSTALLATION TECHNICIAN: [ ]
PLACE OF PURCHASE: [ ]
Less than 35°
Rubber Cap (Included)
Bracket
Hex Bolt
(Included)
Mounting Sleeve
(Included)
Dashboard
Pressure Plates*
This unit
Removal
*
Metal Mounting Strap
Screw
Bolt Stud
Hex Nut (M5)
This unit
Bracket keys
(Included)
This unit
Front Frame
Screw (M5 × 8)
(Included)
This unit
Mounting Bracket
