Alpine CDE-171R User Manual

31-EN

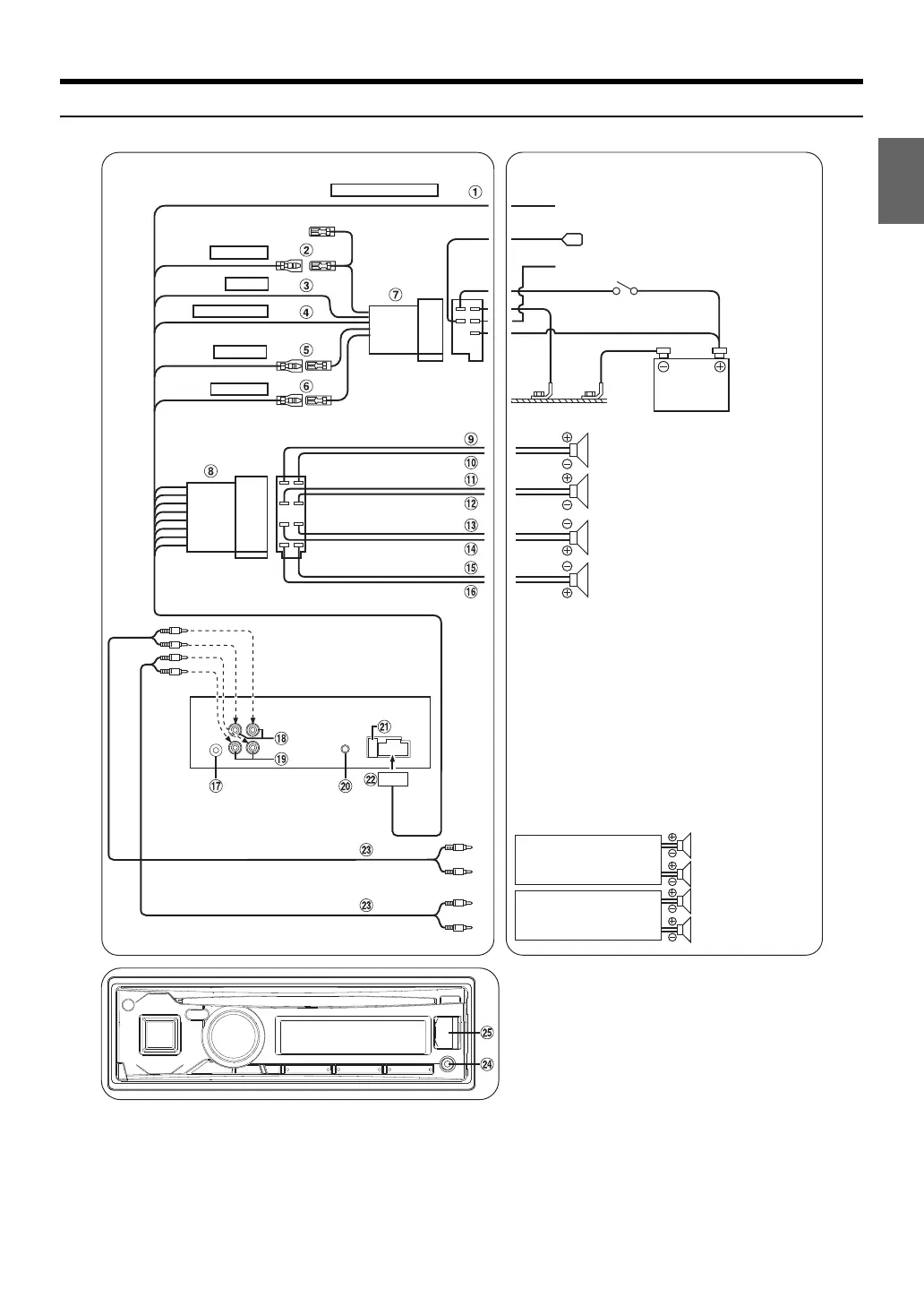

Connections
* When Subwoofer is OFF: Output is for Rear speakers. When Subwoofer is ON: Output is for Subwoofer.
For details on how to set the Subwoofer to ON/OFF, refer to “Turning Subwoofer ON/OFF” on page 16.
REMOTE TURN-ON
IGNITION
GND
POWER ANT
DIMMER
BATTERY
To amplier
Amplier
Front
To power antenna
To the instrument cluster illumination lead
Ignition Key
(Blue/White)
(Red)
(Black)
(Blue)
Amplier
Battery
Speakers
Rear Left
Front Left
Front Right
Rear Right
Speakers
Rear or Subwoofers*
(Green)
(Green/Black)
(White)
(White/Black)
(Grey/Black)
(Grey)
(Violet/Black)
(Violet)
(Orange)
(Yellow)

Alpine CDE-171R Specifications

General

Brand	Alpine
Model	CDE-171R
Category	Car Receiver
Language	English
