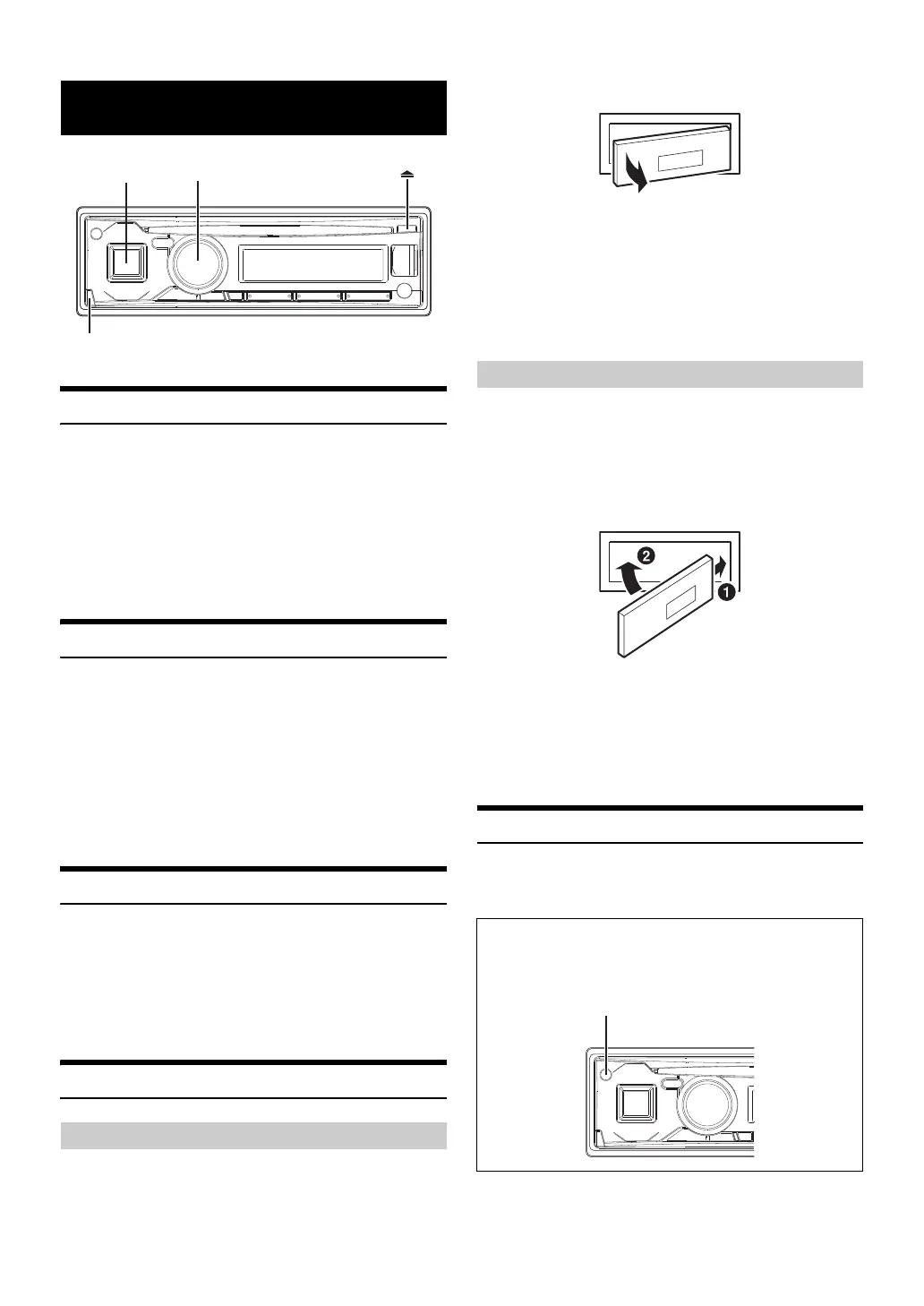

8-EN
Accessory List
Head Unit ..................................................................................1
Power Cable ..............................................................................1
Mounting Sleeve ......................................................................1
Carrying Case (CDE-171R/CDE-171RR/CDE-171RM only) .....1
Rubber Cap ...............................................................................1
Hex Bolt.....................................................................................1
Bracket key ...............................................................................2
Screw (M5 × 8) ..........................................................................4
Owner’s Manual..................................................................1 set
Turning Power On and Off
Press SOURCE to turn on the unit.
Note
The unit can be turned on by pressing any other button except and
e (Release).
Press and hold SOURCE for at least 2 seconds to turn
off the unit.
Note
The first time power is turned on, the volume will start from level 12.
Source Selection
Press SOURCE to change the source.
TUNER DISC USB AUDIO/iPod
*1
AUXILIARY
*2
TUNER
*1 Only for CDE-171R/CDE-171RR/CDE-171RM, and only when
the iPod/iPhone is connected.
*2 Only when AUX SETUP is set to ON. Refer to “Setting the AUX
SETUP mode” on page 20.
Detaching and Attaching the Front Panel
1
Turn off the unit power.
2
Press e (Release) at the lower left side until the front
panel pops out.
3
Grasp the left side of the front panel and pull it out.
Notes
The front panel may become hot in normal usage (especially the
connector terminals on the back of the front panel). This is not a
malfunction.
To protect the front panel, place it in the supplied carrying case
(CDE-171R/CDE-171RR/CDE-171RM only).
When detaching the front panel, do not apply excessive force as it may
result in malfunction.
1
Insert the right side of the front panel into the main unit.
Align the groove on the front panel with the projections
on the main unit.
2
Push the left side of the front panel until it locks firmly into
the main unit.
Notes
Before attaching the front panel, make sure that there is no dirt or dust
on the connector terminals and no foreign object between the front
panel and the main unit.
Attach the front panel carefully, holding the sides of the front panel to
avoid pushing buttons by mistake.
Adjusting Volume
Turn the Rotary encoder until the desired sound is
obtained.
Getting Started
Detaching
e
SOURCE/
Rotary encoder
Attaching
Controllable with Remote Control
This unit can be controlled with an optional Alpine remote control.
For details, consult your Alpine dealer. Point the optional remote
control transmitter at the remote-control sensor.
Remote control sensor
