29

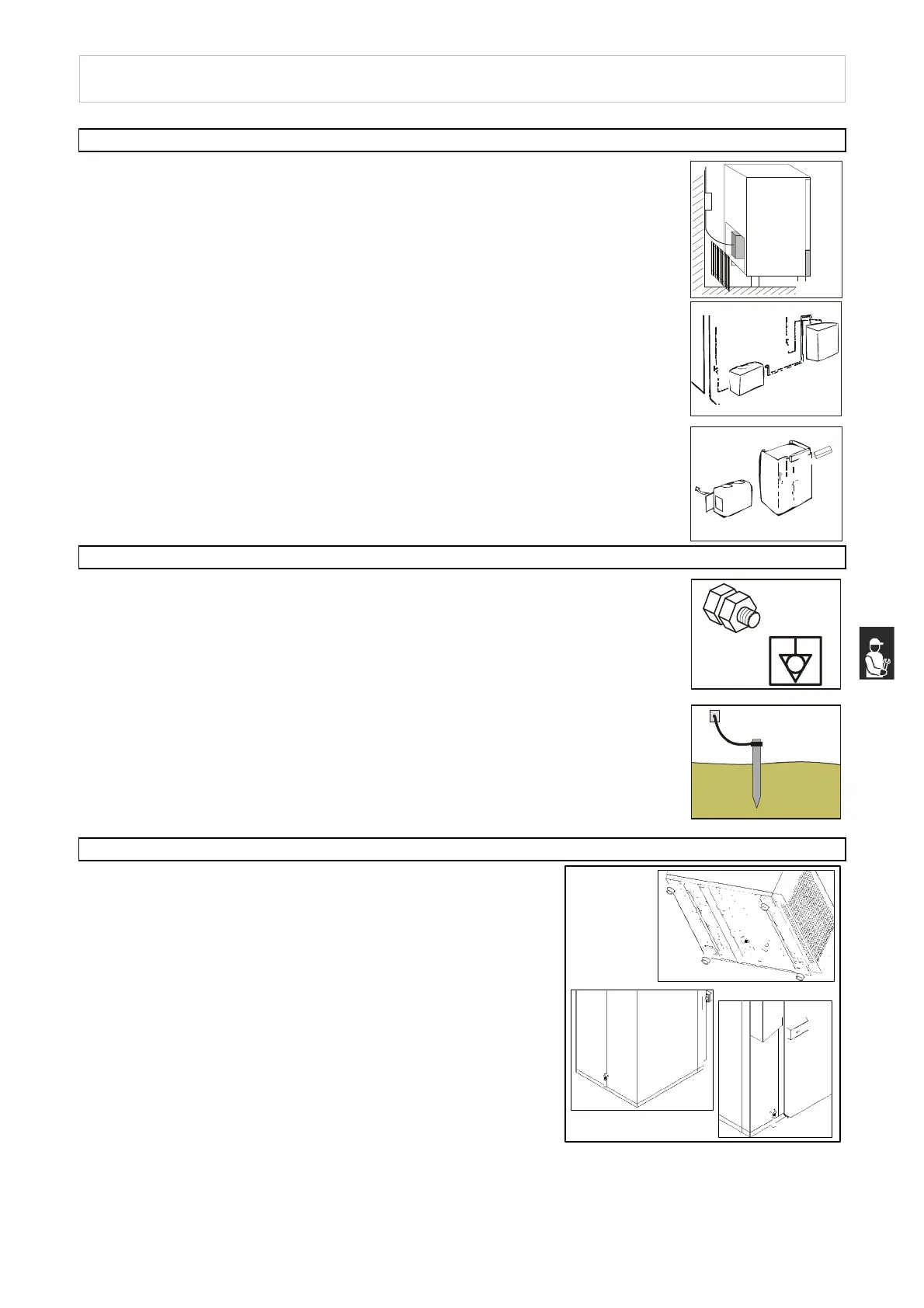

WIRING
The connection to power supply may be carried out at the back of the appliance after
removing the protection grid. (pict.31)
IMPORTANT: 10kg models are equipped with a 2-mt single-phase cable without
plug. 20kg/30kg models are equipped with a 2-mt three-phase supply cable without
plug. 40kg models are equipped with a 3.5m three-phase supply cable without plug.
In models with distance condenser the cabinet and the unit (pict.32) must be
connected separately.
Remove the electric board panel to access the cabinet terminal board. Open the
lateral panel of the electrical board (pict.33) in the condenser.
PLEASE USE CERTIFIED APPROVED MATERIALS
All wiring cables are to comply with the ratings shown on the technical specifications.
Cables are to be connected to the equipotential terminal. (pict.34)
The grounding cable is to be directly connected to a good grounding system.
(pict.35)
CONNECTION TO CONDENSATE DRAIN
On certain models, a condensation discharge φ 30mm hose
installation is necessary, "SAREL" or any similar type). The
current general and local regulations as to drains are to be
complied with. (pict.36)
The guarantee will cease and the Manufacturer will not be liable for any damage to appliances or
operators arising from the non-compliance with the and tamperings to any part of the appliance
(electric, thermodynamic or hydraulic plant).
Pict.31
Pict.32
Pict.33
Pict.34
Pict.35
30 – 40 kg
142 kg
72kg
Pict.36
