MULTIFUNCTION LIQUID CRYSTAL
DISPLAY
When the ignition key (1) is set to “
“, all
segments of the multifunction display come
on (this is a test of all components). The
display resumes the last function set after
the vehicle was stopped.
After the first 1000 kilometres and every
6000 kilometres afterwards, a SERVICE
warning is displayed.
When you see this message, contact an
aprilia Official Dealer to have the vehicle
serviced as specified in the periodic
maintenance chart, see page 41 (PERIODIC
MAINTENANCE CHART).
CAUTION
The different functions are selected and
displayed by pressing the MODE button (2)
placed on left side of the handlebar.

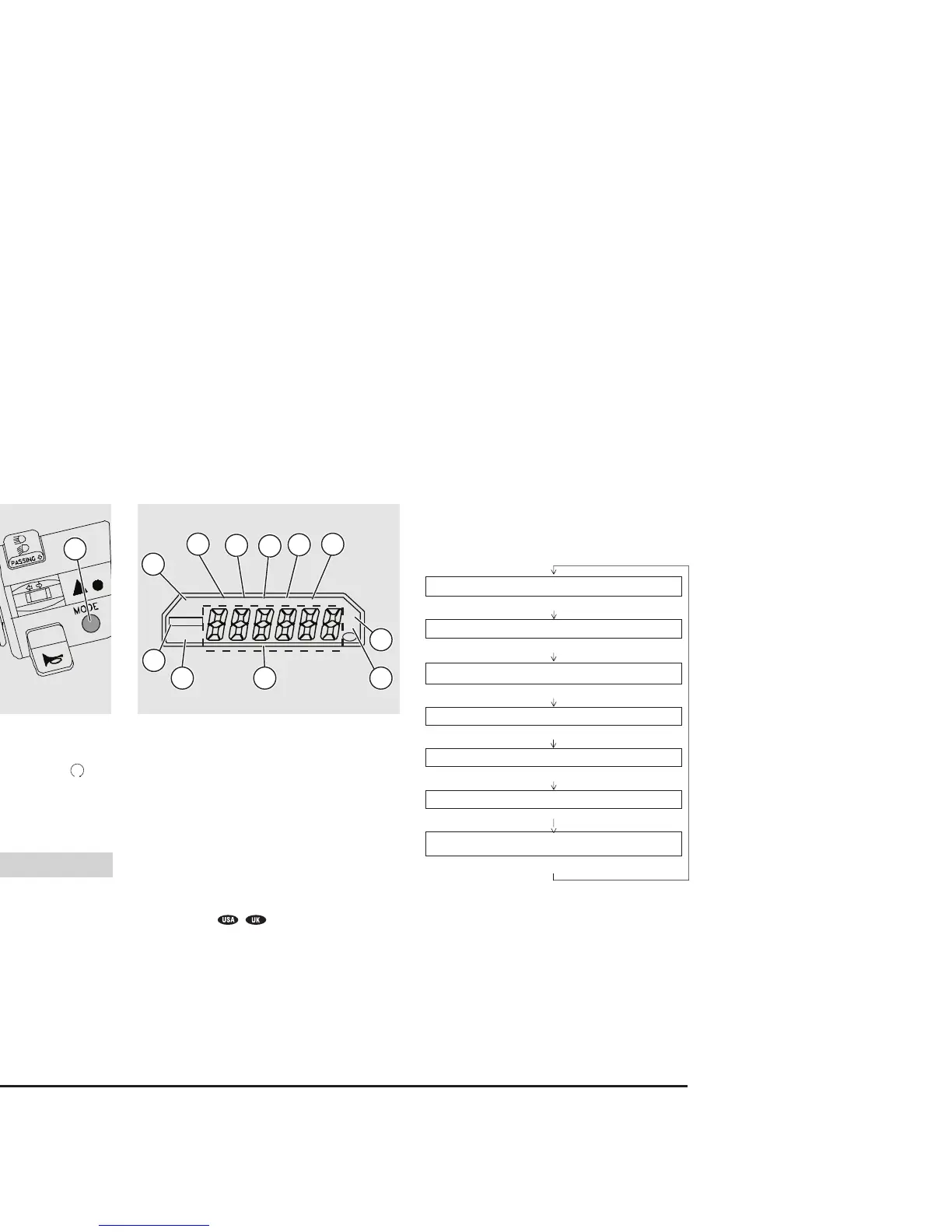

The segments of the multifunction display
are:
Lap timer indicator (3), service term icon (4),
average mph speed icon (5), average speed
(6), battery charge icon (7), average kph
speed icon (8) (the same icon is used for
“consumption” indication expressed in Km/
l), consumption expressed in mi/Gal. (used
on versions ( ) only) (9), maximum
speed icon (10), icon of the external tempe-
rature expressed in Celsius degrees (° C)
(11), icon of the external temperature
expressed in Fahrenheit degrees (° F) (12),
six-digit reading of the set functions identified
by the corresponding icons (13).
Press the MODE button repeatedly to select
in the order:
External temperature in ° C
MODE
Maximum speed (Vmax) + kph or mph
MODE
Average speed AVG (kph or mph)
MODE
Battery charge (Vbatt)
MODE
Fuel consumption (km/l or mi/Gal.)
MODE
Lap timer (LAP)
MODE
Kilometres till next service (SERVICE)
MODE
