62
use and maintenance Atlantic 500
1
2
WARNING
HORIZONTAL ADJUSTMENT
OF THE HEADLIGHT BEAM
◆ Remove the front cover, see page 54
(REMOVING THE FRONT COVER).
Adjust beam as follows:
◆ Turn the knob (as shown in the picture) at
the front of the vehicle.
◆ Turn CLOCKWISE to move the beam to
the RIGHT (as viewed from riding position).
Rotate ANTICLOCKWISE to move the
beam to the LEFT (as viewed from riding
position).
BULBS
Read page 40 (MAINTENANCE) carefully.
Fire hazard!
Keep fuel and other flammable products
away from electric components.
Before proceeding to change a bulb, rotate
the ignition switch to “
” and allow some
time for the bulb to cool down.
Wear clean gloves or use a clean, dry cloth
to handle bulbs. Do not put your fingerprints
on a bulb, as this may cause overheating
leading to failure.
If you touch a bulb with your fingers, remove
any fingerprints with alcohol to avoid early
failure.
DO NOT PULL ON THE WIRING.
NOTE Check the fuses, see page 60
(REPLACING THE FUSES) before changing
a bulb.
REPLACING THE BULBS OF THE
FRONT DIRECTION INDICATORS
Read paragraph (BULBS) at the side
carefully.
To replace the bulbs:
◆ Remove the front cover, see page 54
(REMOVING THE FRONT COVER).
Proceed with care.
Do not damage the tabs and their seats.

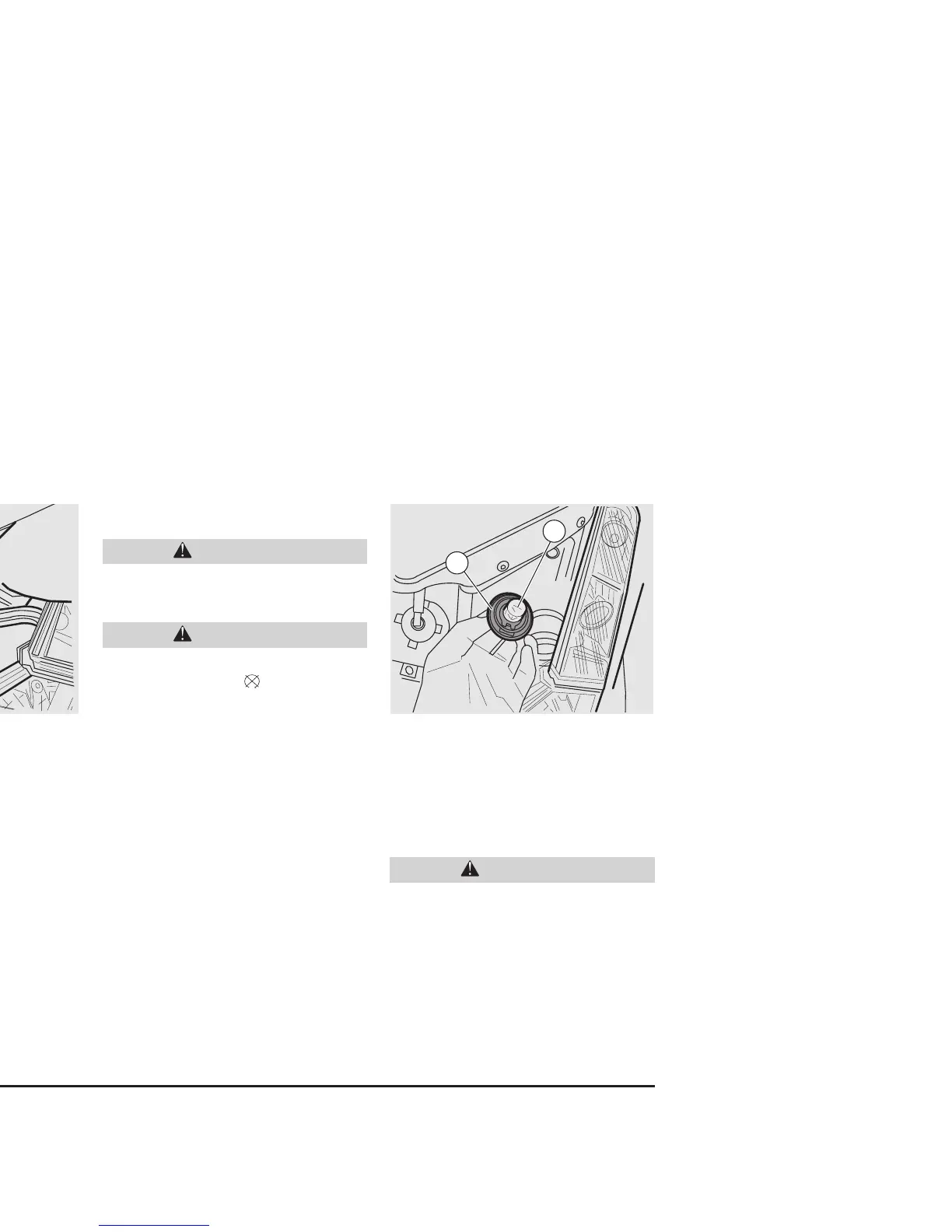

LEFT direction indicator:
◆ Working from the front of the vehicle, ro-
tate the bulb holder (1) with the bulb (2)
clockwise and extract both from their seat.
◆ Slightly press the bulb (2) and rotate it
anticlockwise.
◆ Extract the bulb from its seat.
CAUTION
CAUTION
