APRILIA ATLANTIC 500 User Manual

49
use and maintenance Atlantic 500
C
2
1
1,5mm
1,5mm
1,5mm
1,5mm

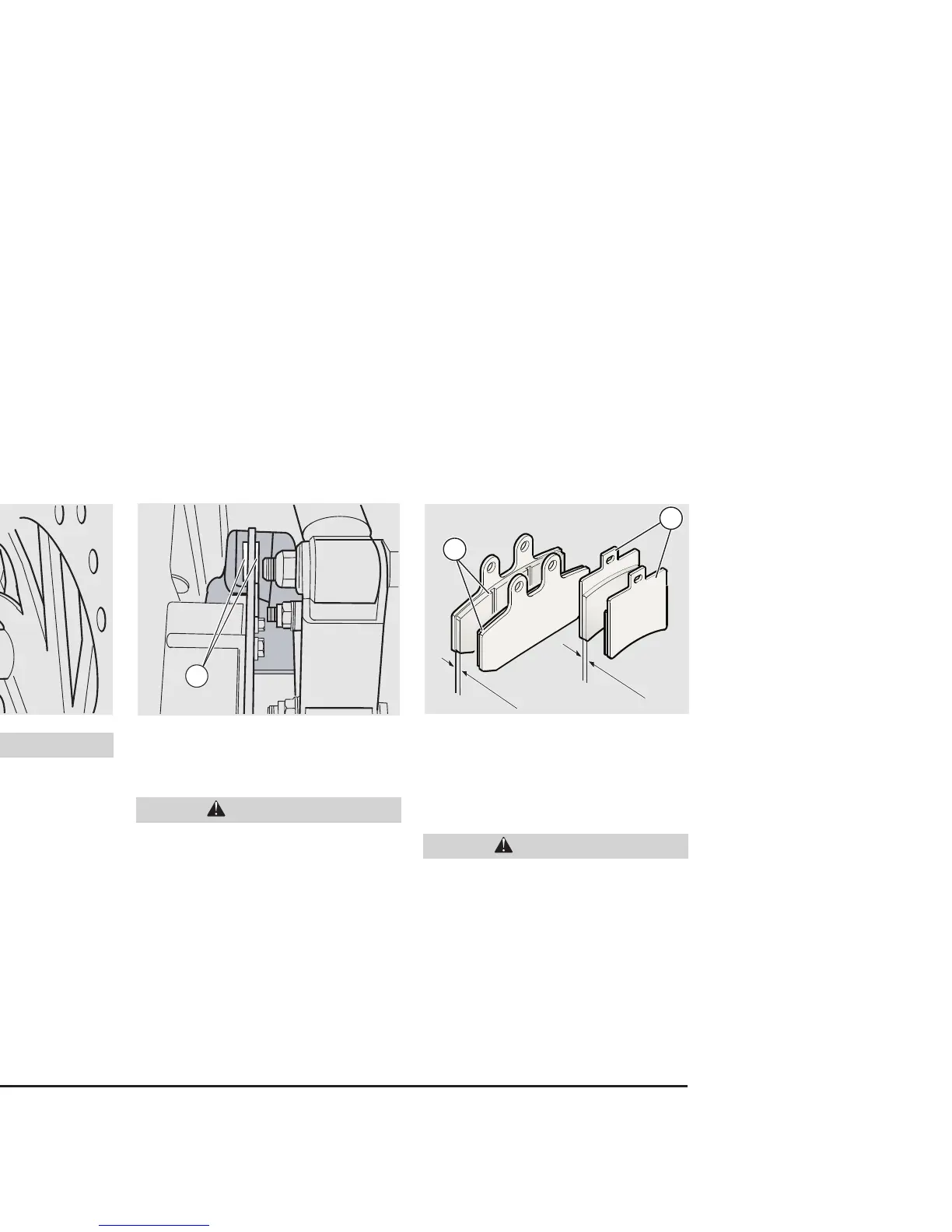

Inspect the brake pads before each ride.
This is a quick inspection procedure to
determine brake pads wear:
◆ Place the vehicle on the centre stand.
◆ Visually inspect the area between brake
disc and brake pads proceeding as follows.
FRONT BRAKE CALIPERS
– Check the pads of both calipers looking
from the bottom up at the front end.
REAR BRAKE CALIPER
– Check both pads (C) looking from the
bottom up at the rear end.
If brake pads were allowed to wear down
until uncovering the metal substrate, metal-
to-metal contact with the brake disc would
lead to rattle and the brake calliper
sparking. This will result in loss of braking
and brake disc damage, causing a
dangerous riding condition.
◆ When the lining material of even just one
of the brake pads is worn down to nearly
1.5 mm, have both brake pads changed.
– Front brake pads (1).
– Rear brake pads (2).
Have the parts replaced at an aprilia
Official Dealer.
WARNING
WARNING
WARNING

APRILIA ATLANTIC 500 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	460 cc
Cooling System	Liquid-cooled
Fuel System	Electronic Fuel Injection
Transmission	Automatic CVT
Front Suspension	Telescopic fork
Front Tire	120/70 - 14
Rear Tire	140/60 - 14
Front Brake	Single disc
Rear Brake	Single disc
Seat Height	780 mm
Fuel Capacity	15 liters
Rear Suspension	Double hydraulic shock absorber with adjustable preload
