APRILIA ATLANTIC 500 User Manual

54
use and maintenance Atlantic 500
2
1
ABS
3
3
REMOVING THE REAR-VIEW MIRRORS
Read page 40 (MAINTENANCE) carefully.
The following instructions apply to both rear-
view mirrors.
◆ Place the vehicle on the centre stand.
NOTE Make sure the individual components
of the left and right rear-view mirrors do not
become mixed up. Store them away
separately.
◆ Unscrew the cover (1).
Hold the rear-view mirror (2) in order to
prevent it from falling accidentally.
Handle plastic and paint-finished
components with care to avoid scratching
or damage.
◆ Lift the rear-view mirror (2) to remove.
◆ Collect the cover (1).

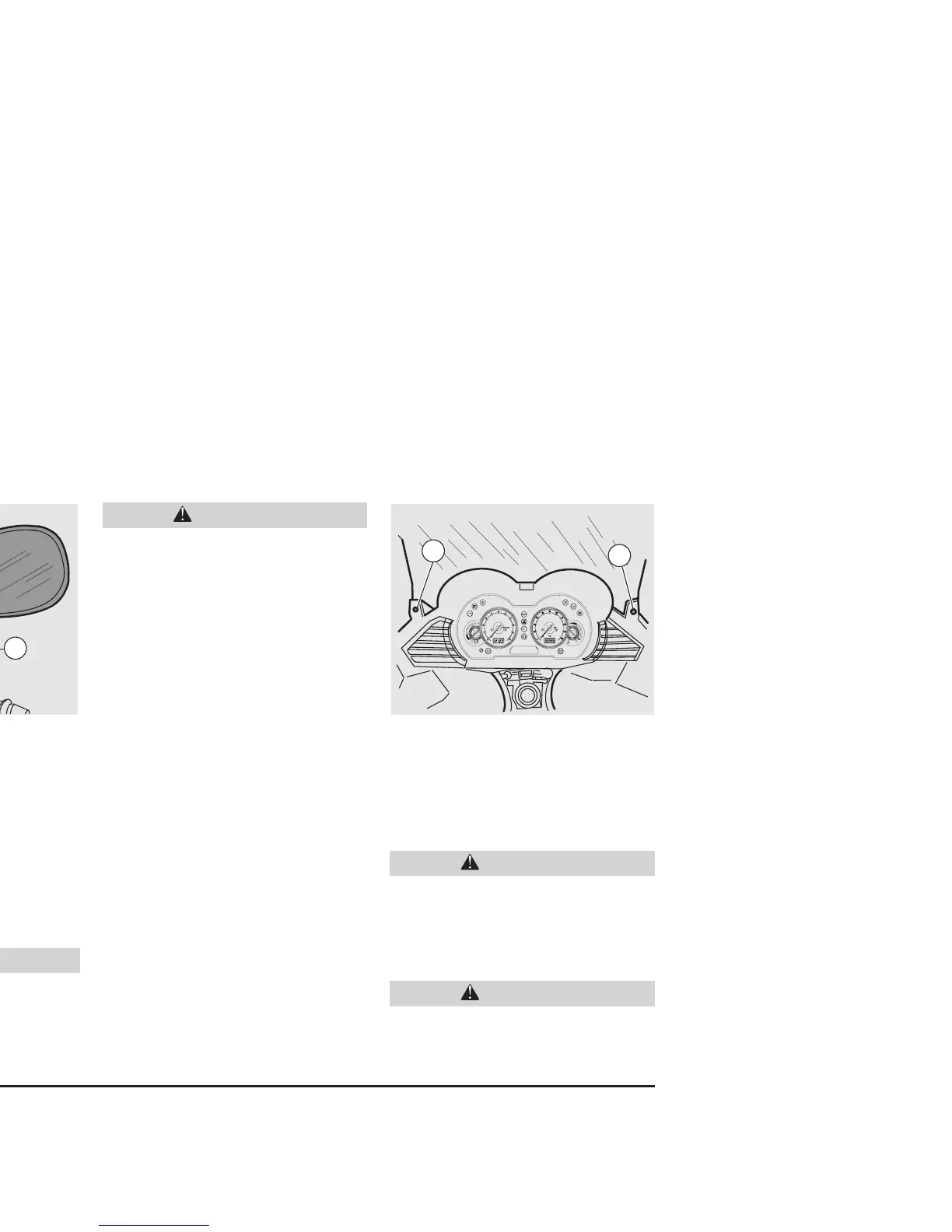

REMOVING THE FRONT
COVER
Read page 40 (MAINTENANCE) carefully
◆ Place the vehicle on the centre stand.
◆ Release and remove the two screws (3).
Proceed with care.
Do not damage the fixing tabs and their seats.
Handle plastic and paint-finished components
with care to avoid scratching or damage.
◆ Release and remove the two screws (4).
Pay attention to the fixing tab clips. They
might come loose during removal.
CAUTION
CAUTION
CAUTION
CAUTION

APRILIA ATLANTIC 500 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	460 cc
Cooling System	Liquid-cooled
Fuel System	Electronic Fuel Injection
Transmission	Automatic CVT
Front Suspension	Telescopic fork
Front Tire	120/70 - 14
Rear Tire	140/60 - 14
Front Brake	Single disc
Rear Brake	Single disc
Seat Height	780 mm
Fuel Capacity	15 liters
Rear Suspension	Double hydraulic shock absorber with adjustable preload
