ADJUSTING THE HEADLIGHT BEAM
(Fig. 53-54)
The headlight beam can be adjusted by turning the
proper screw with a screwdriver (1-Fig. 53).
By turning it clockwise the headlight beam sets up-
wards, while by turning it anticlockwise the beam
sets downwards.
To rapidly check the correct direction of the beam,
place the vehicle on flat ground, 10 m away from a
wall.
Turn on the low beam, sit on the vehicle and make
sure that the beam projected on the wall is slightly
under the horizontal line of the headlight (about 9/
10th of the total height - see Fig. 54).

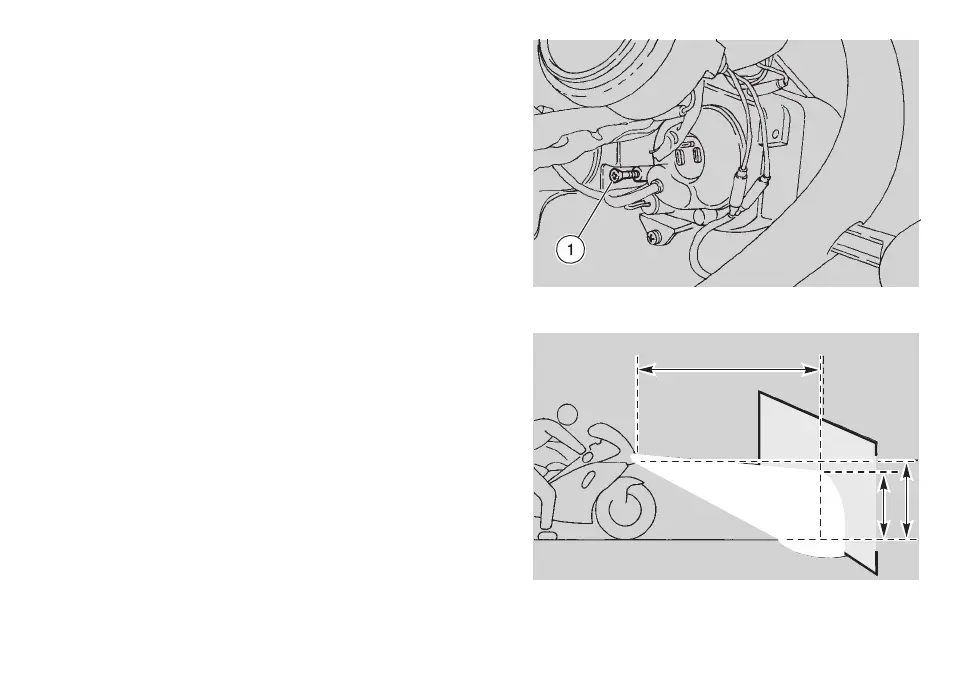

Fig. 53
Fig. 54
10 m10 m
9/10 H9/10 H
HH
