◆ Bring the slider back to its original position and
slightly lift it until the rod disappears inside the
slider itself.
◆ Turn the fork tube assembly upside down and
drain the oil.
◆ Withdraw the rod from the slider and let it drip for
about half an hour.
◆ Put back the slider on the rod and pour 330 cm
3
of
oil inside the slider (see "LUBRICANT CHART").
◆ Put back the two half-washers.
◆ Screw the slider plug thoroughly.
Left fork tube assembly:
◆ Unscrew and remove the upper plug of the slider,
remove the two half-washers and lower the rod.
◆ Turn the fork tube assembly upside down and let
all the oil out, then remove the slider.
◆ Push the fork repeatedly downwards until all the
oil has flown out completely. Then put back the
slider.
◆ Center the rod on the upper hole of the slider by
means of a M4 screw of suitable length, then pour
320 cm
3
of oil (see "LUBRICANT CHART").
◆ Put back the two half-washers.
◆ Screw the upper plug of the slider and tighten it.

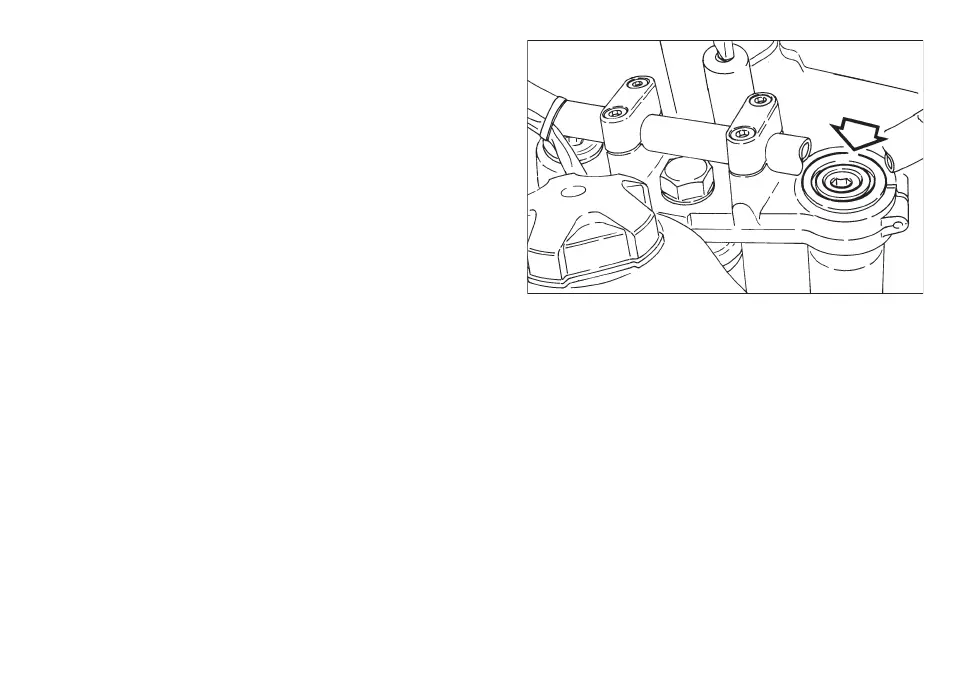

Fig. 19
