CHANGING THE HEADLIGHT BULBS
(Fig. 36)
To change the low and high beam bulbs, proceed
as follows:
◆ Remove the rubber cup (1);
◆ Remove the connector;
◆ Act on the "V"-spring and extract the socket with
the bulb;
◆ Replace the damaged bulb;
◆ To reassembly, carry out the same operations re-
versing the order.
To change the parking light bulb, proceed as fol-
lows:
◆ Remove the rubber socket (2) and extract the bulb;
◆ If it is damaged, replace the bulb.
CHANGING THE REAR LIGHT BULBS
(Fig. 37)
Proceed as follows:
◆ Unscrew the two screws (1);
◆ Remove the glass (2);
◆ Press the bulb slightly and rotate it anticlockwise;
◆ Remove the bulb from its seat.
The introduction of a new bulb can be
carried out in one sense only, since the
two guide pins are misaligned.
◆ Install a new bulb correctly, then repeat the above
operations in the reverse order for the reassem-
bly.

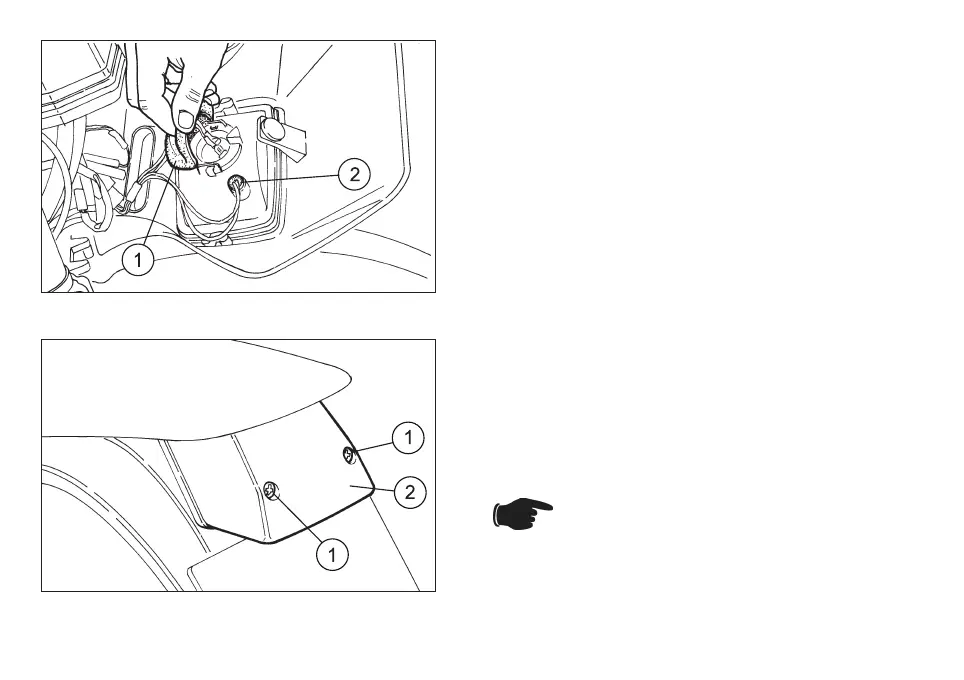

Fig. 36
Fig. 37
