24

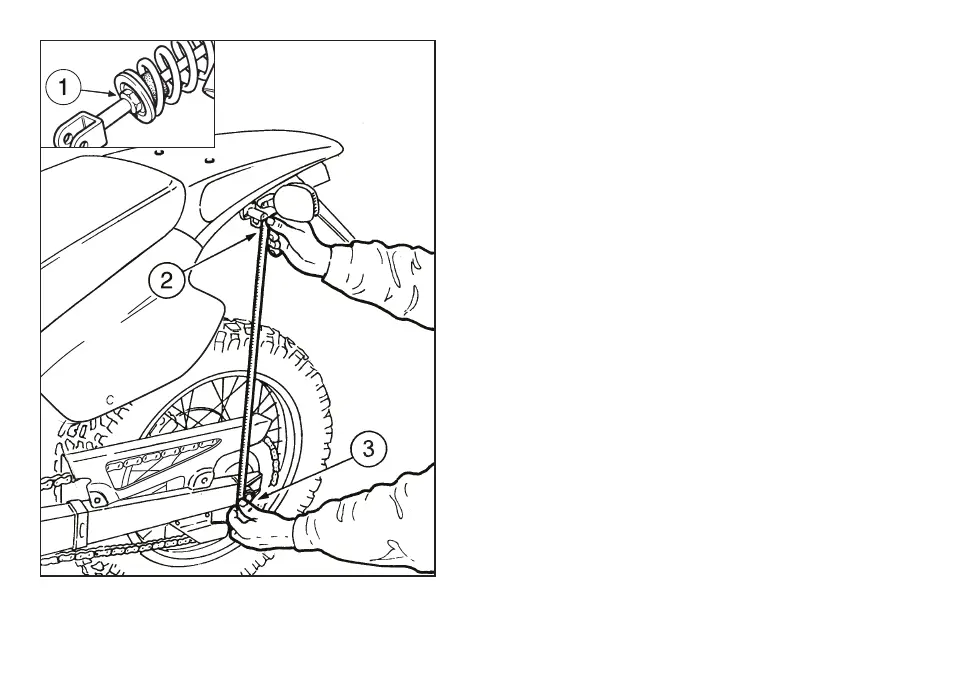

ADJUSTING THE REAR SUSPENSION
(Fig. 20)
The rear suspension comprises a single spring-
shock absorber unit and a lever unit with A.P.S.
The standard rear suspension is suitable for a driver
weighing about 75 kg.
If your weight or your needs are different, work on the
length of the shock absorber spring, by acting on the
nut (1) to restore the right driving position.
To check this position:
◆ With the vehicle in an upright position, without the
rider and prop stand, measure the distance (2-3).
◆ With the rider sitting in the riding position (feet on
the footpegs) and the vehicle in vertical position,
measure the distance (2-3) again.
◆ The difference between the two measures (shock
absrober pre-loading) must be included between
a maximum of 75 mm and a minimum of
65 mm.
Fig. 20
