5-29
CYCLE PARTS
SCARABEO 500

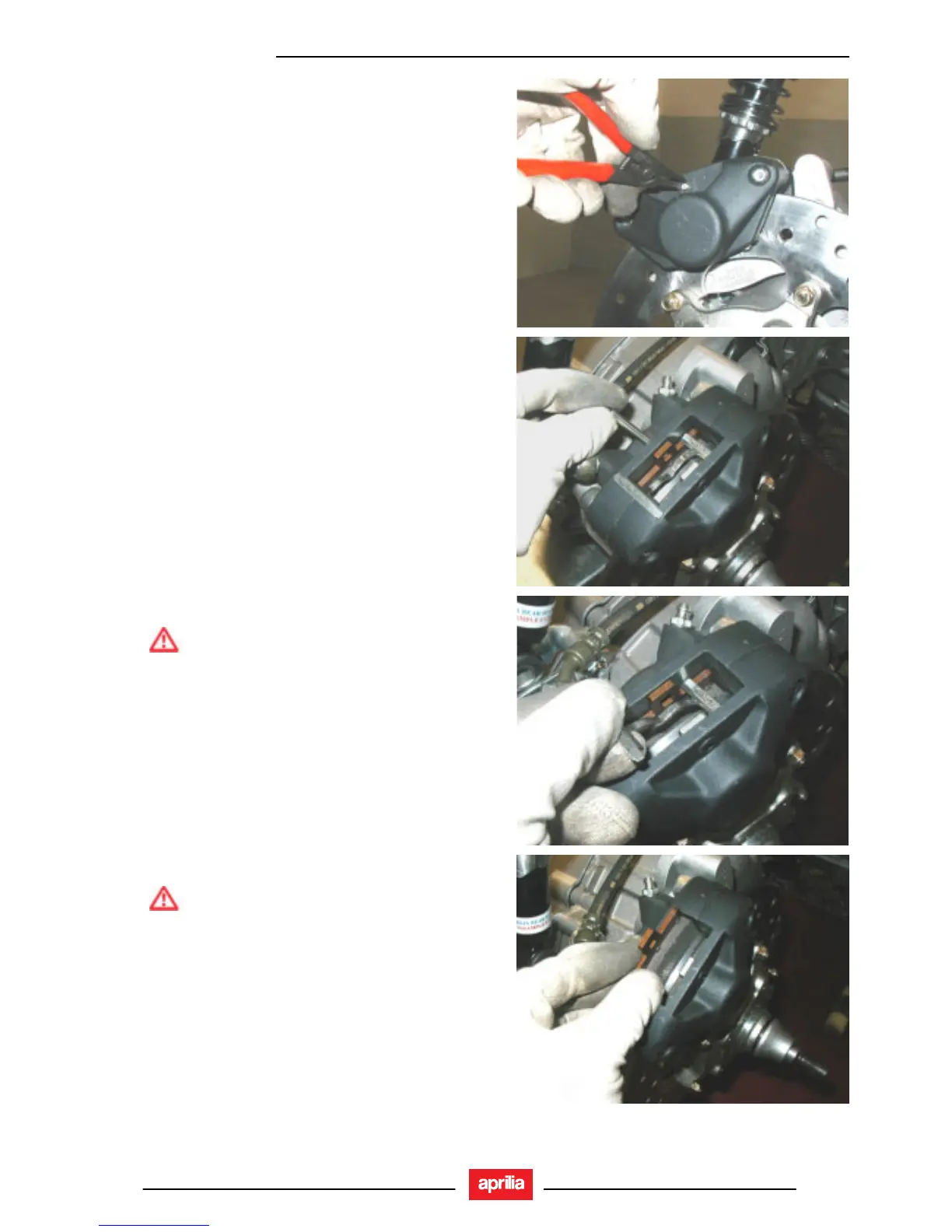

REAR BRAKE
• Remove the rear wheel, see (REMOVING THE
REAR WHEEL).
• Remove the circlip.
• Slide the pin.
• Remove the spring.
WARNING
On spring is an arrow that should always be
pointing in the direction of travel.
• Slide out the brake pads.
WARNING
Always change both pads and ensure they are
correctly in place inside the calliper.
• Install two new brake pads.
• Insert the spring.
• Fit the pin.
• Fit the circlip.

APRILIA SCARABEO 500 Specifications

General

Displacement	460 cc
Cooling System	Liquid-cooled
Fuel System	Electronic fuel injection
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Single disc
Engine Type	Single-cylinder, 4-stroke
Transmission	CVT
Power	39 HP
Max Torque	42 Nm @ 5, 500 rpm
Wheelbase	1560 mm
