APRILIA SCARABEO User Manual

High beam warning light (*) LED
Low fuel warning light (*) LED
Engine oil pressure warning light
(*)
LED
Electronic fuel injection check
warning light (*)
LED
04_31
04_32

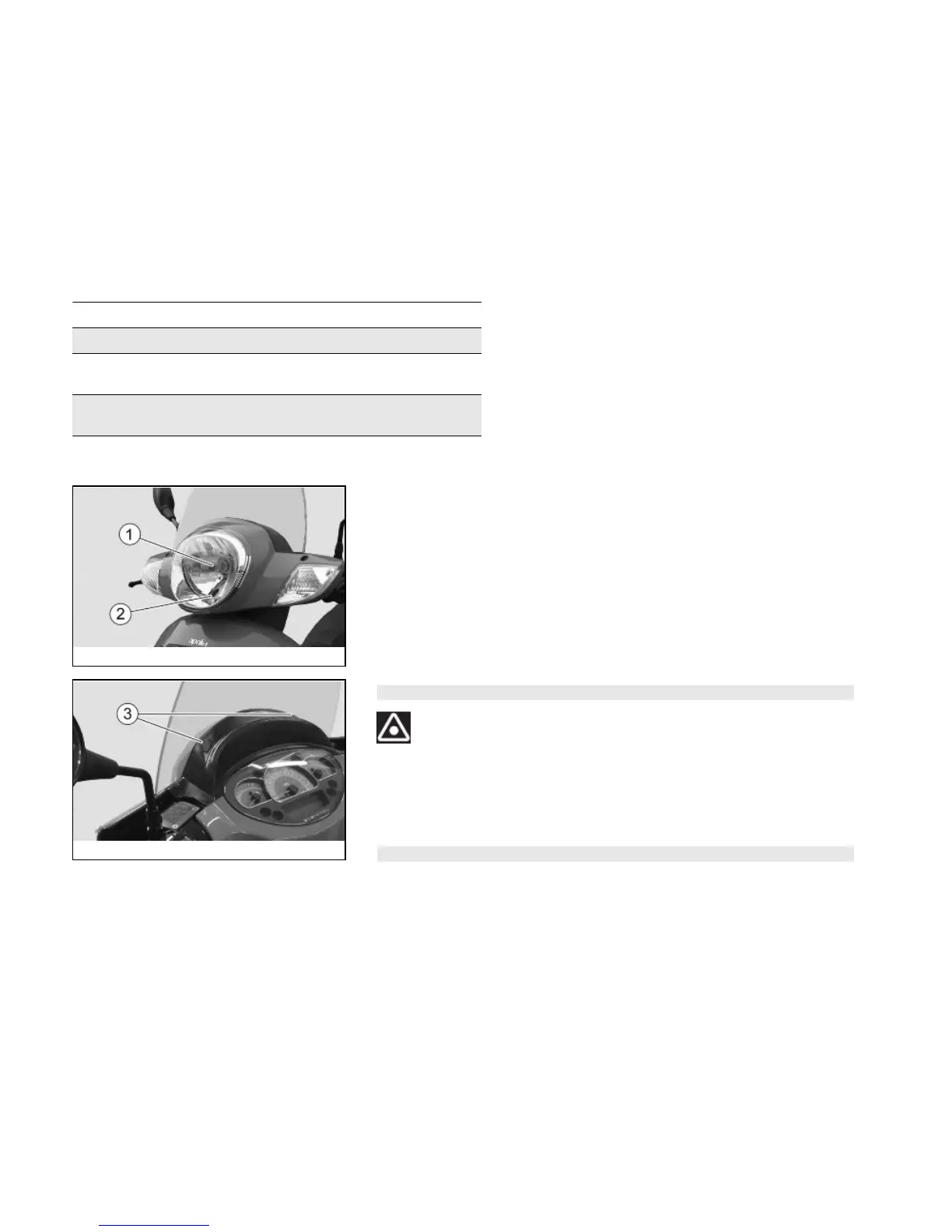

Front light group (04_31, 04_32, 04_33, 04_34, 04_35, 04_36,
04_37, 04_38)
In the headlamp there are:
•
One low/high beam light bulb «1»;
•
One tail light bulb «2»;
For replacement:
•
Use a screwdriver to remove the caps «3»;
•
Undo the two screws «4» and remove the upper frame «5»;
•
Undo the three screws «6 and remove the windshield;
•
Undo the eight screws «7» and remove the rear handlebar cover;
CAUTION
PROCEED WITH CAUTION.
DO NOT DAMAGE THE TABS AND/OR THEIR CORRESPONDING SLOTS.
HANDLE PLASTIC AND PAINTED COMPONENTS WITH CARE, DO NOT
SCRATCH OR SPOIL THEM.
CAUTION
UPON REFITTING, INSERT THE FITTING TABS CORRECTLY IN THEIR SLOTS.
82
4 Maintenance

APRILIA SCARABEO Specifications

General

Transmission	Automatic CVT
Front Brake	Disc
Engine	Single-cylinder, 4-stroke
Displacement	125 cc
Cooling	Liquid-cooled
Fuel System	Electronic fuel injection
Front Suspension	Telescopic fork
Rear Suspension	Hydraulic shock absorber
Rear Brake	Disc
