6 Aruba Instant On AP11 Access Point | Installation Guide
4. Hold the access point next to the ceiling tile rail with the ceiling tile rail mounting slots at approximately a 30-
degree angle to the ceiling tile rail (see Figure 7). Make sure that any cable slack is above the ceiling tile.
5. Pushing toward the ceiling tile, rotate the access point clockwise until the device clicks into place on the
ceiling tile rail.

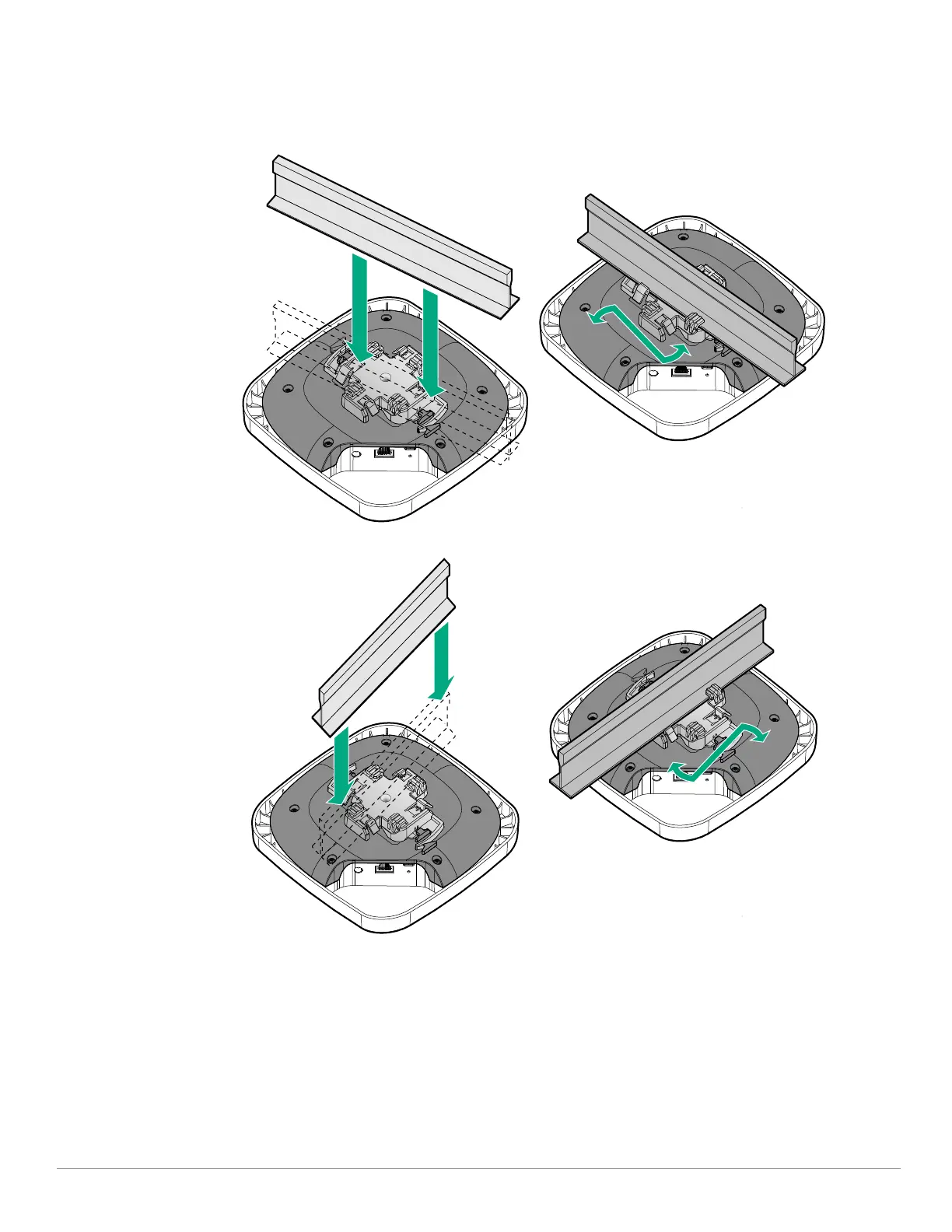

Figure 7 Mounting the AP to a 15/16” Ceiling Rail
Figure 8 Mounting the AP to a 9/16” Ceiling Rail

Aruba Instant On AP11 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Networking standards	IEEE 802.11ac, IEEE 802.11n, IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1167 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Output voltage	12 V
Placement	Ceiling, Wall
Product color	White
Cable lock slot type	Kensington
Antenna type	Internal
Antenna features	Integrated antenna
Antenna direction type	Omni-directional
Antenna gain level (max)	5.8 dBi
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 93 %
Security algorithms	WPA2
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Width	152 mm
Height	34 mm
Weight	193 g

Summary

Package Contents

Device Components

Reset Button

Details how to reset the access point to factory default settings or control LED display.

Access Point Installation

Using the Ceiling Mount Bracket

Step-by-step instructions for mounting the AP to a drop-tile ceiling.

Using the Wall/Ceiling Mount Bracket

Instructions for mounting the AP to a solid surface like a wall or ceiling.

Post-Installation and Setup

Verifying Post-Installation Connectivity

How to use the AP's LED to confirm power and initialization.

Mobile Application Installation

Guide to downloading and installing the Aruba Instant On mobile app.

Log in to Instant On Portal

Instructions for accessing the setup portal via a web browser.

Specifications and Compliance

Electrical and Environmental Specifications

Details electrical requirements and environmental operating conditions.

Safety and Regulatory Compliance

Information on RF exposure, FCC, Industry Canada, and EU regulations.
