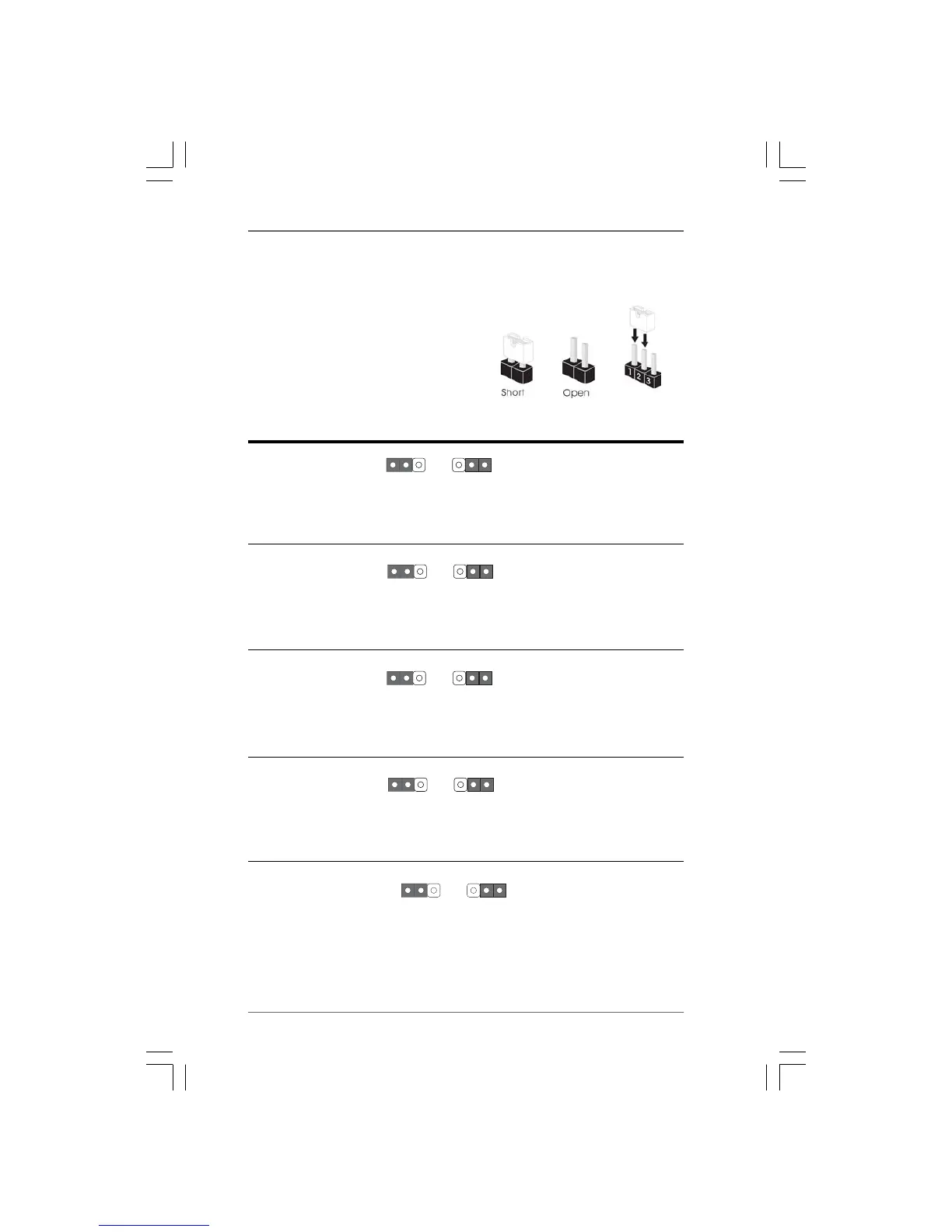

The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose pin1
and pin2 are “Short” when jumper cap is
placed on these 2 pins.
Jumper Setting
PS2_USB_PW1 Short pin2, pin3 to enable
(see p.10, No. 1) +5VSB (standby) for PS/2 or
USB wake up events.
Note: To select +5VSB, it requires 2 Amp and higher standby current provided by
power supply.
PS2_USB_PW2 Short pin2, pin3 to enable
(see p.10, No. 24) +5VSB (standby) for
USB6_7 wake up events.
Note: To select +5VSB, it requires 2 Amp and higher standby current provided by
power supply.
PS2_USB_PW3 Short pin2, pin3 to enable
(see p.10, No. 26) +5VSB (standby) for
USB8_9 wake up events.
Note: To select +5VSB, it requires 2 Amp and higher standby current provided by
power supply.
PS2_USB_PW4 Short pin2, pin3 to enable
(see p.10, No. 28) +5VSB (standby) for
USB10_11 wake up events.
Note: To select +5VSB, it requires 2 Amp and higher standby current provided by
power supply.
Clear CMOS Jumper
(CLRCMOS1)
(see p.10, No. 20)
Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes
system setup information such as system password, date, time, and system
setup parameters. To clear and reset the system parameters to default setup,
please turn off the computer and unplug the power cord from the power
+5V
1_2
+5VSB
2_3
+5V
1_2
+5VSB
2_3
+5V
1_2
+5VSB
2_3
