supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3
on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right
after you update the BIOS. If you need to clear the CMOS when you just finish
updating the BIOS, you must boot up the system first, and then shut it down
before you do the clear-CMOS action.

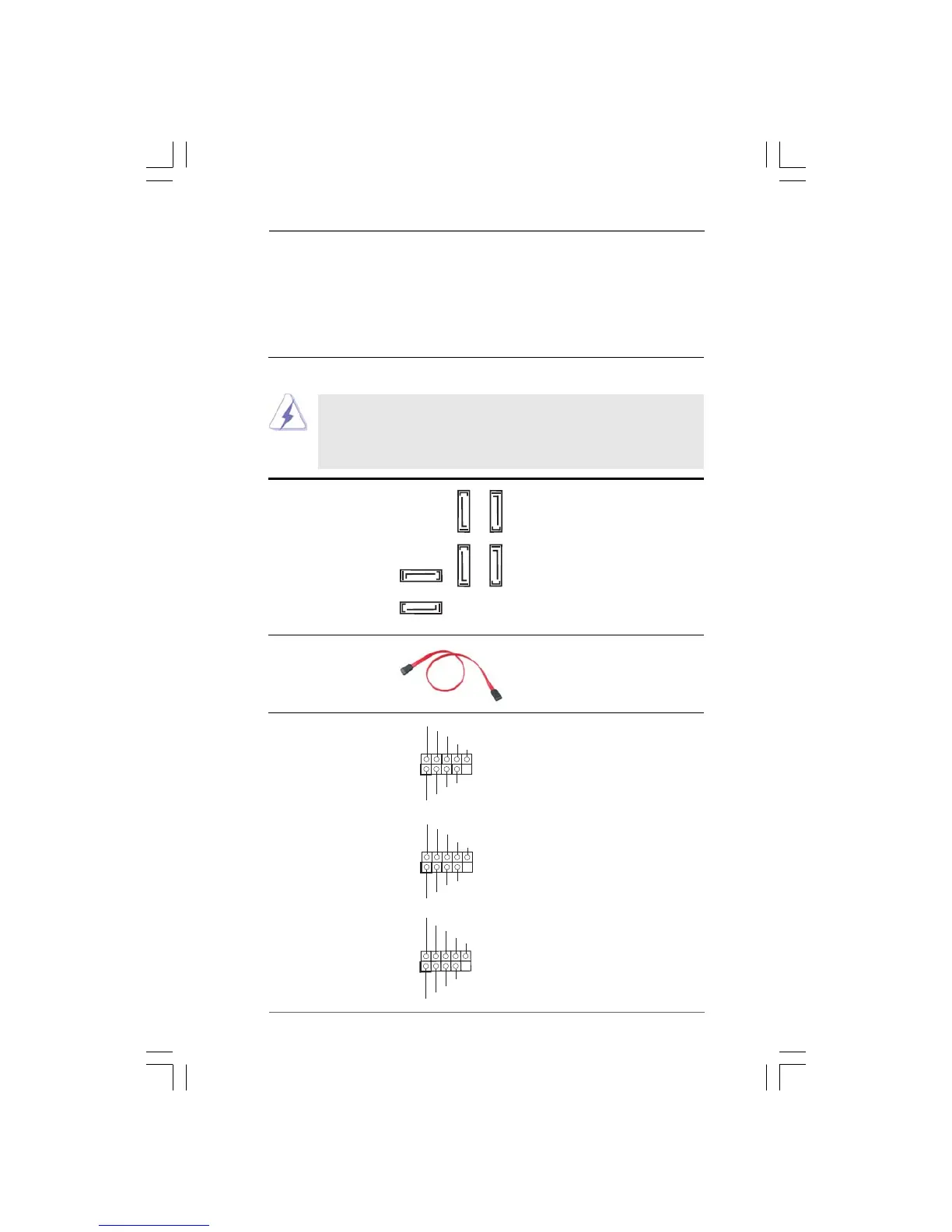

2.6 Onboard Headers and Connectors2.6 Onboard Headers and Connectors
2.6 Onboard Headers and Connectors2.6 Onboard Headers and Connectors
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
•
Serial ATAII Connectors These six Serial ATAII (SATAII)
(SATAII_1: see p.10, No. 17) connectors support SATAII
(SATAII_2: see p.10, No. 18) or SATA hard disk for internal
(SATAII_3: see p.10, No. 15) storage devices. The current
(SATAII_4: see p.10, No. 14) SATAII interface allows up to
(SATAII_5: see p.10, No. 12) 3.0 Gb/s data transfer rate.
(SATAII_6: see p.10, No. 13)
SATAII_1
SATAII_3 SATAII_5
SATAII_4 SATAII_6
SATAII_2
Serial ATA (SATA) Either end of the SATA data cable
Data Cable can be connected to the SATA /
(Optional) SATAII hard disk or the SATAII
connector on this motherboard.
USB 2.0 Headers Besides six default USB 2.0
(9-pin USB10_11) ports on the I/O panel, there are
(see p.10 No. 27) three USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB
2.0 ports.
(9-pin USB8_9)
(see p.10 No. 25)
(9-pin USB6_7)
(see p.10 No. 23)
