Asus A58M-K User Manual

ASUS A58M-K
1-3

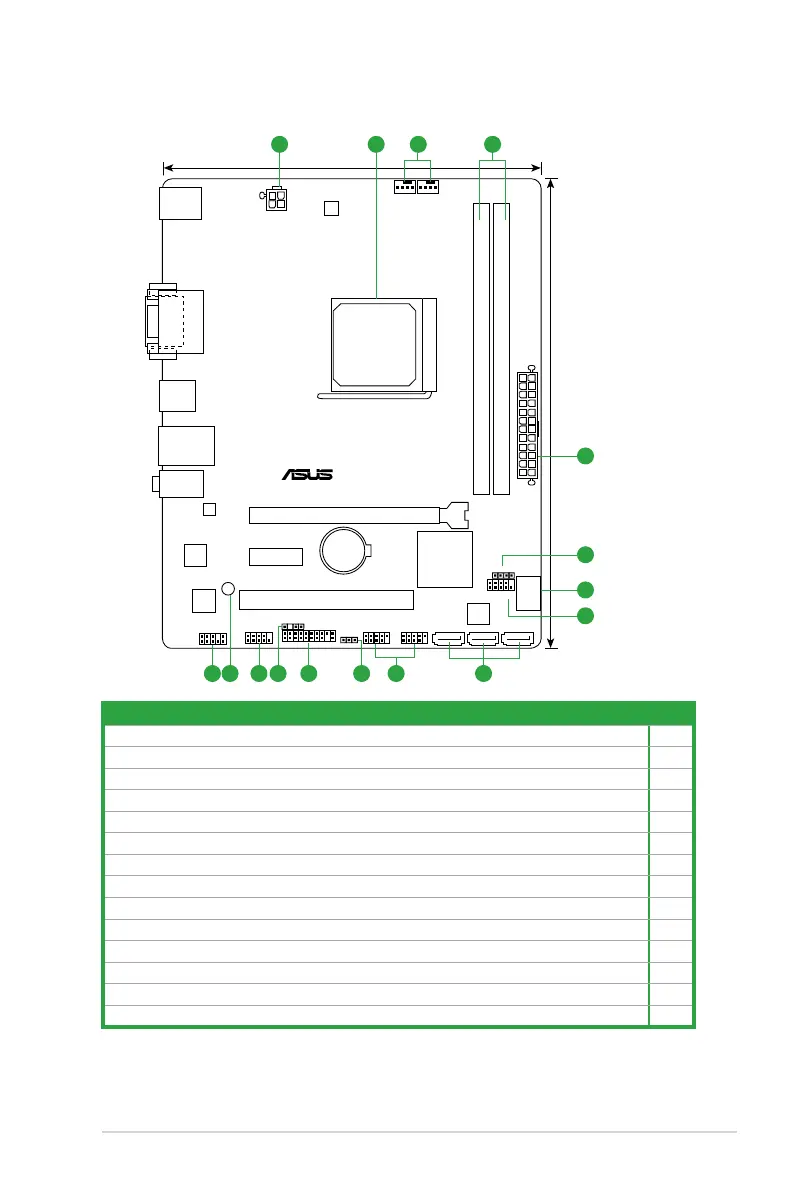

1.2.3 Motherboard layout
A58M-K
PCIEX16
PCIEX1_1
PCI1
F_PANEL
SPEAKER
COM
CLRTC
USB56 USB34
AAFP
SPDIF_OUT
ATX12V
EATXPWR
CPU_FAN CHA_FAN
BATTERY
Super
I/O
ALC
887
8111
GR
64Mb
BIOS
SB_PWR
22.6cm(8.9in)
AMD
®
A58
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module)
SATA3G_1 SATA3G_2 SATA3G_3
SATA3G_4
AUDIO
KBMS
LAN_USB12
USB1112
18.3cm(7.2in)
DVI_VGA
SOCKET FM2+
DIGI
+VRM
TPM
21 43
6
1
5
7
8910111214 13 6
Connectors/Jumpers/Slots/LED Page
1. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 1-15
2. AMD FM2+ socket 1-4
3. CPU and chassis fan connectors (4-pin CPU_FAN and 4-pin CHA_FAN) 1-14
4. DDR3 DIMM slots 1-7
5. Speaker connector (4-pin SPEAKER) 1-17
6. SATA 3.0Gb/s connectors (7-pin SATA3G_1~4) 1-16
7. System panel connector (10-1 pin F_PANEL) 1-17
8. USB 2.0 connectors (10-1 pin USB34, USB56) 1-19
9. Clear RTC RAM (3-pin CLRTC) 1-12
10. TPM connector (20-1 pin TPM) 1-18
11. Digital audio connector (4-1 pin SPDIF_OUT) 1-15
12. Serial port connector (10-1 pin COM) 1-16
13. Standby power LED (SB_PWR) 1-19
14. Front panel audio connector (10-1 pin AAFP) 1-18

Asus A58M-K Specifications

General

Memory slots type	DIMM
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600, 1866, 2133, 2400 MHz
Processor socket	Socket FM2+
Processor manufacturer	AMD
Compatible processor series	AMD A
CPU fan connector	Yes
USB 2.0 connectors	2
Number of COM connectors	1
Number of SATA connectors	4
Number of SATA III connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	-
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	SATA II
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek 8111GR
Ethernet interface type	Gigabit Ethernet
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A58 FCH (Bolton D2)
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
ACPI version	4.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	183 mm
Width	226 mm
