Chapter 1: Product introduction
Toconfigurea7.1-channelaudiooutput:
Use a chassis with HD audio module in the front panel to support a 7.1-channel audio
output.
7. USB 2.0 ports. These 4-pin Universal Serial Bus (USB) ports are for USB 2.0/1.1
devices.
8. DVI-D port. This port is for any DVI-D compatible device. DVI-D can’t be converted to
output RGB Signal to CRT and isn’t compatible with DVI-I.
9. PS/2 Keyboard port (purple). This port is for a PS/2 keyboard.
1.7.2 Internal connectors
1. CPUandchassisfanconnectors(4-pinCPU_FAN,and4-pinCHA_FAN)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
DO NOT forget to connect the fan cables to the fan connectors. Insufcient air ow inside
the system may damage the motherboard components. These are not jumpers! DO NOT
place jumper caps on the fan connectors.
• The CPU_FAN connector supports a CPU fan of maximum 2A (24 W) fan power.
• The CPU_FAN and CHA_FAN connectors support the ASUS Fan Xpert feature.

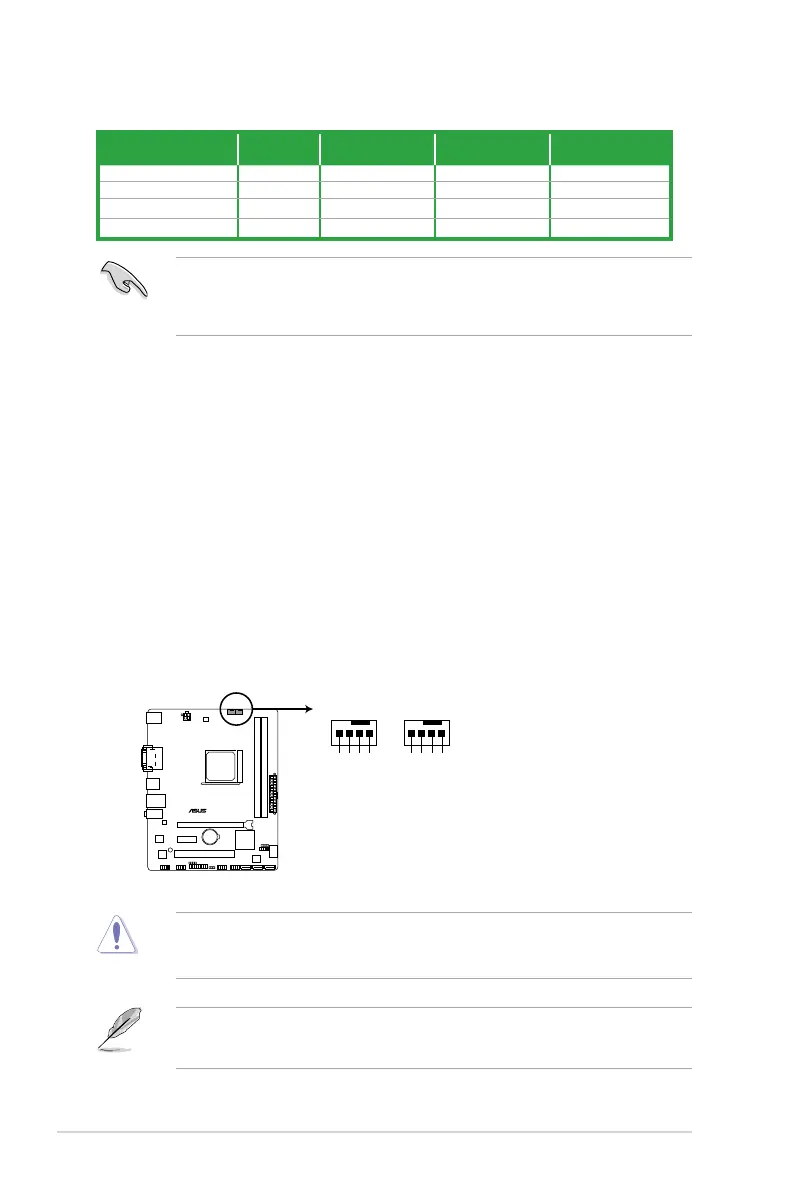

A58M-K
A58M-K Fan connectors
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
CHA
_FAN
CHA FAN PWM
CHA FAN IN
CHA FAN PWR
GND
Audio2.1,4.1,5.1,or7.1-channelconfiguration
Port
Headset 2.1-
channel
4.1-channel 5.1-channel 7.1-channel
Light Blue (Rear panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out
Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center
Lime (Front panel) — — — Side Speaker Out

Asus A58M-K Specifications

General

Memory slots type	DIMM
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600, 1866, 2133, 2400 MHz
Processor socket	Socket FM2+
Processor manufacturer	AMD
Compatible processor series	AMD A
CPU fan connector	Yes
USB 2.0 connectors	2
Number of COM connectors	1
Number of SATA connectors	4
Number of SATA III connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	-
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	SATA II
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek 8111GR
Ethernet interface type	Gigabit Ethernet
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A58 FCH (Bolton D2)
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
ACPI version	4.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	183 mm
Width	226 mm
