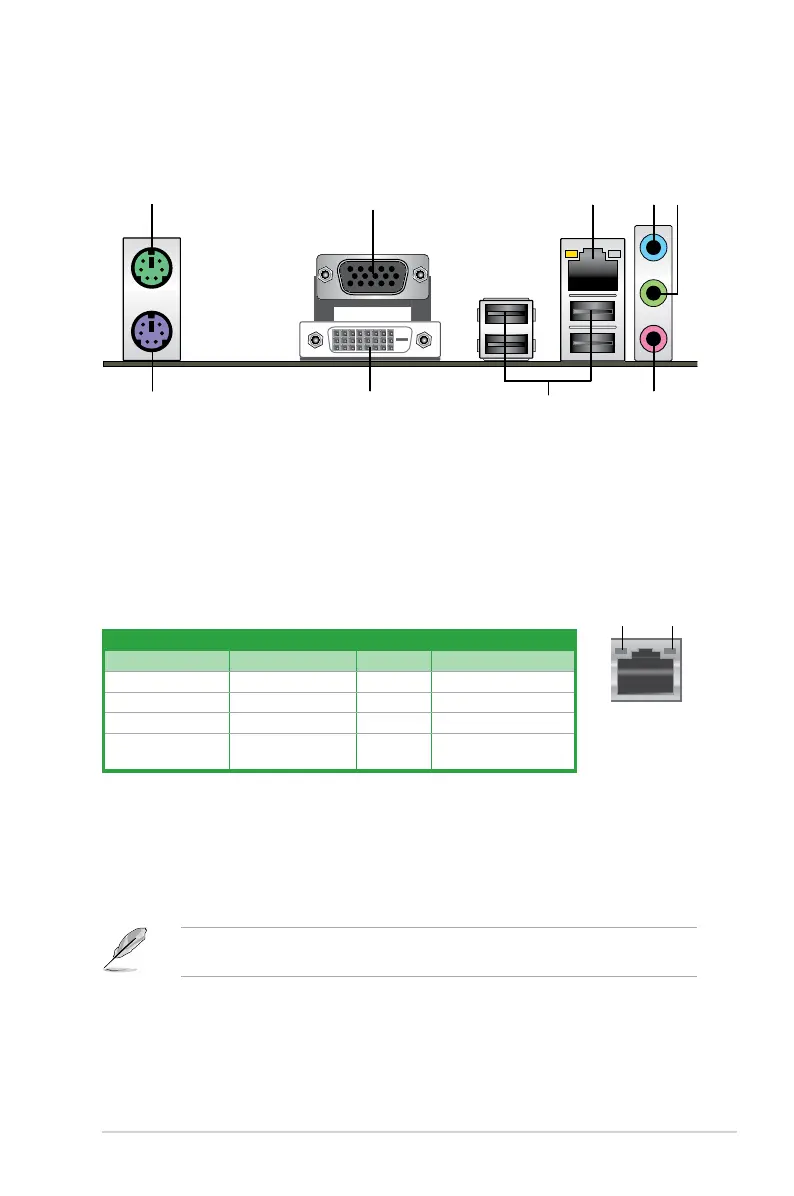

1.7 Connectors
1.7.1 Rear panel connectors
1. PS/2 Mouse port (green). This port is for a PS/2 mouse.
2. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
4 53
67
1
9
2
8
4. Line In port (light blue). This port connects to the tape, CD, DVD player, or other
audio sources.
5. Line Out port (lime). This port connects to a headphone or a speaker. In the 4.1, 5.1,
and 7.1-channel congurations, the function of this port becomes Front Speaker Out.
6. Microphone port (pink). This port connects to a microphone.
Refer to the audio conguration table for the function of the audio ports in 2.1, 4.1, 5.1, or
7.1-channel conguration.
LAN port
SPEED
LED
ACT/LINK
LED
Activity/Link LED Speed LED
Status Description Status Description
Off No link OFF 10Mbps connection
Orange Linked ORANGE 100Mbps connection
Orange (Blinking) Data activity GREEN 1Gbps connection
Orange (Blinking
then steady)
Ready to wake up
from S5 mode
LAN port LED indications

Asus A58M-K Specifications

General

Memory slots type	DIMM
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600, 1866, 2133, 2400 MHz
Processor socket	Socket FM2+
Processor manufacturer	AMD
Compatible processor series	AMD A
CPU fan connector	Yes
USB 2.0 connectors	2
Number of COM connectors	1
Number of SATA connectors	4
Number of SATA III connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	-
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	SATA II
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek 8111GR
Ethernet interface type	Gigabit Ethernet
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A58 FCH (Bolton D2)
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
ACPI version	4.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	183 mm
Width	226 mm
