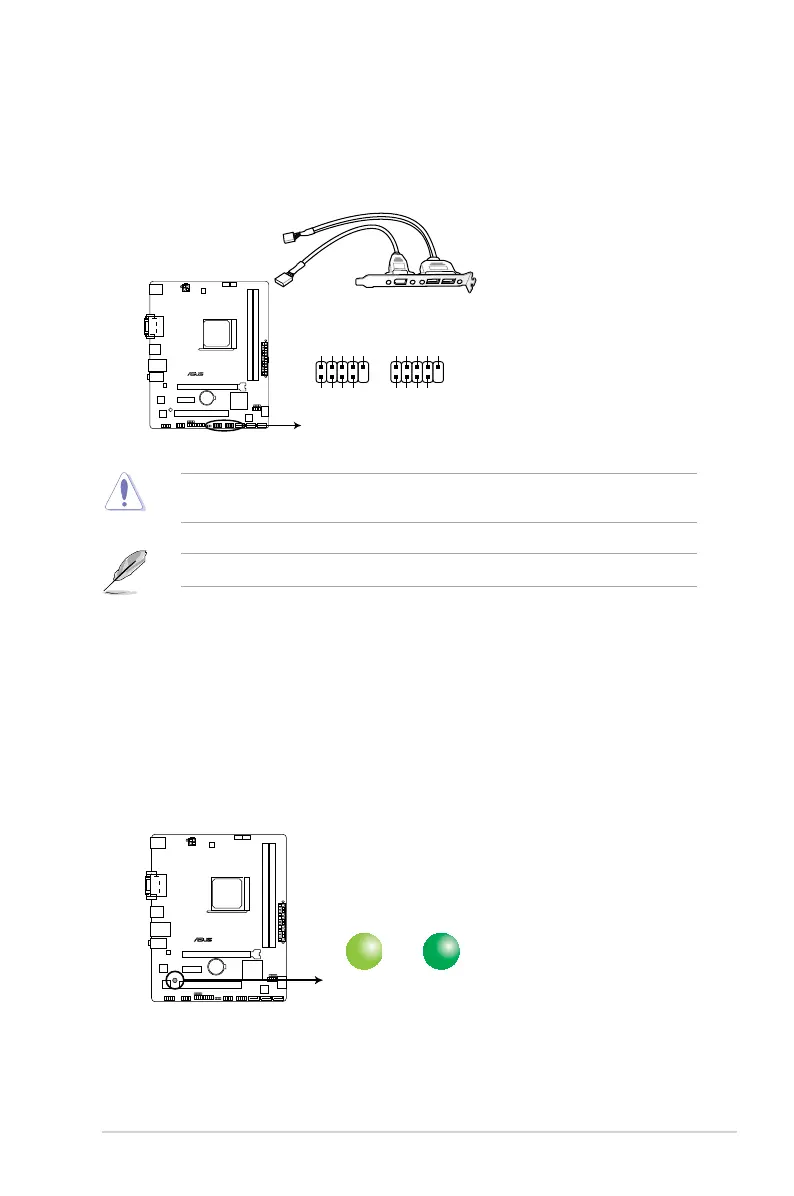

10. USB2.0connectors(10-1pinUSB34,USB56)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specication that supports up to
480Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.
A58M-K
A58M-K USB2.0 connectors
PIN 1
USB+5V USB_P5- USB_P5+ GND NC
USB+5V
USB_P6-
USB_P6+
GND
USB56 USB34
PIN 1
USB+5V USB_P3- USB_P3+ GND NC
USB+5V
USB_P4-
USB_P4+
GND
1.8 Onboard LEDs
1. Standby Power LED
The motherboard comes with a standby power LED that lights up to indicate that the
system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should
shut down the system and unplug the power cable before removing or plugging in any
motherboard component. The illustration below shows the location of the onboard LED.
SB_PWR
ON
Standby Power
Powered Off
OFF
A58M-K
A58M-K Onboard LED

Asus A58M-K Specifications

General

Memory slots type	DIMM
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600, 1866, 2133, 2400 MHz
Processor socket	Socket FM2+
Processor manufacturer	AMD
Compatible processor series	AMD A
CPU fan connector	Yes
USB 2.0 connectors	2
Number of COM connectors	1
Number of SATA connectors	4
Number of SATA III connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	-
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	SATA II
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek 8111GR
Ethernet interface type	Gigabit Ethernet
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A58 FCH (Bolton D2)
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
ACPI version	4.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	183 mm
Width	226 mm
