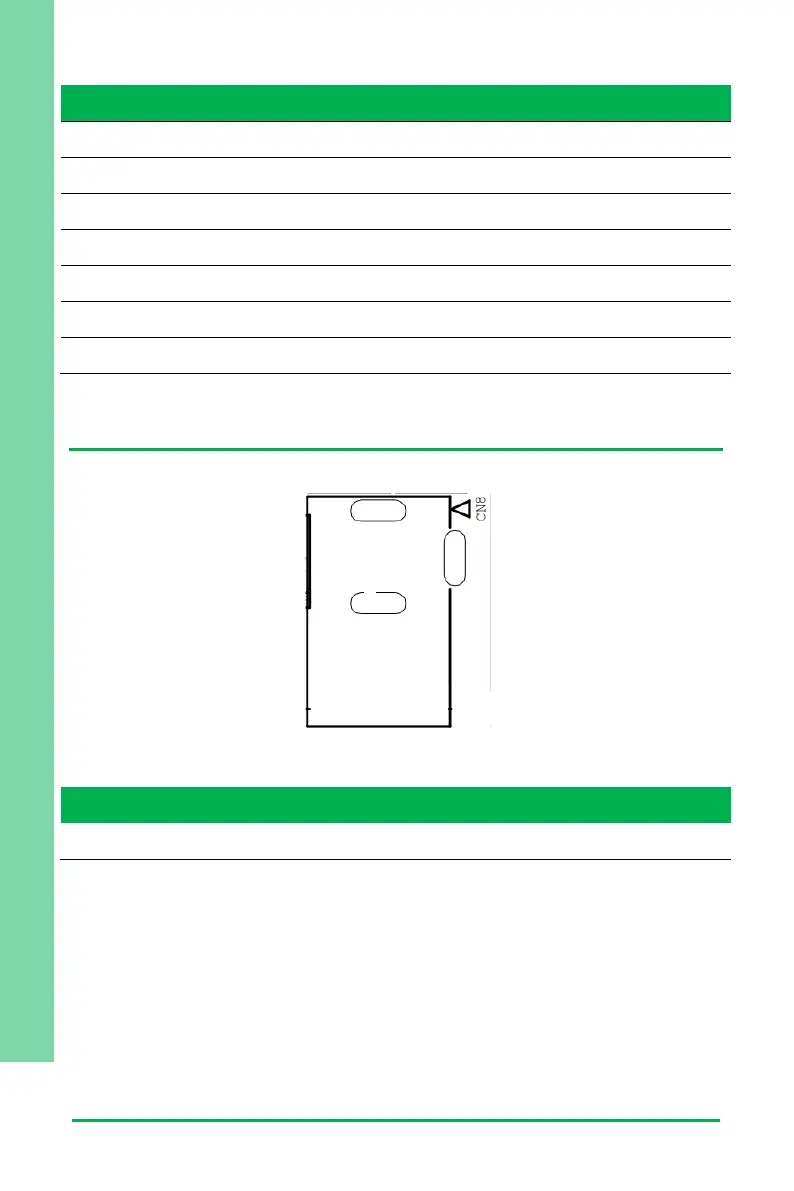

Chapter 2 – Hardware Information 14
Maker Board UPS-EHL01 UP Squared V2
Pin
Signal
Pin
Signal
63
KEY
64
KEY
65
KEY
66
KEY
67
NC
68
SUS_CLK_CPU
69
NC
70
+3P3V_NGFF
71
GND
72
+3P3V_NGFF
73
GND
74
+3P3V_NGFF
75
GND
-
-
2.3.7 Power Input (CN6)
Pin
Signal
Pin
Signal
Pin
Signal
1
VCC_12V
2
GND
3
GND
