Asus AAEON UP Squared V2 User Manual

Chapter 2 – Hardware Information 17
Maker Board UPS-EHL01 UP Squared V2

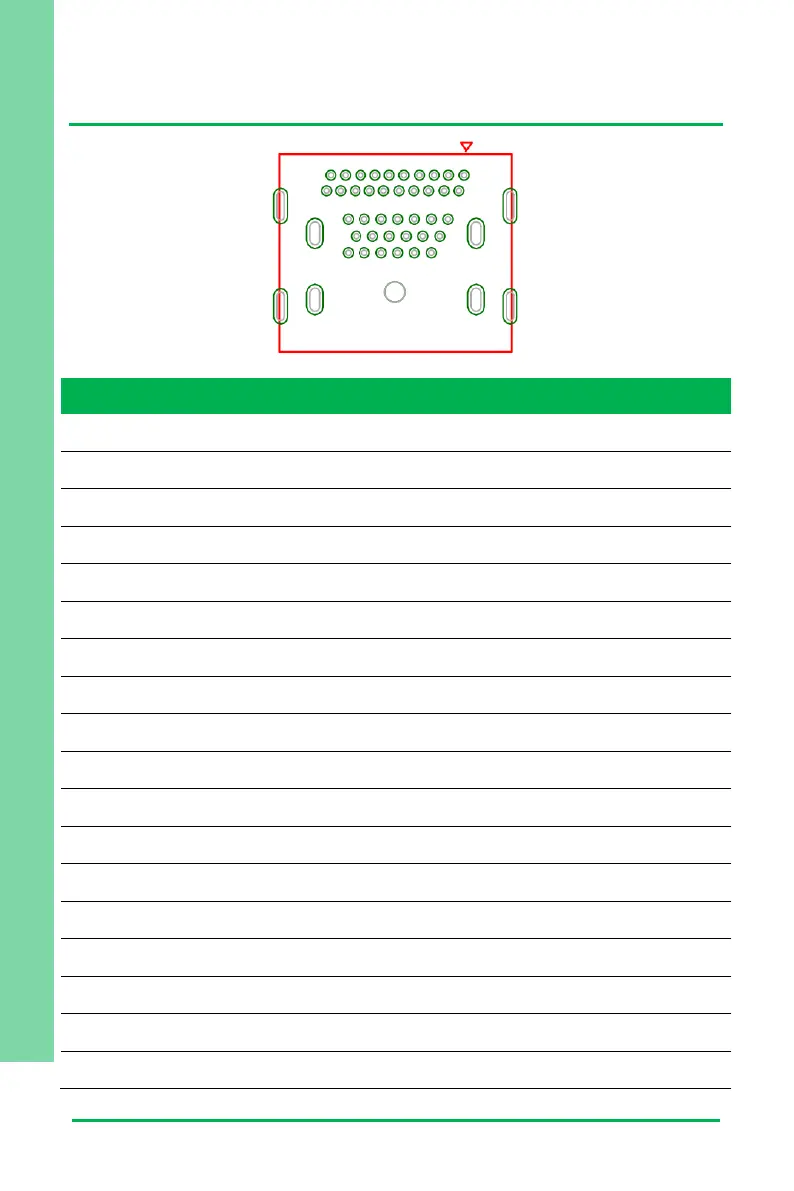

2.3.10 DP/HDMI (CN9)
Pin
Signal
Pin
Signal
1
TXP_DP_0
2
GND
3
TXN_DP_0
4
TXP_DP_1
5
GND
6
TXN_DP_1
7
TXP_DP_2
8
GND
9
TXN_DP_2
10
CLK_DP_D_P
11
GND
12
CLK_DP_D_N
13
GND
14
GND
15
AUX_P
16
GND
17
AUX_N
18
DP_HPD
19
GND
20
+3.3V
21
TXP_HDMI_0
22
GND
23
TXN_HDMI_0
24
TXP_HDMI_1
25
GND
26
TXN_HDMI_1
27
TXP_HDMI_2
28
GND
29
TXN_HDMI_2
30
CLK_HDMI_DP
31
GND
32
CLK_HDMI_DN
33
HDMI_CEC_O
34
NC
35
DDCCLK
36
DDCDATA
