Chapter 2 – Hardware Information 21
Maker Board UPS-EHL01 UP Squared V2

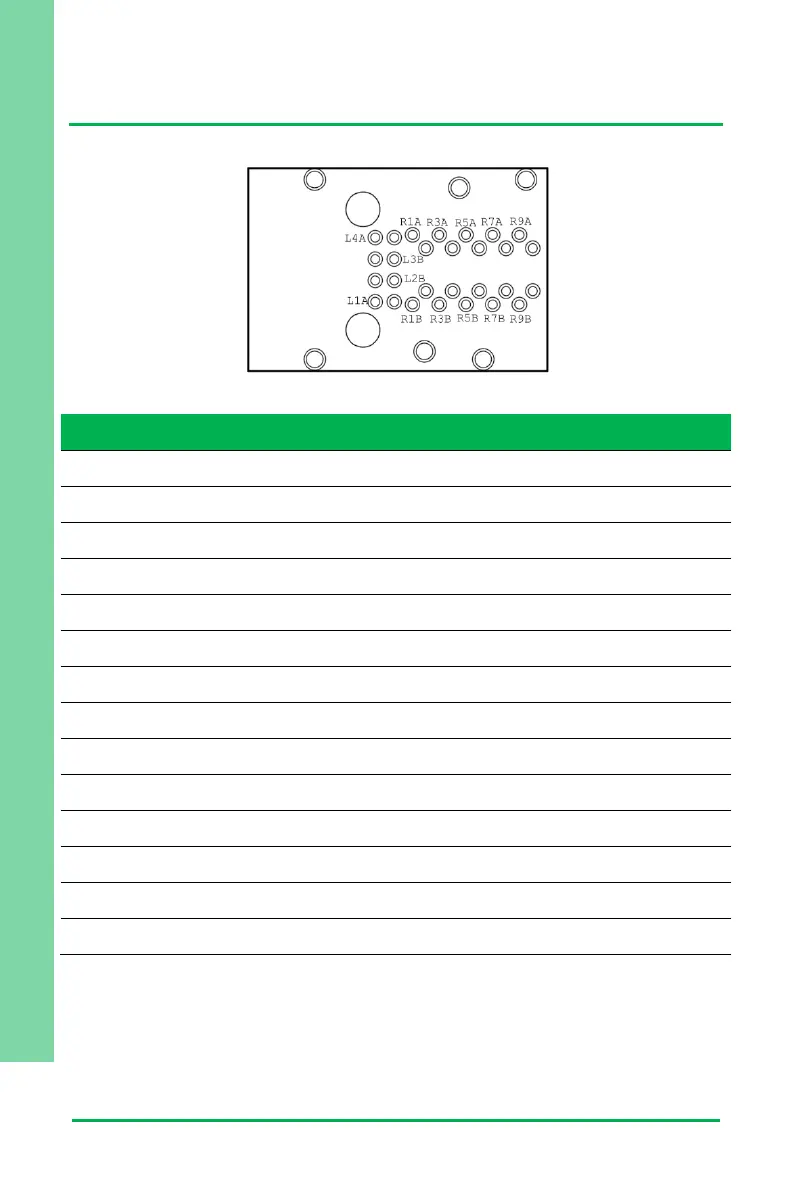

2.3.13 LAN (CN12)
Pin
Signal Description
Pin
Signal Description
L1A
LAN1_ACTLEDN
L1B
LAN2_ACTLEDN
L2A
LAN1_ACTLEDP
L2B
LAN2_ACTLEDP
L3A
LAN1_LINK1000#
L3B
LAN2_LINK1000#
L4A
LAN1_LINK100#
L4B
LAN2_LINK100#
R1A
LAN1_MDI0+
R1B
LAN2_MDI0+
R2A
LAN1_MDI0-
R2B
LAN2_MDI0-
R3A
LAN1_MDI1+
R3B
LAN2_MDI1+
R4A
LAN1_MDI1-
R4B
LAN2_MDI1-
R5A
LAN1_MDI2+
R5B
LAN2_MDI2+
R6A
LAN1_MDI2-
R6B
LAN2_MDI2-
R7A
LAN1_MDI3+
R7B
LAN2_MDI3+
R8A
LAN1_MDI3-
R8B
LAN2_MDI3-
R9A
LAN1_DAC
R9B
LAN2_DAC
R10A
LAN1_GND
R10B
LAN2_GND
