Asus AAEON UP Squared V2 User Manual

Chapter 2 – Hardware Information 16
Maker Board UPS-EHL01 UP Squared V2

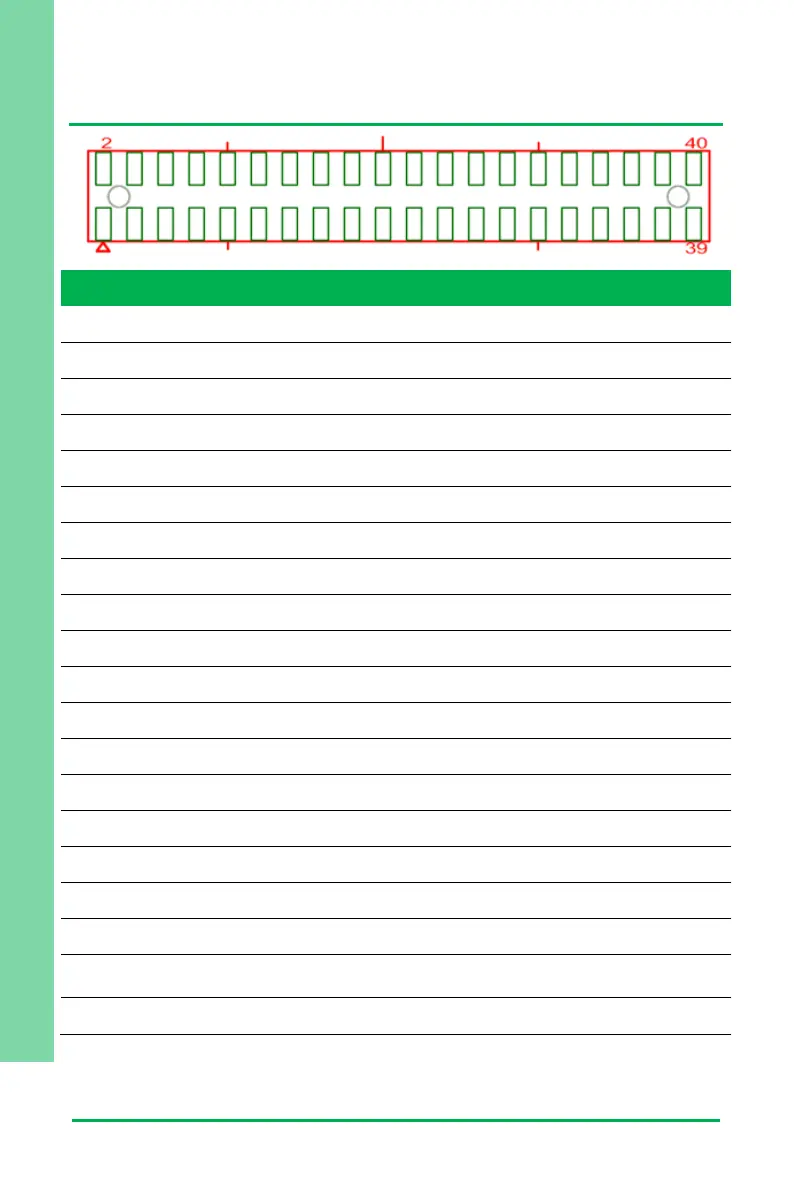

2.3.9 HAT 40 (CN8)
Pin
Signal
Pin
Signal
1
3.3V@0.5A
2
5V@0.5A
3
I2C1_SDA (GPIO 1)
4
5V@0.5A
5
I2C1_SCL (GPIO 2)
6
GND
7
GPIO_ADC (GPIO 3)
8
UART_TXD (GPIO 16)
9
GND
10
UART_RXD (GPIO 17)
11
UART_RTS (GPIO 4)
12
I2S_BCLK (GPIO 18)
13
GPIO 5
14
GND
15
GPIO 6
16
GPIO 19
17
3.3V@0.5A
18
GPIO 20
19
SPI_MOSI (GPIO 7)
20
GND
21
SPI_MISO (GPIO 8)
22
GPIO 21
23
SPI_CLK (GPIO 9)
24
SPI_FS0 (GPIO 22)
25
GND
26
SPI_FS1 (GPIO 23)
27
I2C0_SDA (GPIO 10)
28
I2C0_SCL (GPIO 24)
29
GPIO 11
30
GND
31
GPIO 12
32
PWM0 (GPIO 25)
33
PWM1 (GPIO 13)
34
GND
35
I2S_WS_SYNC (GPIO 14)
36
UART_CTS (GPIO 26)
37
GPIO 15
38
I2S_SDI (GPIO 27)
39
GND
40
I2S_SDO (GPIO 28)
Note: As PWM is designed under PSE, please ensure your hardware CPU is J6426, as
N6210 does not support PSE.
