Asus DSL-N14U User Manual

37

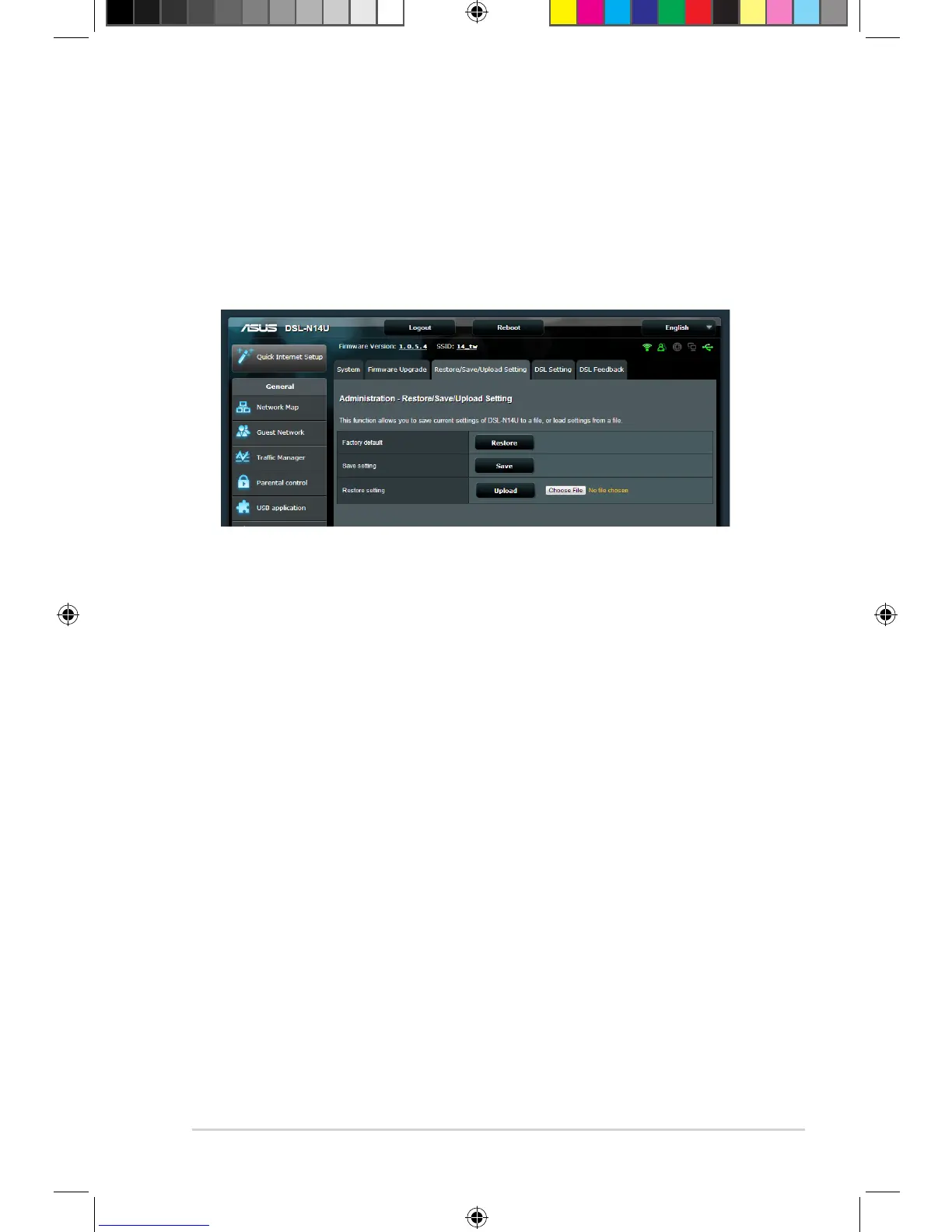

Restoring/Saving/Uploading settings
To restore/save/upload wireless router settings:
1. Click Administration on the left navigation panel.
2. Click the Restore/Save/Upload Setting tab.
3. Select a task from the configuration options:
• To restore to default factory settings, click Restore, and click
OK once prompted.
• To save the current system settings, click Save, navigate to
the folder where you intend to save the file and click Save.
• To restore from a saved system settings file, click Browse to
locate your file, then click Upload.
e8760_dsl-n14u_manual.indd 37 12/23/13 9:18:17 AM

Asus DSL-N14U Specifications

General

Flash memory	16 MB
Internal memory	64 MB
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Bandwidth	2.4 GHz
USB version	2.0
Input current	1 A
Rack mounting	-
xDSL connection	Yes
Dimensions (WxDxH)	123 x 190 x 35 mm
Maximum data transfer rate	300 Mbit/s
Compatible operating systems	Windows® 8.1 , 32bit/64bit\\r Windows® 8 , 32bit/64bit\\r Windows® 7 , 32bit/64bit\\r Windows® Vista , 32bit/64bit\\r Windows® XP , 32bit/64bit\\r Mac OS X\\r Linux
WLAN data transfer rates supported	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, 300 Mbit/s
Bundled software	ADSL Setting Wizards\\r Device Discovery\\r Firmware Restoration\\r Printer Setup Utility
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Security algorithms	128-bit WEP, 64-bit WEP, WPA2-PSK, WPS
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
LED indicators	DSL, LAN, Power, USB, WLAN
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	190 mm
Width	123 mm
Height	35 mm
Weight	314 g
