1-8 Chapter 1: Product introduction

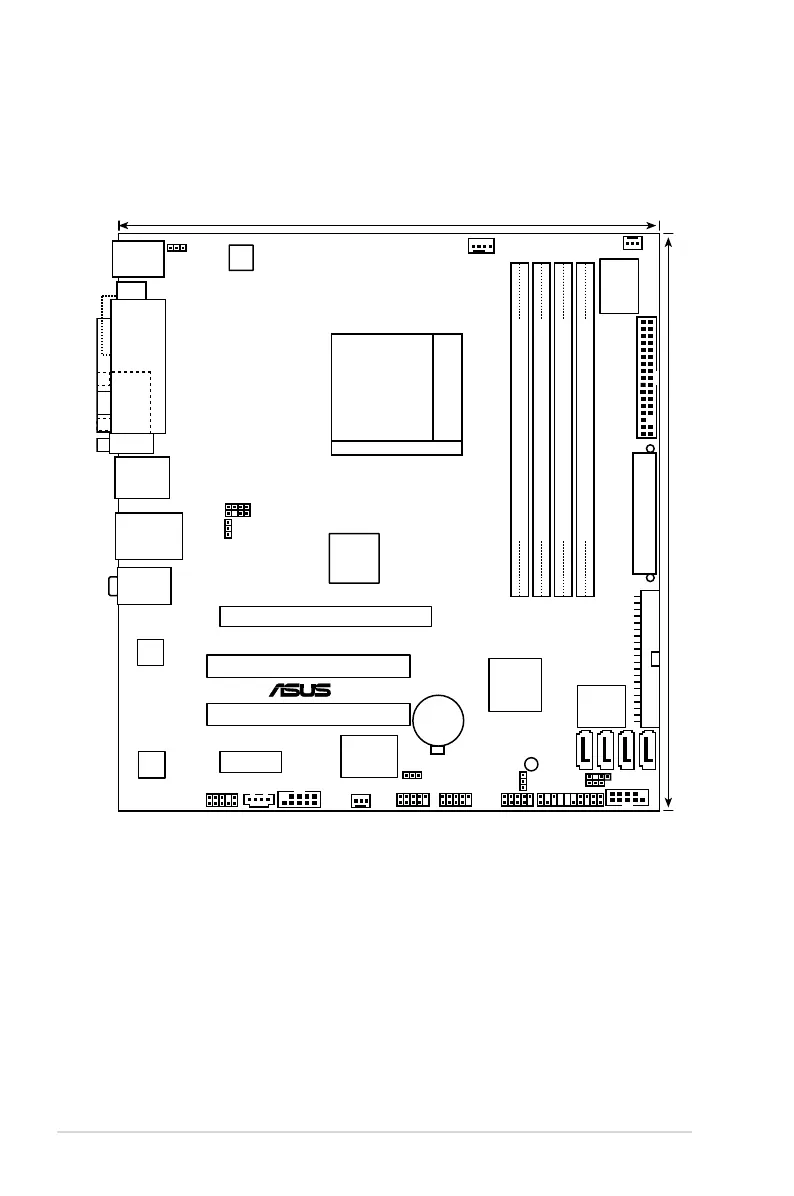

1.5.1 Motherboard layout
1.5 Motherboard overview
Bottom:Mic In
Center:Line Out
Top:Line In
PANEL
M2A-VM HDMI
®
CR2032 3V
Lithium Cell
CMOS Power
AAFP
CHASSIS
22.9cm (9in)
24.5cm (9.6in)
Socket AM2
DDR2 DIMM_A1 (64 bit,240-pin module)
DDR2 DIMM_B1 (64 bit, 240-pin module)
DDR2 DIMM_B2 (64 bit,240-pin module) DDR2 DIMM_A2 (64 bit,240-pin module)
1394
F_USB34
IE1394_2
FLOPPY
Super
I/O
8Mb
BIOS
PS/2KBMS
T: Mouse
B: Keyboard
LAN1_USB12
CD
ALC883
PCIEX16
PCIEX1_1
PCI1
PCI2
CLRTC
USBPW5-8
USB56
CHA_FAN
ATX12V
SB_PWR
DVI
PARALLEL PORT
VGA
USBPW1-4
KBPWR
YUV
SPDIF_OUT
ATI
SB600
AMD
690G
EATXPWR
COM1
PWR_FAN
CPU_FAN
RTL8111B
USB78 USB910
USBPW910
VIA
VT6308P
PRI_IDE
SATA4 SATA2 SATA3 SATA1

Asus M2A-VM HDMI Specifications

General

ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Maximum number of SMP processors	1
USB 2.0 connectors	3
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC883
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II ASUS LiveUpdate Anti Virus (OEM)
Maximum graphics card memory	256 MB
Special features	ASUS MyLogo2 ASUS CrashFreeBIOS3 ASUS EZ Flash2 ASUS Q-Fan ASUS O.C Profile
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PXE, WOR by PME
Controller interface type	Serial ATA I/II
Controller 2nd interface type	UltraDMA 133/100
Networking features	Gigabit Ethernet
BIOS memory size	64 Mbit
RAID levels	0, 1

Weight and Dimensions

Depth	229 mm
Width	245 mm
