Asus M2A-VM HDMI User Manual

ASUS M2A-VM HDMI 1-33

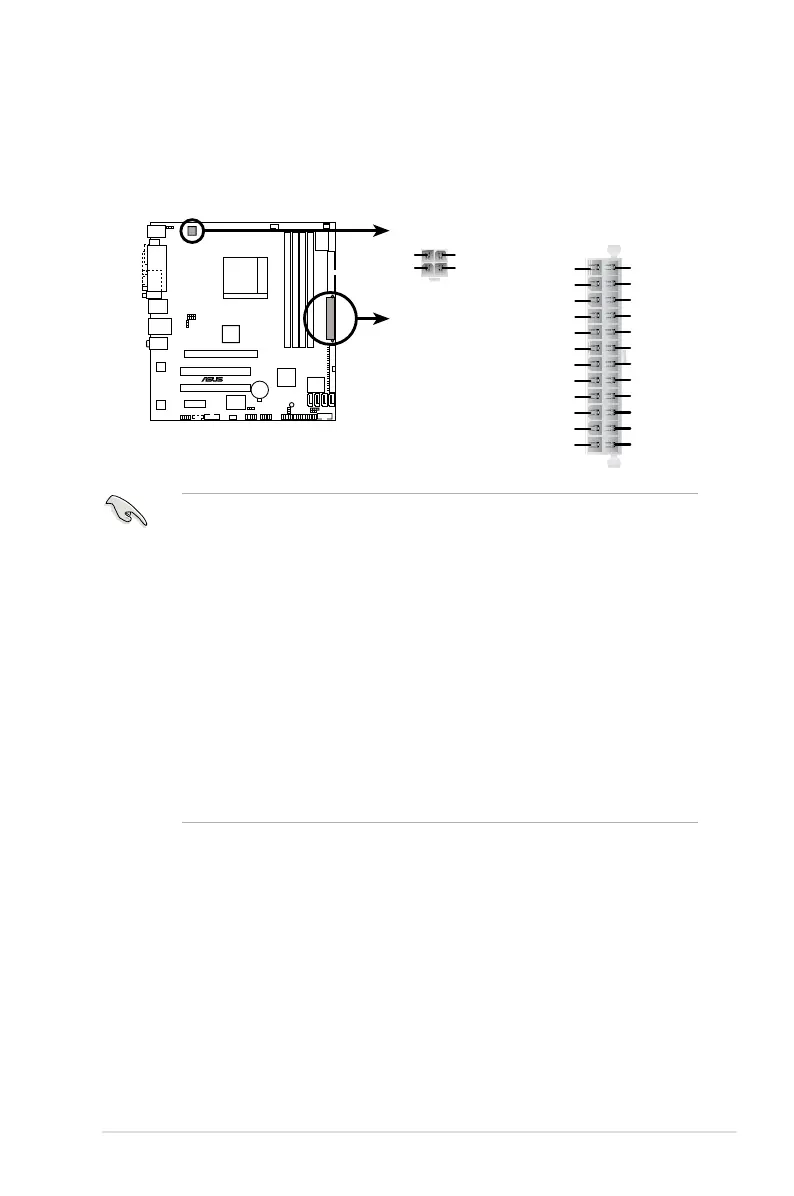

13. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
These connectors are for an ATX power supply. The plugs from the power
supply are designed to t these connectors in only one orientation. Find the
proper orientation and push down rmly until the connectors completely t.
• We recommend that you use an ATX 12 V Specication 2.0-compliant
power supply unit (PSU) with a minimum of 300 W power rating. This PSU
type has 24-pin and 4-pin power plugs.
• If you intend to use a PSU with 20-pin and 4-pin power plugs, make sure
that the 20-pin power plug can provide at least 15 A on +12 V and that
the PSU has a minimum power rating of 300 W. The system may become
unstable or may not boot up if the power is inadequate.
• Do not forget to connect the 4-pin ATX +12 V power plug; otherwise, the
system will not boot up.
• We recommend that you use a PSU with higher power output when
conguring a system with more power-consuming devices. The system
may become unstable or may not boot up if the power is inadequate.
• You must install a PSU with a higher power rating if you intend to install
additional devices.
M2A-VM HDMI
®
M2A-VM HDMI ATX power connectors
EATXPWRATX12V
+12V DC
GND
+12V DC
GND
+3 Volts
+3 Volts
Ground
+5 Volts
+5 Volts
Ground
Ground
Power OK
+5V Standby
+12 Volts
-5 Volts
+5 Volts
+3 Volts
-12 Volts
Ground
Ground
Ground
PSON#
Ground
+5 Volts
+12 Volts
+3 Volts
+5 Volts
Ground

Asus M2A-VM HDMI Specifications

General

ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Maximum number of SMP processors	1
USB 2.0 connectors	3
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC883
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II ASUS LiveUpdate Anti Virus (OEM)
Maximum graphics card memory	256 MB
Special features	ASUS MyLogo2 ASUS CrashFreeBIOS3 ASUS EZ Flash2 ASUS Q-Fan ASUS O.C Profile
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PXE, WOR by PME
Controller interface type	Serial ATA I/II
Controller 2nd interface type	UltraDMA 133/100
Networking features	Gigabit Ethernet
BIOS memory size	64 Mbit
RAID levels	0, 1

Weight and Dimensions

Depth	229 mm
Width	245 mm
