Asus M2N-X User Manual

1-6 Chapter 1: Product introduction

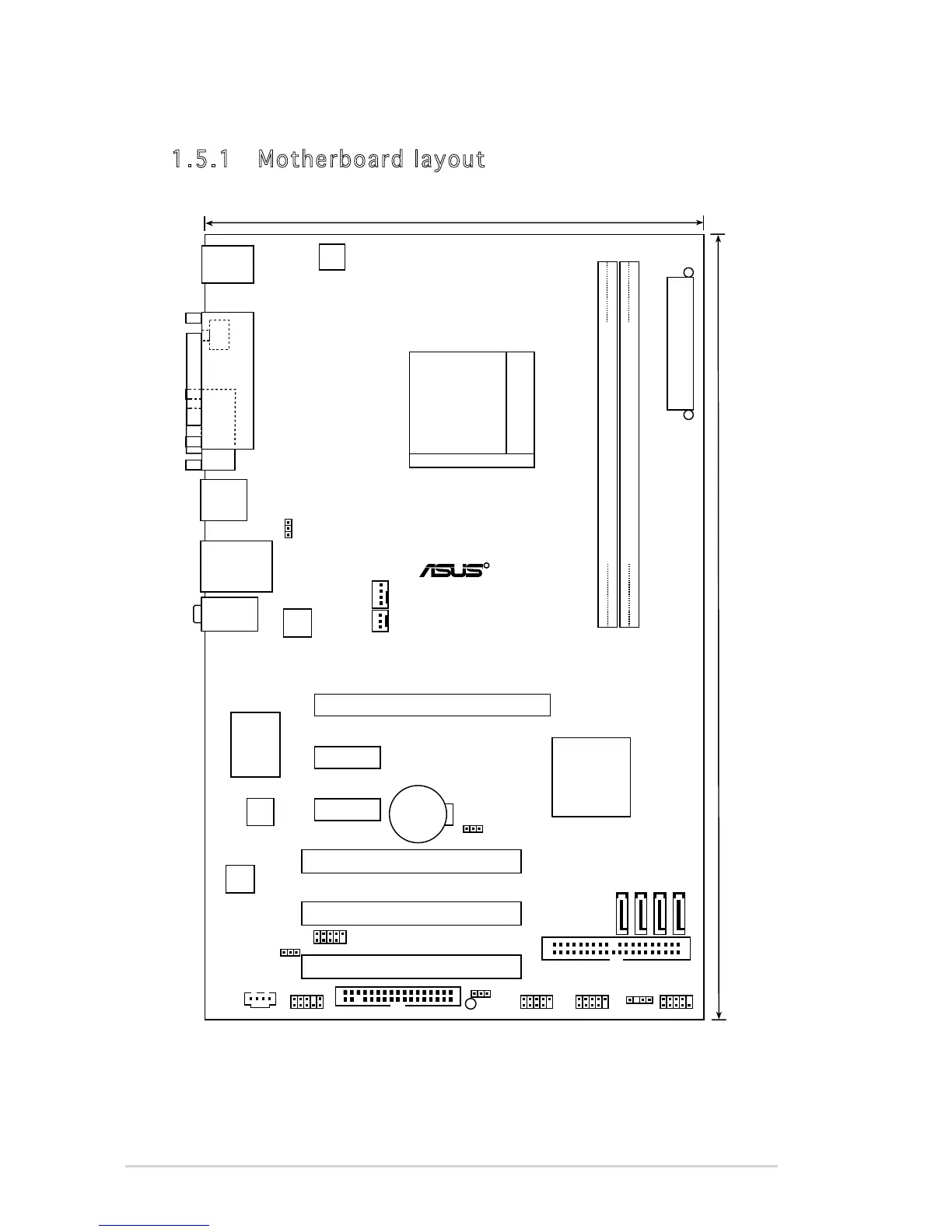

1.5.1 Motherboard layout
1.5 Motherboard overview
19.3cm(7.6in)
30.5cm(12.0in)
M2N-X
DDR2 DIMM_A1 (64 bit,240-pin module) DDR2 DIMM_B1 (64 bit,240-pin module)
EATXPWR
PWR_FAN
CPU_FAN
Socket AM2
ATX12V
AUDIO
LAN_USB12
USB34
SPDIF_O1
PARALLE PORT
COM1
PS/2KBMS
T: Mouse
B: Keyboard
PCI2
PCI1
PCI3
PCIEX16
PCIEX1_1
PCIEX1_2
Nvidia
MCP65S
SATA4 SATA3 SATA2 SATA1
FLOPPY
PRI_IDE
SPEAKER
F_PANELAAFP USB78USB910
USB56
CLRTC
USBPW7-10
USBPW56
SB_PWR
R
CD
CR2032 3V
Lithium Cell
CMOS Power
4Mb
BIOS
ALC883
PS2_USBPW1-4
Super I/O
10/100
PHY

Asus M2N-X Specifications

General

ECC	Yes
Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
CPU fan connector	No
Number of SATA connectors	4
Number of EATX power connectors	1
Manageability features	WOR (Ring), WOL/WOR (PME), PXE
Controller interface type	Serial ATA
Controller 2nd interface type	UltraDMA 100/66/33
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Motherboard form factor	ATX
Compatible operating systems	Windows Vista/XP/2000
Bundled software	Drivers ASUS PC Probe II ASUS Update NVIDIA MediaShield RAID
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	193 mm
Width	305 mm
