ASUS M2N-X 1-23

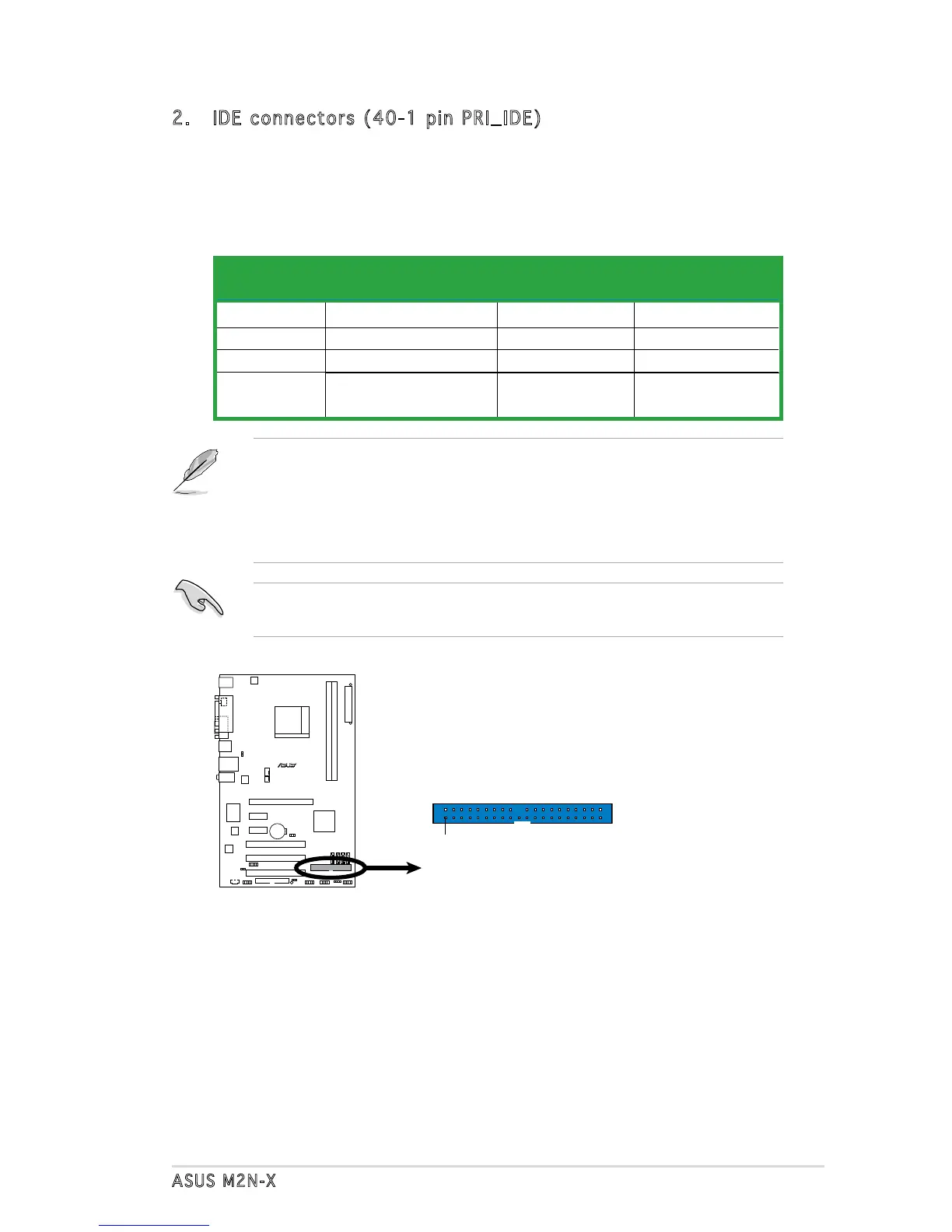

2. IDE connectors (40-1 pin PRI_IDE)
The onboard IDE connectors are for Ultra DMA 133/100/66/33
signal cable(s). There are three connectors on each Ultra DMA
133/100/66/33 signal cable: blue, black, and gray. Connect the blue
connector to the motherboard’s IDE connector, then select one of the
following modes to congure your device(s).
• Pin 20 on the IDE connector is removed to match the covered hole
on the Ultra DMA cable connector. This prevents incorrect insertion
when you connect the IDE cable.
• Use the 80-conductor IDE cable for Ultra DMA 133/100/66/33 IDE
devices.
If any device jumper is set as “Cable-Select,” make sure all other device
jumpers have the same setting.
Black or gray
Drive jumper Mode Cable
setting of device(s) connector
Single device Cable-Select or Master - Black
Two devices Cable-Select Master Black
Slave Gray
Master Master
Slave Slave
M2N-X
M2N-X IDE Connector
NOTE: Orient the red markings
(usually zigzag) on the ID
ribbon cable to PIN 1.
PRI_IDE
PIN1

Asus M2N-X Specifications

General

ECC	Yes
Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
CPU fan connector	No
Number of SATA connectors	4
Number of EATX power connectors	1
Manageability features	WOR (Ring), WOL/WOR (PME), PXE
Controller interface type	Serial ATA
Controller 2nd interface type	UltraDMA 100/66/33
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Motherboard form factor	ATX
Compatible operating systems	Windows Vista/XP/2000
Bundled software	Drivers ASUS PC Probe II ASUS Update NVIDIA MediaShield RAID
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	193 mm
Width	305 mm
