ASUS M2N-X 1-25

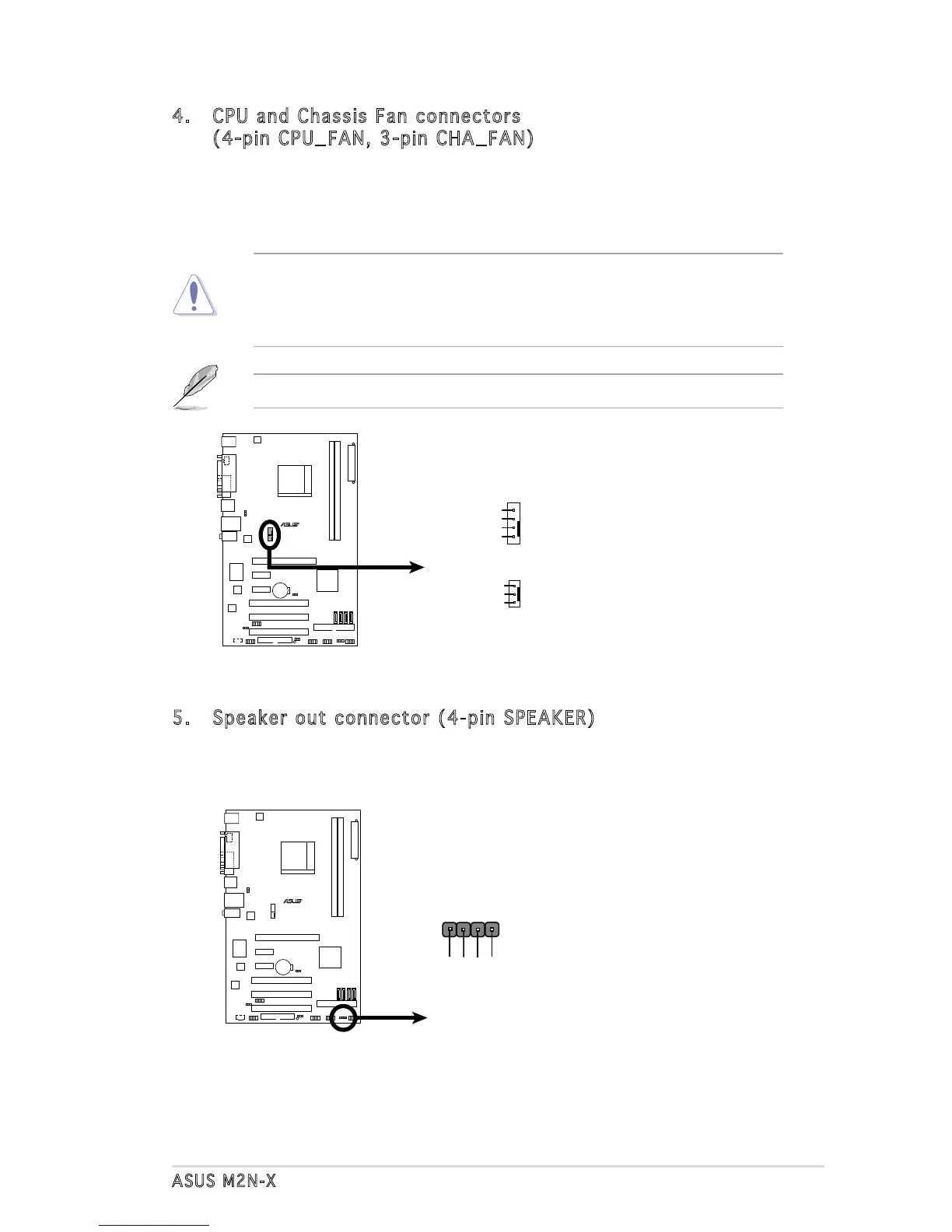

4. CPU and Chassis Fan connectors
(4-pin CPU_FAN, 3-pin CHA_FAN)
The fan connectors support cooling fans of 350mA~740mA (8.88W
max.) or a total of 1A~2.22A (26.64W max.) at +12V. Connect the fan
cables to the fan connectors on the motherboard, making sure that the
black wire of each cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors.
Insufcient air ow inside the system may damage the motherboard
components. These are not jumpers! DO NOT place jumper caps on the
fan connectors.
5. Speaker out connector (4-pin SPEAKER)
This connector is for the case-mounted speaker and allows you to hear
system beeps and warnings.
Only CPU Fan connector supports Q-Fan function.
M2N-X
M2N-X Fan Connectors
CPU_FAN
GND
CPU FAN PWR
CPU FAN IN
CPU FAN PWM
CHA_FAN
GND
Rotation
+12V
M2N-X
M2N-X Speaker Out Connector
SPEAKER
+5V
GND GND
Speaker Out
1

Asus M2N-X Specifications

General

ECC	Yes
Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
CPU fan connector	No
Number of SATA connectors	4
Number of EATX power connectors	1
Manageability features	WOR (Ring), WOL/WOR (PME), PXE
Controller interface type	Serial ATA
Controller 2nd interface type	UltraDMA 100/66/33
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Motherboard form factor	ATX
Compatible operating systems	Windows Vista/XP/2000
Bundled software	Drivers ASUS PC Probe II ASUS Update NVIDIA MediaShield RAID
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	193 mm
Width	305 mm
